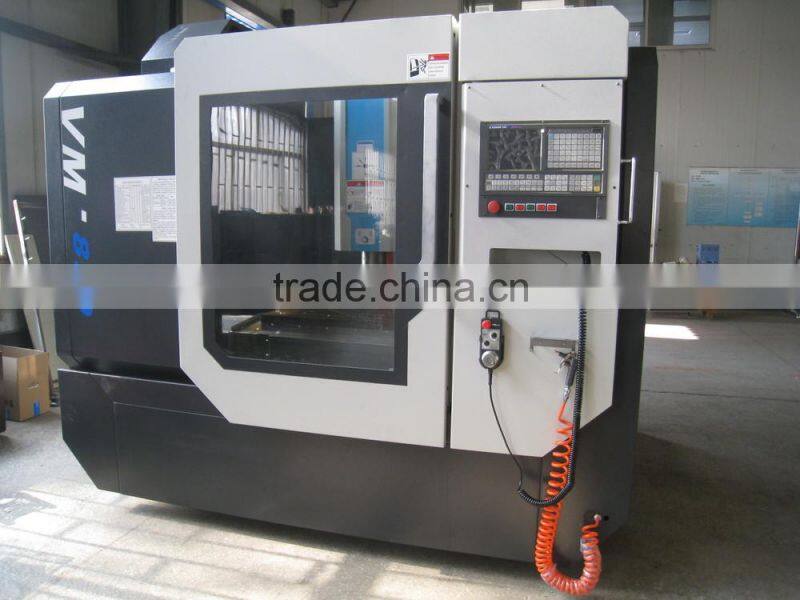

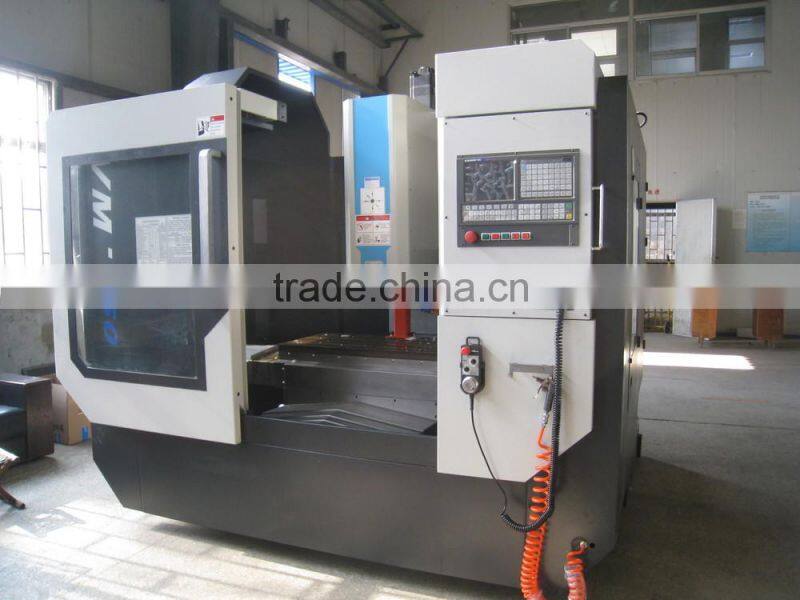

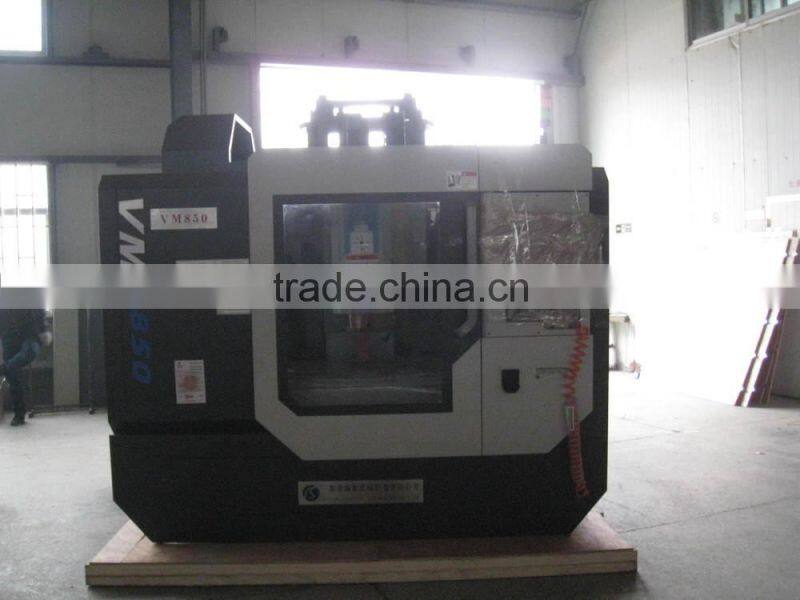

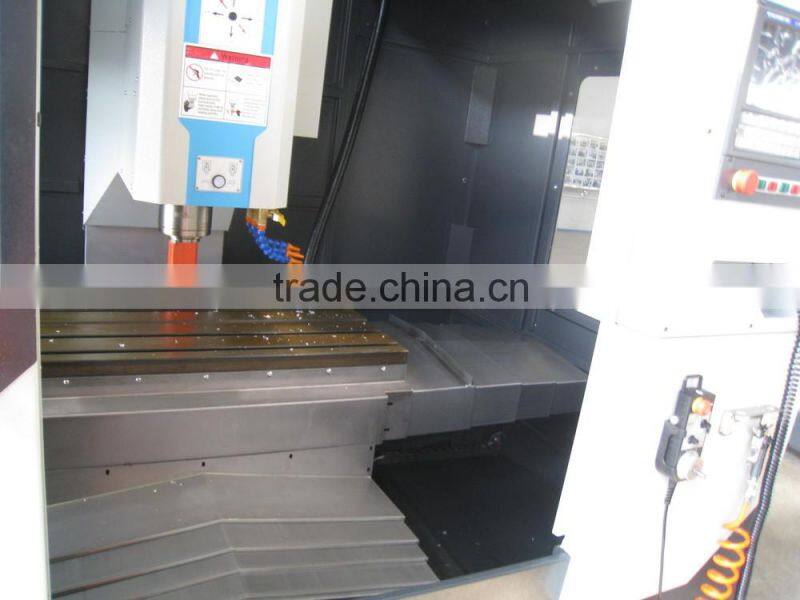

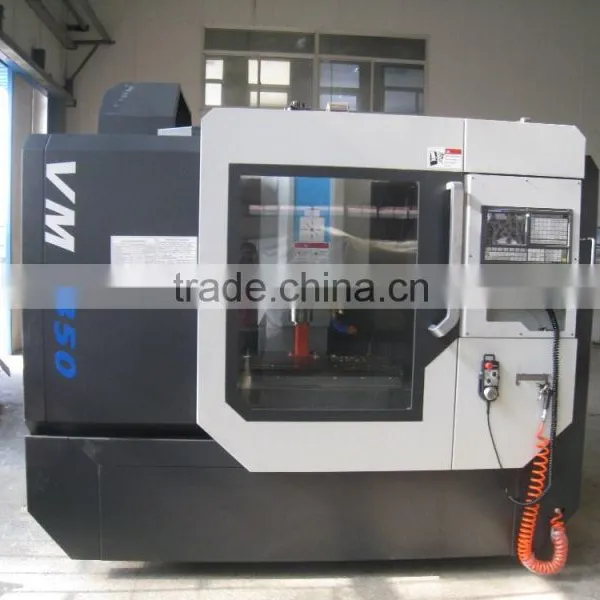

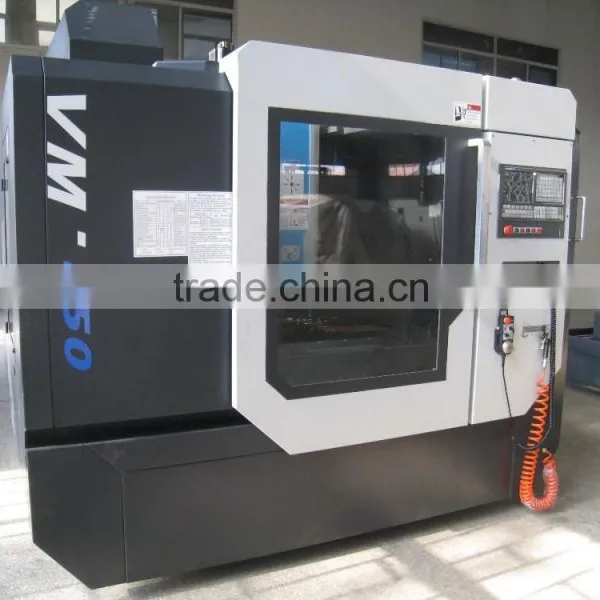

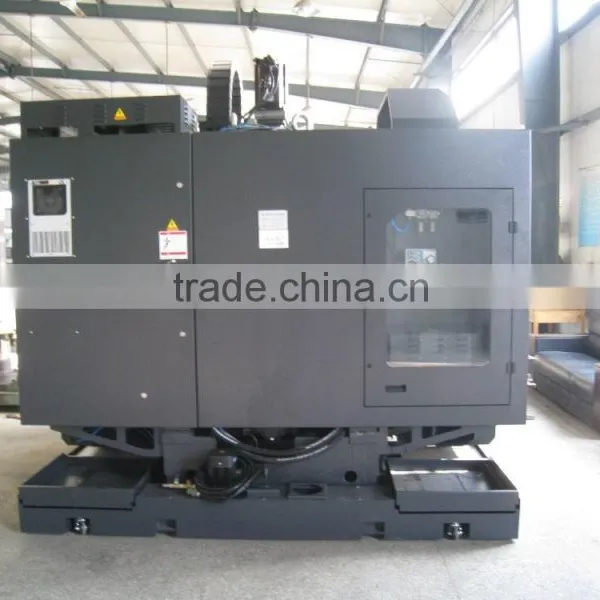

VM850 linear guide rail siemens 4 axis cnc milling machine
1. Specifications
VM850
Specifications |
Units |
VM850 |
Table travel (X,Y,Z) |
mm |
800×500×500 |
Table size |
mm |
1000*500 |
Number/Width/Distance of T-slot |
mm |
5-18-100 |
Max. load of table |
kg |
500 |
Distance from spindle nose to table surface |
mm |
150-650 |
Distance from spindle axis to column guideway |
mm |
560 |
Rapid feed speed |
m/min |
18/16/16 |
Feed speed |
mm/min |
2-4000 |
Taper of spindle |
|
BT40 |
Spindle speed range |
rpm |
40-6000 |
Spindle motor power |
kW |
AC servo 7.5 |
Positioning accuracy |
mm |
±0.02 |
Repeat positioning accuracy |
mm |
±0.01 |
Overall dimension |
mm |
2450×2200×2300 |
Machine weight |
kg |
4650 |
Standard configurations:

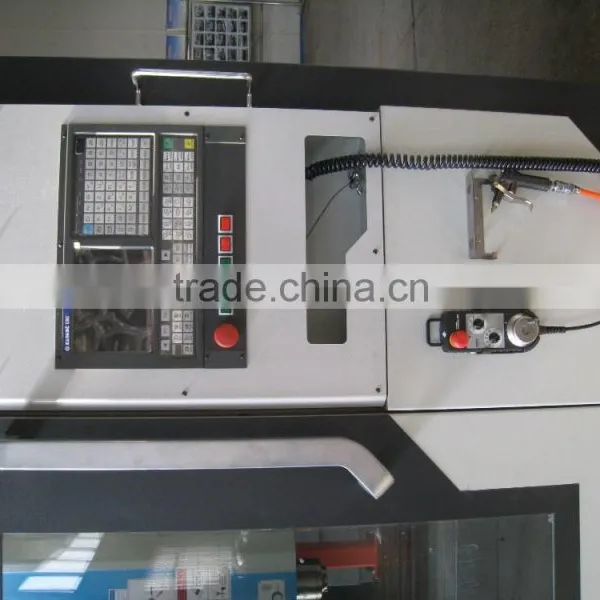

GSK/KND2000M/HUAZHONG 22M Siemens 808D controller system
bearing:NSK 8000rpm speed
strong current:Schneider
RS232 communication interface
Large flow cooling pump
Hardened rail
Ball screw: Taiwan's precision ball screw.
protection: full outer stainless steel inner defense and protection.
Optional:
FANUC 0i mateMD or Siemens 828D.
Geneva Type tool changer mechanical arm tool changers
Forth axis
Auto chip conveyor
3.machine’s working condition and others
Voltage:380V±10% 50Hz±1%
Temperature:-10 ~ 40°C humidity:≤80% air pressure:0.6Mpa
Machine lubricating oil: summer 32# winter 40#
Taian Haishu Machinery CO.,LTD
welcome to our company----------Taian Haishu Machinery CO.,LTD in China
