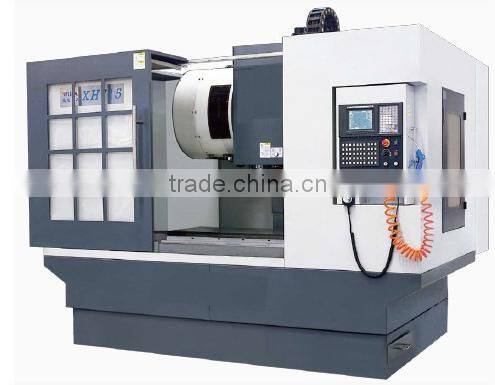

XK715 high quality low price cnc milling machine 5-axis with CE from Taian Haishu
1. Specifications
Specifications | Units | XK715 |
Table travel (X,Y,Z) | mm | 1000×510×510 |
Table size | mm | 1100×510 |
Number/Width/Distance of T-slot | mm | 5-18-100 |
Max. load of table | kg | 800 |
Distance from spindle nose to table surface | mm | 120-630 |
Distance from spindle axis to column guideway | mm | 600 |
Taper of spindle |
| BT40 |
Spindle speed range | rpm | 60-6000 |
Spindle motor power | kW | 7.5/11 |
Rapid feed speed | mm/min | 12000 |
Cutting feed speed | mm/min | 2.5-4000 |
Positioning accuracy | mm | ±0.015 |
Repeat positioning accuracy | mm | ±0.0075 |
Overall dimension | mm | 2900×2200×2620 |
Machine weight | kg | 5370 |
Standard configurations:
GSK/KND2000M/HUAZHONG 22M Siemens 808D controller system
bearing:NSK 8000rpm speed
strong current:Schneider
RS232 communication interface
Large flow cooling pump
Hardened rail
Ball screw: Taiwan's precision ball screw.
protection: full outer stainless steel inner defense and protection.
Optional:
FANUC 0i mateMD or Siemens 828D.
Geneva Type tool changer mechanical arm tool changers
Forth axis
Auto chip conveyor
3.machine’s working condition and others
Voltage:380V±10% 50Hz±1%
Temperature:-10 ~ 40°C humidity:≤80% air pressure:0.6Mpa
Machine lubricating oil: summer 32# winter 40#
Taian Haishu Machinery CO.,LTD
welcome to our company----------Taian Haishu Machinery CO.,LTD in China
