CNC250A double spindle five axis cnc lathe machine price

Name: CNC250A double spindle five axis cnc lathe machine price
Brand: HaiShu
Availability: InStock

FOB Price

US$ 78,700 - 115,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HaiShu		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Packaging Details

standard exported package,standard wooden case

Product Description

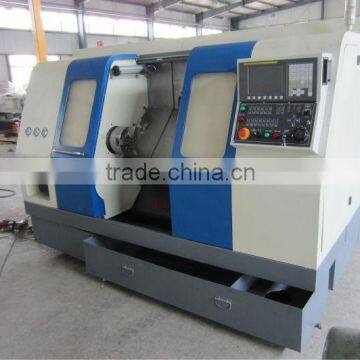

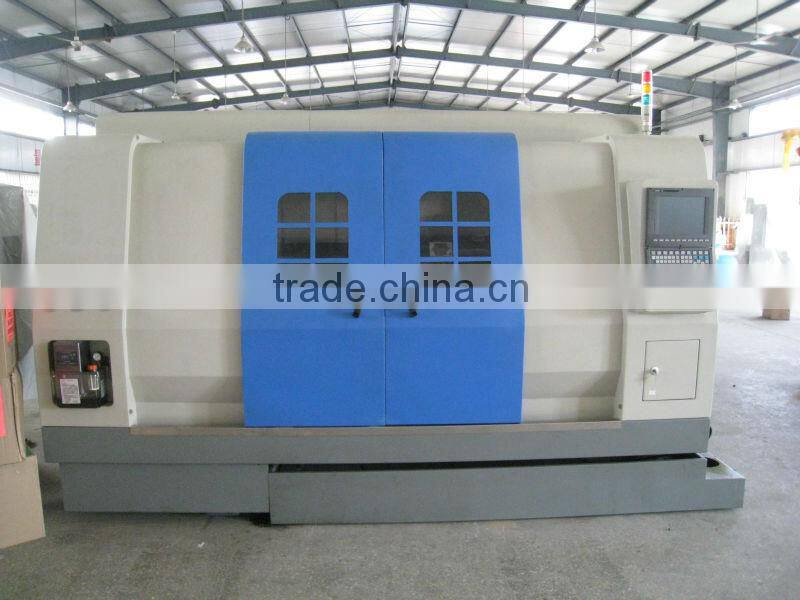

CNC250A double spindle five axis cnc lathe machine price

CNC250A Main technical parameters:

No.	Item	Unit	parameter
1	Bed maximum turning diameter	mm	250
2	Maximum turning length Z1	mm	350/450/550
3	Maximum turning diameter	mm	160
4	Spindle nose type and code	mm	A6
5	Hydraulic chuck		160/100mm
6	Front spindle bore taper		1:20
7	Spindle bore	mm	40
8	Maximum load-bearing chucked components	kg	100
10	2 - servo spindle motor speed	mm/min	0-8000
11	Rapid traverse X / Z	mm/min	40000
12	CS1; CS2 main servo motor power	kW	5.5
13	Turret power axis max speed rapidly	rpm	6000-12000
14	X1;servo motor maximum torque	N.m	10
15	Z1;Z2 servo motor maximum torque	N.m	15
16	Power Specifications	v	380±10%. 50Hz±1Hz
17	Carrier transfer time (one station)	s	1.6(Horizontal 12)
18	Carrier transfer repeat positioning accuracy	mm	0.005”
19	X1 axis travel	mm	150
20	Z1-axis travel	mm	350/450/550
21	The Z2 axis Vice spindle travel	mm	650/750/850
22	Biaxial dynamic docking concentricity	mm	0.004

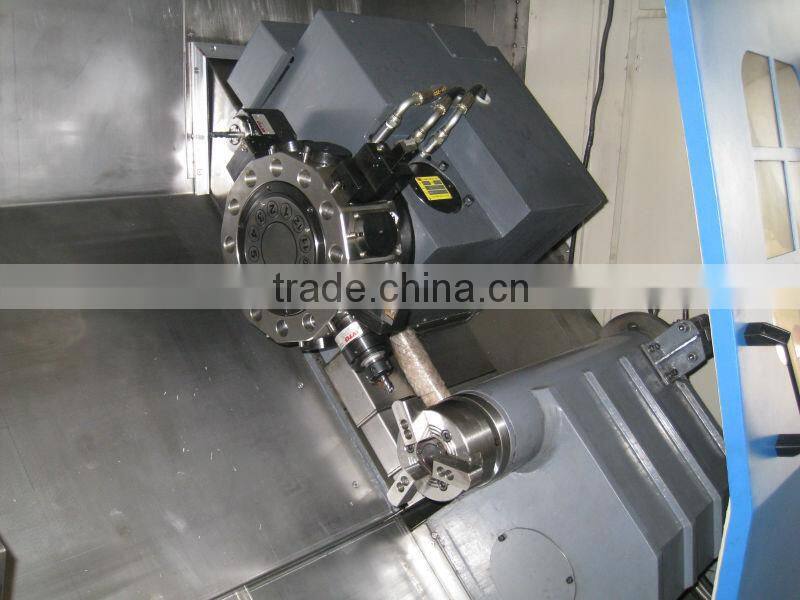

23	Hydraulic servo turret form		Horizontal 12-station power
24	Arbor size	mm	25*25
25	Machine weight	kg	3500
26	Outline dimension(L×W×G)	mm	2100×1350×1750

Standard configuration:
1.Taiwan 10TD control system
2.Hydraulic solid chuck 100
3.Cutting cooling system
4.X.Z axis linear guide P and ball mast C4
5.The spindle unit and motor
6.Horizontal 12 station servo turret
7.Bearing P4
8.Fully enclosed protection system

welcome to our company--------------Taian Haishu Machinery CO.,LTD IN China

Company Profile

Horizontal Lathe Co., Ltd.

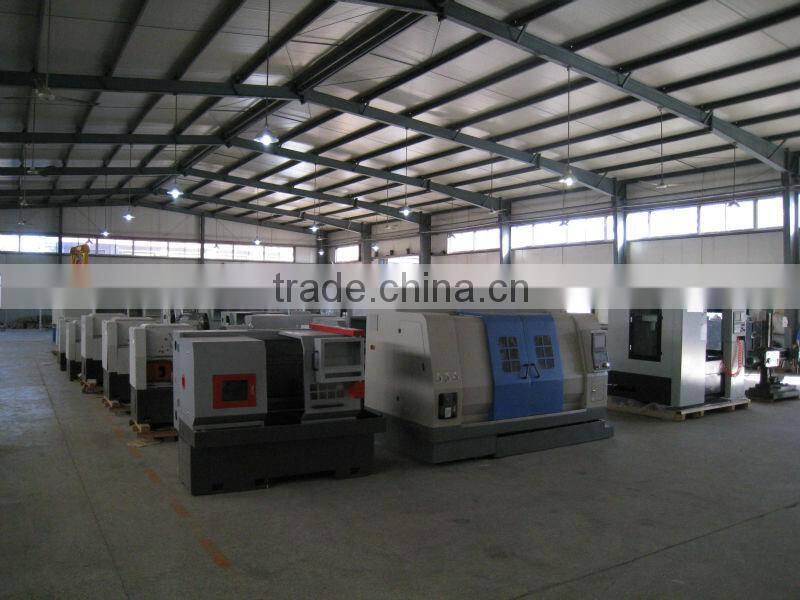

All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
