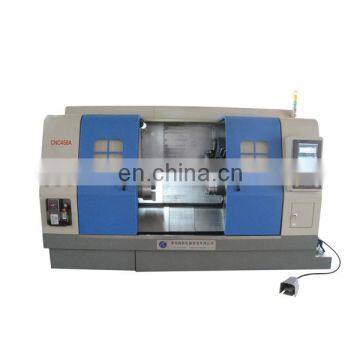

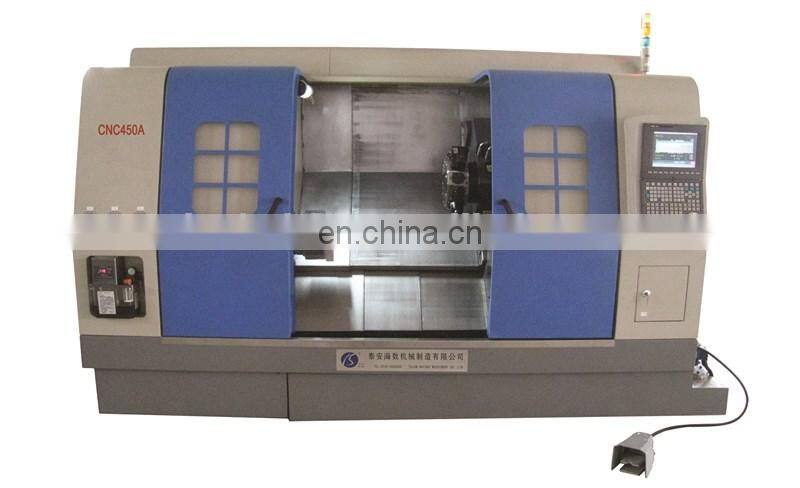

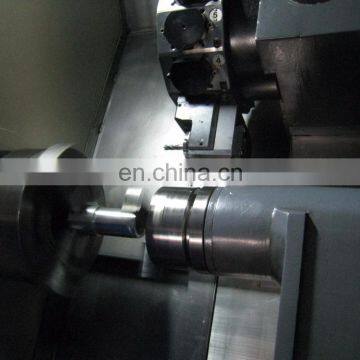

Double spindle CNC turning milling machine tool price CNC turning machine specification CNC450A
1. Main features
The machine is a double spindle, so the two ends of the workpiece can be automatically.
Transferred and held by two-axis chuck.

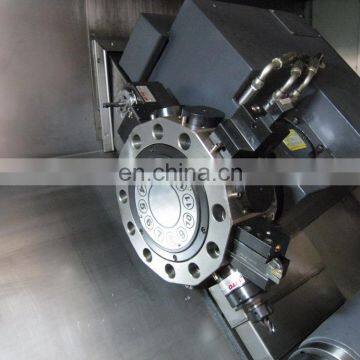

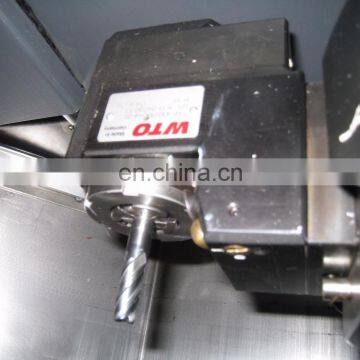

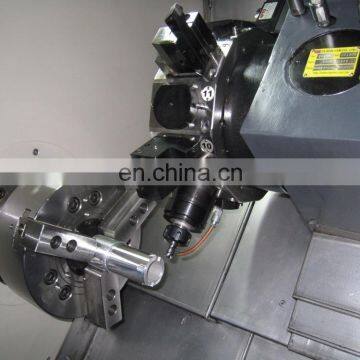

12-position turret, turning milling automatic processing.

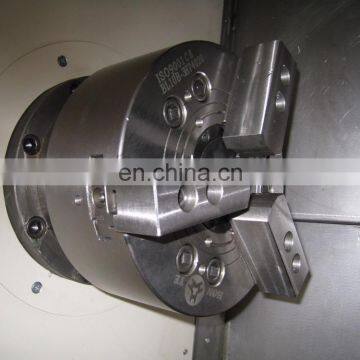

Dual hydraulic chuck, the workpiece clamping is fast and reliable.
2. Main technical parameters:
No. | Item | Unit | specifications |
1 | Max.rotation diameter on lathe’ body | mm | 450 |
2 | Max.workpiece length | mm | 750 |
3 | Max.turning diameter | mm | 400 |
4 | Spindle nose type and code | mm | A8 |
5 | Hydraulic chuck 1 | mm | Φ250(10") |
6 | Hydraulic chuck 2 | mm | Φ250(10") |
7 | Front spindle bore taper |
| 1:20 |
8 | Spindle bore | mm | 80 |
9 | 2- Servo spindle speed range | mm/min | 0-4000 |
10 | X/Z/B Rapid traverse | mm/min | 40000 |
11 | Cs1,Cs2 main servo motor power | kW | 11 |
12 | C-axis(Turret power axis) motor power | kw | 5.5 |
13 | X/Z-axis motor max.torque | N.m | 10 |
14 | Y-axis travel(optional) | mm | +35/-35 |
15 | B-axis(sub-spindle) motor max.torque | N.m | 15 |
16 | Power specifications | v | 380±10%. 50Hz±1Hz |
17 | Turret transfer time (one station) | s | 1.6(12) |
18 | Turret transfer repeat positioning accuracy | mm | 0.005" |
19 | X-axis travel | mm | 250 |
20 | Z-axis travel | mm | 800 |
21 | B-axis (sub-spindle) travel | mm | 1200 |
22 | C-axis(Turret power axis) max.speed | rpm | 6000 |
23 | Biaxial dynamic docking concentricity | mm | 0.005 |
24 | Hydraulic servo turret form |
| Horizontal 12-station servo power turret |
25 | Turret cylinder clamping force | kg | 4524 |
26 | Turret hydraulic power source | kg | 40 Kg / cm² |
27 | Power tool holder specification | mm | VDI40 DIN5480 |
28 | Knife handle size | mm | 25×25 |
29 | Net weight | kg | 7500 |
30 | Size(L×W×H) | mm | 3100*1650*1900 |
3.Standard configuration
CNC system: GSK
Two servo spindle unit
Two hydraulic center solid chuck
Horizontal 12-station hydraulic servo power turret
3-Axis line rail
Turning cooling system
Automatic lubrication system
The whole protection system
4. Select Configuration
CNC system: SYNTEC, Fanuc, Siemens
Increasing the Y-axis
Two hydraulic hollow chuck
Automatic feeder
Automatic chip conveyor
Automatic pick pieces equipment
Automatic protective door
Loading and unloading robots
Double spindle CNC turning milling machine tool price CNC turning machine specification CNC450A with standard export package
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
Taian Haishu Machinery co.,Ltd. is specialized in design production and sales of CNC machine tools. The leading product is "HAISHU" brand CNC lathe,CNC Turning center, Machining center, etc..
Our company is equipped with the ministry of domestic trade and foreign trade, with independent import and export right. Product best-selling more than 20 domestic provinces and municipalities and autonomous regions, and exported to the US, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Lebanon, Czechoslovakia, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Argentina, Russia, Belarus, Lithuania, Serbia, Tunisia, Bahrain, South Africa, South Korea, India, Indonesia, Malaysia, Thailand, the Philippines, Egypt, Iran, Bangladesh, Iraq, Yemen, Mongolia,etc. more than 45 countries.
We have years of CNC machine tool development and manufacturing experience, in order to "science and technology innovation, good faith service" business philosophy in close cooperation with old and new customers, grow together, common development.
