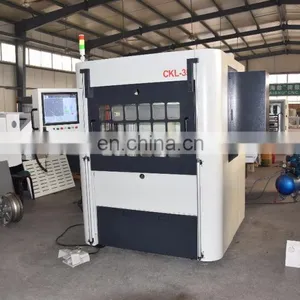

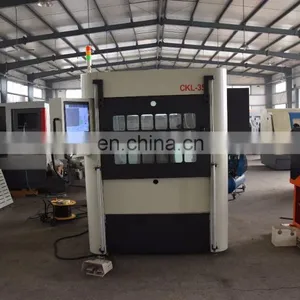

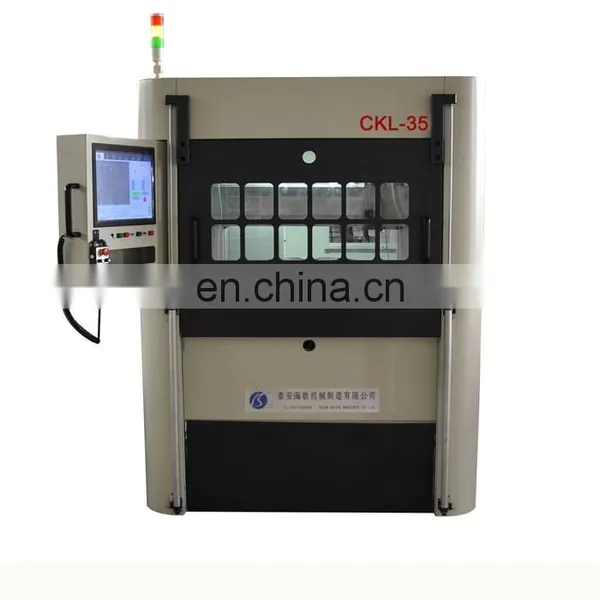

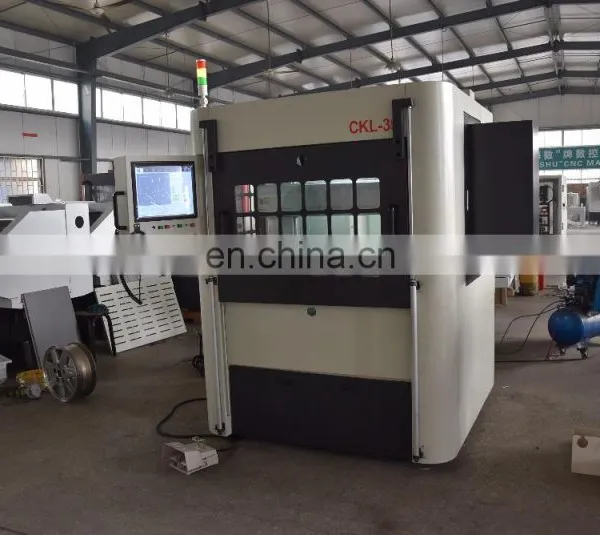

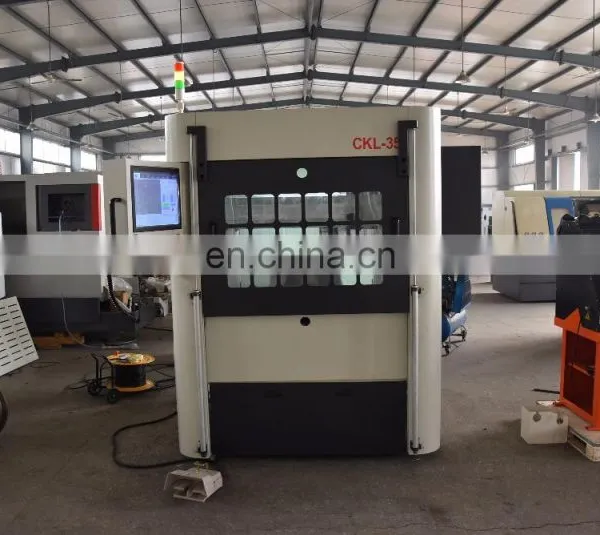

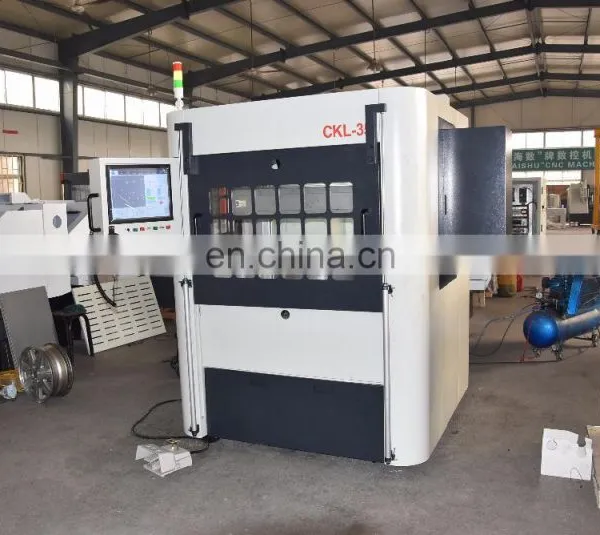

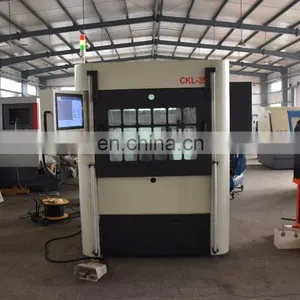

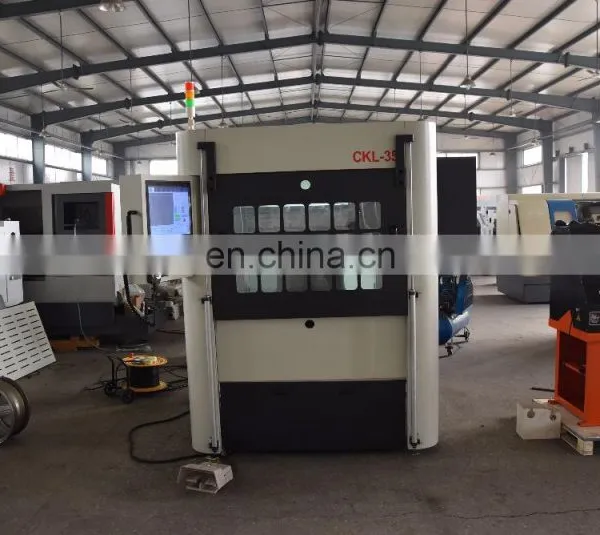

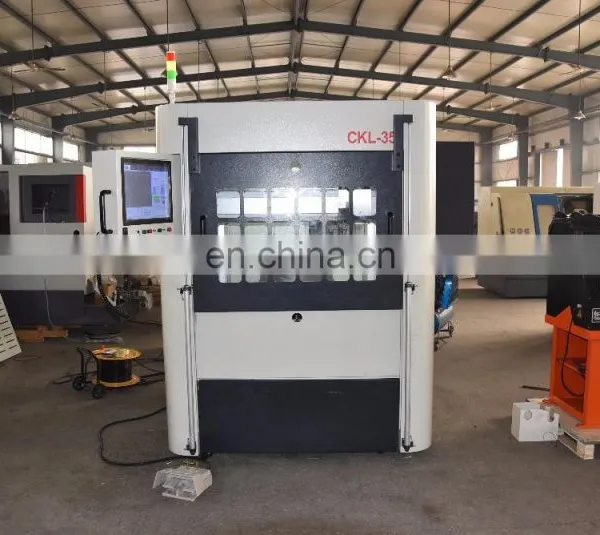

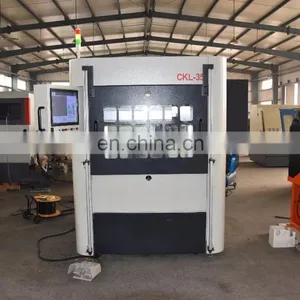

CKL-35 Wheel repair CNC vertical lathe
Technical Parameters
NO. |
Item |
Unit |
Technical Parameters |
CKL-35 | |||
1 |
Max. turning diameter |
mm |
1000 |
2 |
Max. machining wheel diameter |
mm |
900(35") |
3 |
Chuck maximum clamping diameter |
mm |
920 |
4 |
Spindle speed (frequency conversion) |
rpm |
50-1200 |
5 |
Cutting feed rate |
mm/min |
0.1-1000 |
6 |
Turret vertical movement distance |
mm |
450mm |
7 |
Turret horizontal movement distance |
mm |
±470 |
8 |
X-axis fast moving speed |
mm/min |
1500 |
9 |
Z axis fast moving speed |
mm/min |
8000 |
10 |
Turret form |
|
2 station row turret |
11 |
Tool handle section |
mm |
25×25 |
12 |
Main motor power |
kw |
5.5 |
13 |
Feed motor |
|
X: 6Nm Z: 2×6Nm |
14 |
Machine positioning accuracy |
mm |
0.015 |
15 |
Machine repeated positioning accuracy |
mm |
0.012 |
16 |
Machine weight |
kg |
1500 |
17 |
Machine dimensions |
mm |
2000×1550×2000 |
Main features:
The product is Taian HAISHU company exclusively developed a new New special wheel repair lathe. The machine bed as a whole casting vertical structure. Compared with the horizontal structure, the mechanical transmission is more stable, the turning performance is better and the machining precision is higher.
Wheel diameter range is large (Wheel max. diameter 35 "), machine tool area is small, professional is strong, value for money, operation and use more convenient.
Self-developed special wheel repair software. LCD touch screen configuration. Wheel surface measurements and program optimization are done all at once on the machine tool system,So simple, easy to understand and easy to operate.
Laser non-contact measurement or probe contact measurement optional, both can also be configured. Laser measurements enable fast scanning.
The machine with teaching function. The overall surface of the wheel can be repaired, but also can be partially repaired.
After sales, the machine can enjoy the following services:1. Software free upgrade.2. The machine with a network interface, Users can accept remote operation and technical training on the machine's LCD display.
Standard configuration
CNC system: “HAISHU” LCD touch screen CNC system.
Laser probe
Precision spindle unit
X, Z axis linear guide
Precision screw vice
Rail protection system
Automatic lubrication system
Cooling system
Air gun
MPG
Warning lights
Machine cover full protection
Chip removal box
Long jaw chuck
2 Station row turret
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
Our customer from allover the world:
standard exported wooden case
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
