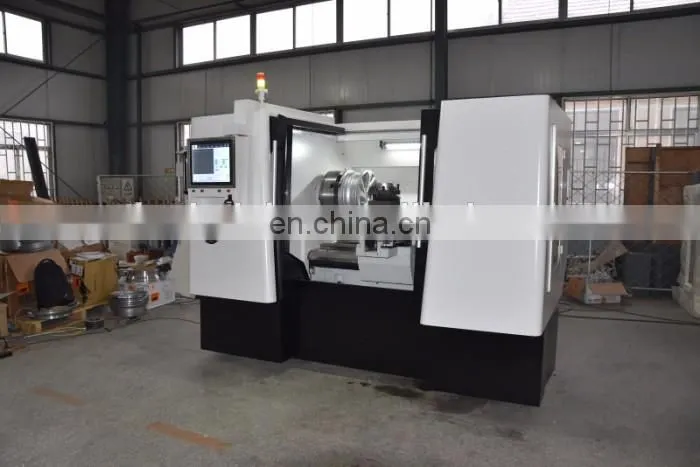

Help CenterAutomatic Probe Cutting Alloy Wheel Repair CNC Lathe CK6180W
Related Products
-
CK6160Q Small Alloy Wheel Rim Cnc Lathe Machine With ChuckUS$ 5,000 - 10,000MOQ: 1 Set -
CK6180W CNC Wheel Lathe Diamond Cutting Machine Automatic Alloy Wheel Rim Repair CNC LathesUS$ 10,000 - 30,000MOQ: 1 Set
-
New Model Brake Disk Drum Lathe T8470US$ 2,500 - 3,500MOQ: 1 Set
-
Boring Drum Lathe T8370US$ 4,000 - 5,000MOQ: 1 Set
-
T8362 Car Boring Brake Drum Disc Lathe MachineUS$ 2,000 - 3,000MOQ: 1 Set

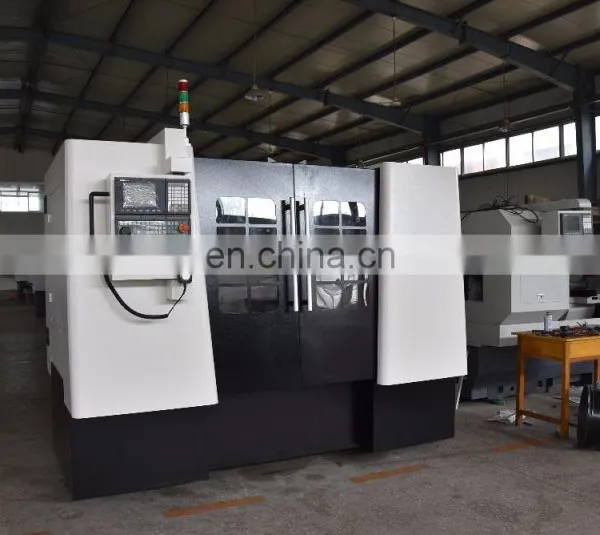

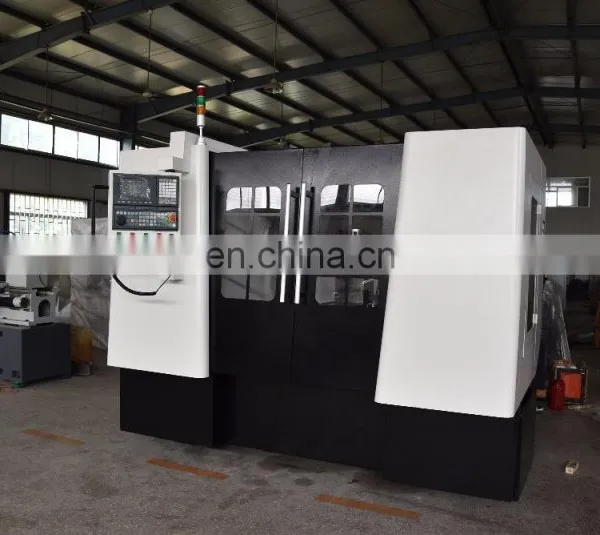

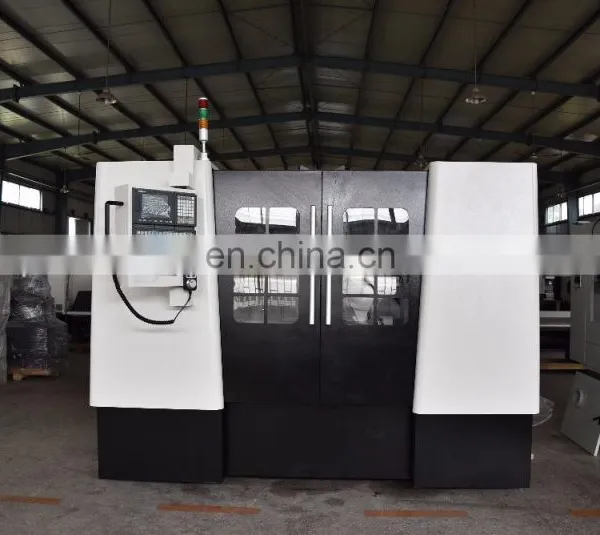

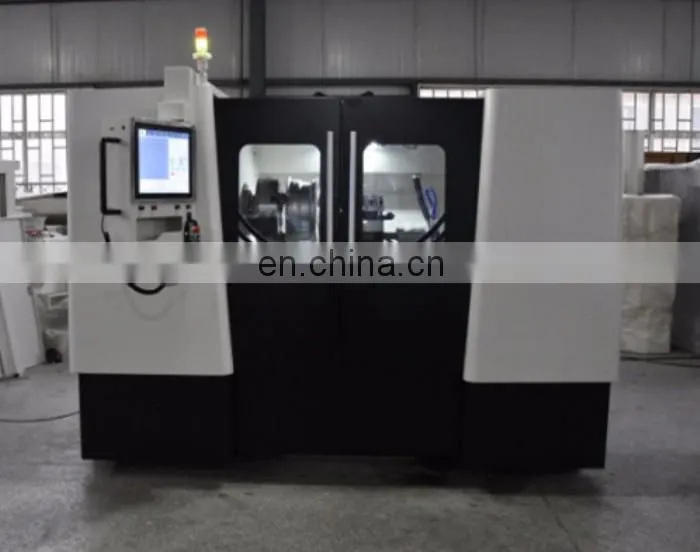

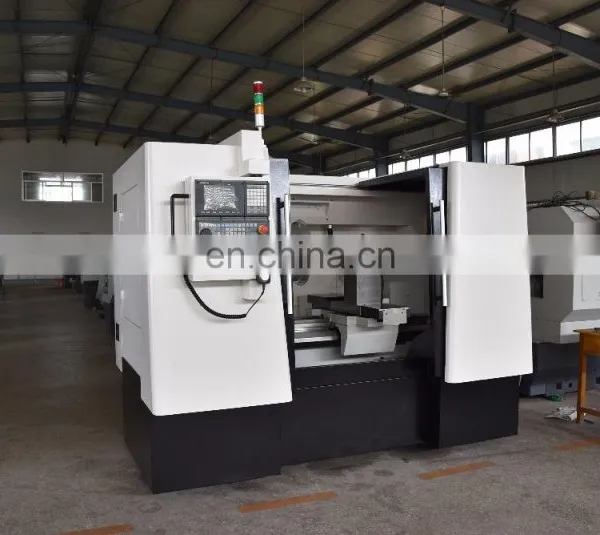

New type CK6180W alloy wheel cnc lathe with touch screen
Technical parameters
Project name |
Unit |
Technical paramaters |
Machining wheel diameter |
Inch |
28” |
Max. workpiece length |
mm |
750 |
Probe measuring direction |
|
X,Z |
Probe needle |
mm |
φ3 × 40, φ6 × 50, or optional |
Machning accuracy |
|
IT6~IT7 |
Surface roughness |
um |
Ra0.8~1.6 |
Main transmission form |
|
Independent spindle; frequency conversion stepless |
Range of spindle speed |
rpm |
150~2000 |
Main motor power |
kw |
11 |
Fast-moving feed |
mm/min |
X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy |
mm |
X - axis:0.01 Z - axis:0.015 |
Standard accessories |
|
4 station electric tool |
Repeat positioning accuracy(mm) |
mm |
0.008 |
Section of turning tool(mm) |
mm |
25×25 |
|
The size of the machine (L×W×H) |
mm |
2685×1750×1980 |
Net weight of the machine(kg) |
3200 |
|
Feature
Laser scanning, fast measurement.
Measurement data and machining programs are automatically stored.
Software independent development,service professional, free upgrade;
Program optimization is manual and automatic.
Teaching function.

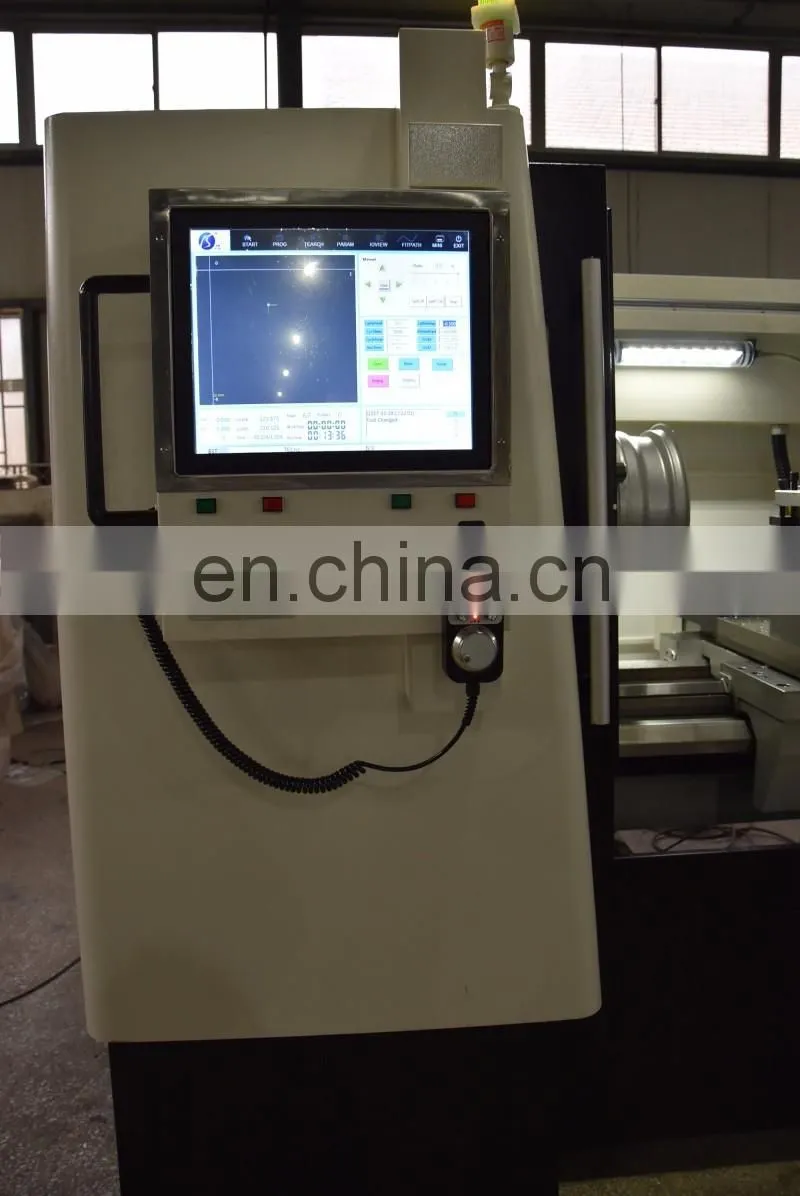

Touch screen operation, support multiple languages.
X / Z axis measurement, complete the wheel's face and circumference machining.
Measuring method: laser or probe (Optional).
High-grade sheet metalshell.
Wheel polished(Optional).
The machine can be customized according to customer requirements.

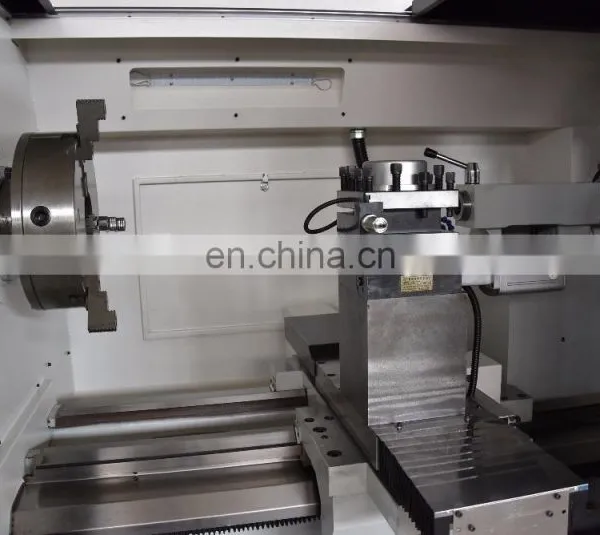

New type Wheel CNC lathe 1. wheel clamping:
New type Wheel CNC lathe 2. laser scanning
New type Wheel CNC lathe 3. program optimization.

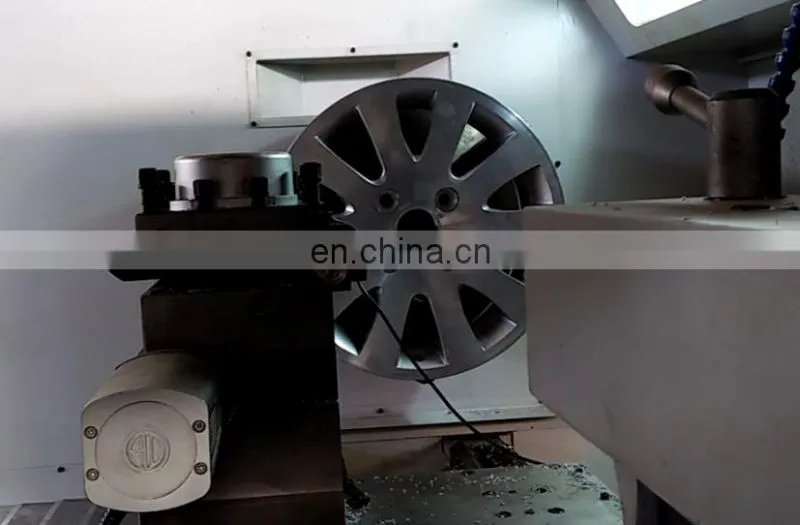

New type Wheel CNC lathe 4. wheel turning and completed
standard exported wooden case
