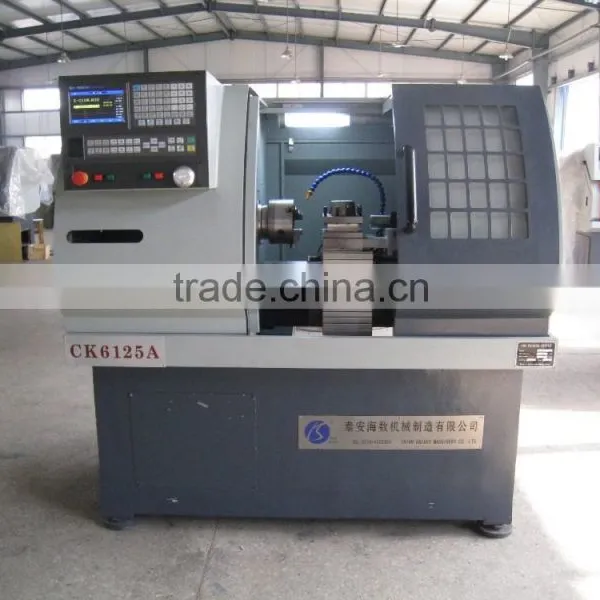

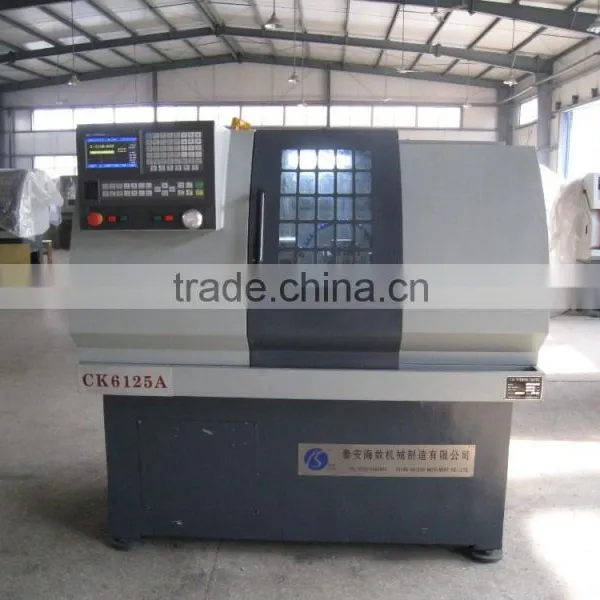

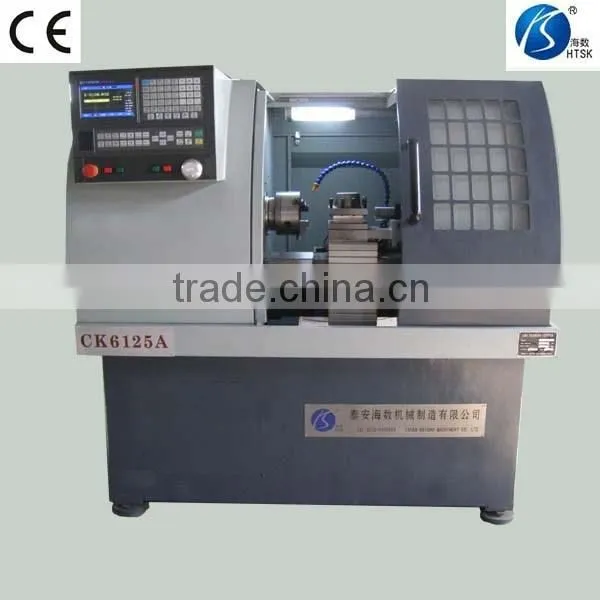

Help CenterLathe Machine Small Specification Miniature Machine Tools for High Quality Household Lathe Turning CK6125A
Related Products
-
CK6140T New Chinese Lathes /horizontal Large Diameter Lathe Machine ChinaUS$ 10,500 - 21,000MOQ: 1 Set -
China CNC Horizontal Lathe CK6136A CNC LATHE With Auto Bar FeederUS$ 8,500 - 16,000MOQ: 1 Set
-
High Precision Cnc CK0640A Mini Machine Lathe Cnc With Low Price, Big DiscountUS$ 5,000 - 15,000MOQ: 1 Set
-
Car Alloy Wheel Surface Diamond Cutting Cnc Lathe With Digitizer Probe Controller CK6166AUS$ 22,000 - 85,000MOQ: 1 Set
-
Cnc Traub Machine Manufacture Ck6140*1000 Cnc Lathe Cnc Horizontal LatheUS$ 9,500 - 12,000MOQ: 1 Set
Technical parameters
Item |
CK6125 |
Swing over bed(mm) |
Φ300 |
Max rotative diameter on carriage(mm) |
Φ100 |
Max processing length(mm) |
Collect320/Chuck240 |
Spindle nose |
A2-5 |
Through-hole diameter of spindle(mm) |
Φ48 |
Through-hole diameter of drawn pipe(mm) |
Φ40 |
X/Z-axis repeatability(mm) |
0.012/0.013 |
X axis travel(mm) |
300 |
Y axis travel(mm) |
350 |
X-axis rapid traverse rate(m/min) |
5 |
Z-axis rapid traverse rate(m/min) |
8 |
Spindle speed range(m/min) |
150-2200 |
Taper of tailstock sleve |
MT4 |
Tailstock sleeve stroke(mm) |
90 |
Type of tool carrier |
4 Position electric tool post |
Main motor power(KW) |
3 |
L*W*H(mm) |
1480×800×1600 |
weight(Kg) |
1000 |
Standard Accessories |
Optional Accessories |
GSK system |
Siemens/Fanuc/GSK/KND etc |
Pneumatic spring Clip |
Manual chuck Pneumatic chuck or Hydraulic chuck |
gang-type tool carrier(2pieces) |
4-station turret |
Lubrication pump(automatic) |
Pneumatic tailstock, Hydraulic tailstock |
Work light Tool box | |
Voltage:3 phase 380v 50HZ if need to change, contact with me ahead of time. |
Automatic feeding |
User’s manual operational manual |
Other as requirements |
if want to know more about machine, pls send enquiry to me ,thanks
