cnc traub machine manufacture Ck6140*1000 cnc lathe cnc horizontal lathe
Item |
Project name |
Technical paramaters |
CK6140A | ||
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ400 |
Max.swiming over pallet(mm) |
Φ245 |
|
Max.the workpiece length(mm) |
750/1000 |
|
|
Main transmission |
Main transmission form |
Independent spindle, stepless frequency conversion timing |
Number of spindle speeds |
stepless |
|
Range of spindle speed(r/min) |
200~2500 |
|
Spindle centering axial taper |
MT6 |
|
Chuck size(mm) |
Φ200/Φ250 |
|
The nose type |
No.6, A2 |
|
Spindle bore(mm) |
60mm |
|
Main motor power(kw) |
5.5kw |
|
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
|
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
|
Workpiece accuracy |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
|
|
tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
120 |
|
Taper of tailstock quill |
MT4 |
|
|
Tool post |
Standard accessories |
4 station electric tool |
Opinional accessories |
6 tool post or 8 tool post |
|
Repeat positioning accuracy(mm) |
0.008 |
|
Section of turning tool(mm) |
25*25 |
|
|
Size and weight |
The size of the machine |
2400*1450*1650 |
Net weight of the machine(kg) |
2000 |
1.CNC system :GSK928 2. 4-position tools
3.Automatic lubrication pump 4. Manual 3-jaw chuck
5.Manual tailstock olant system, lighting system
7.protective door 8.operation manual
9.unit tools box
10.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)

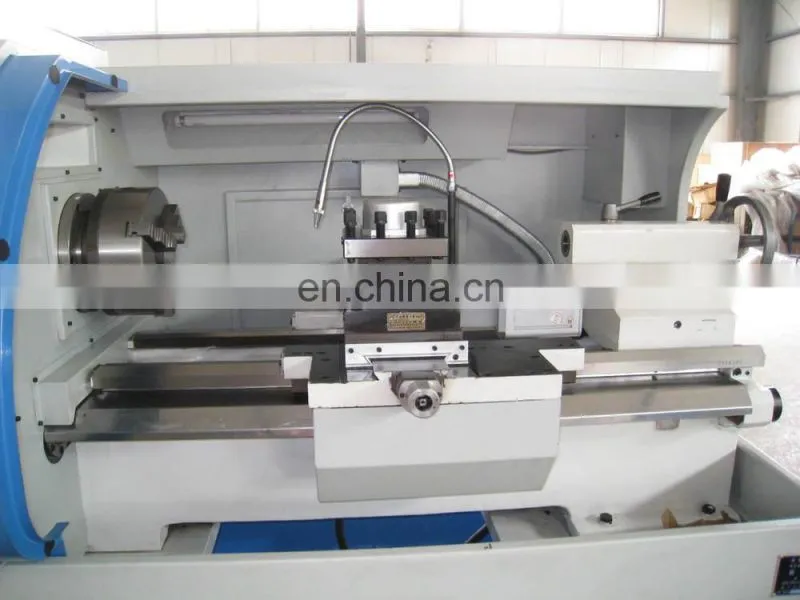

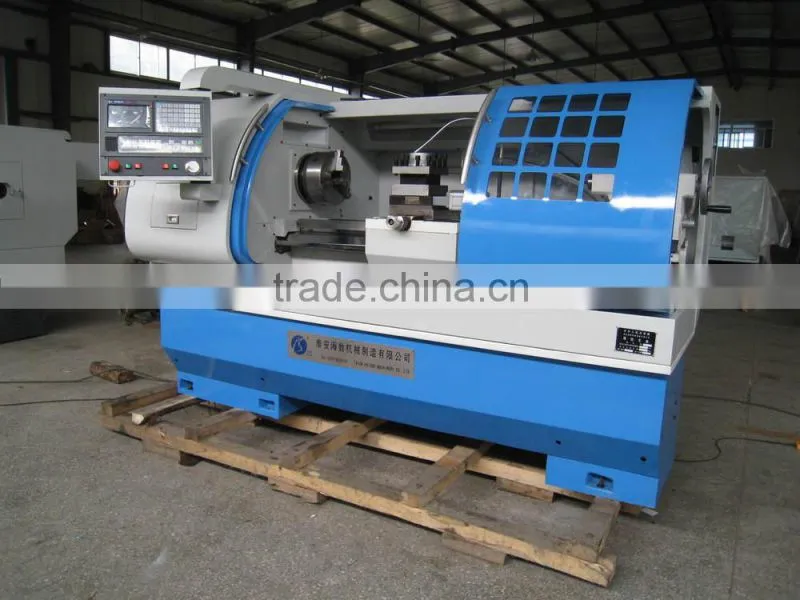

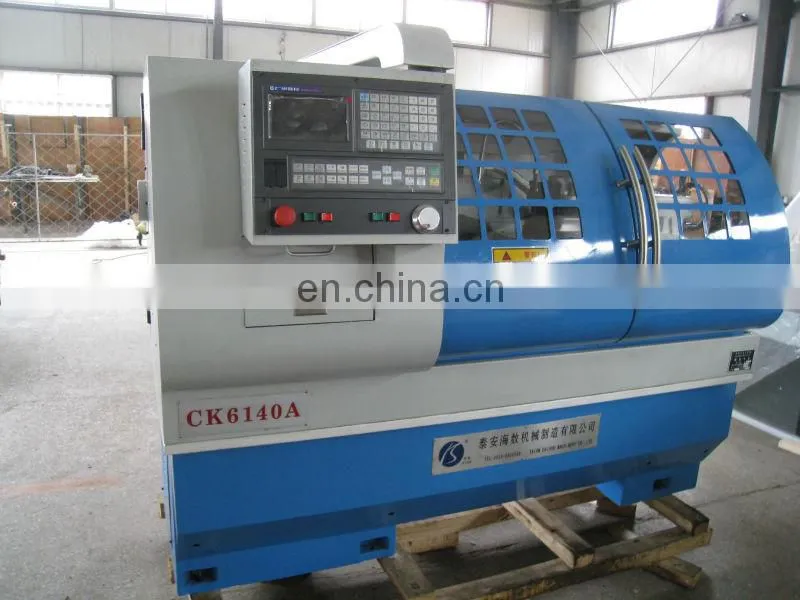

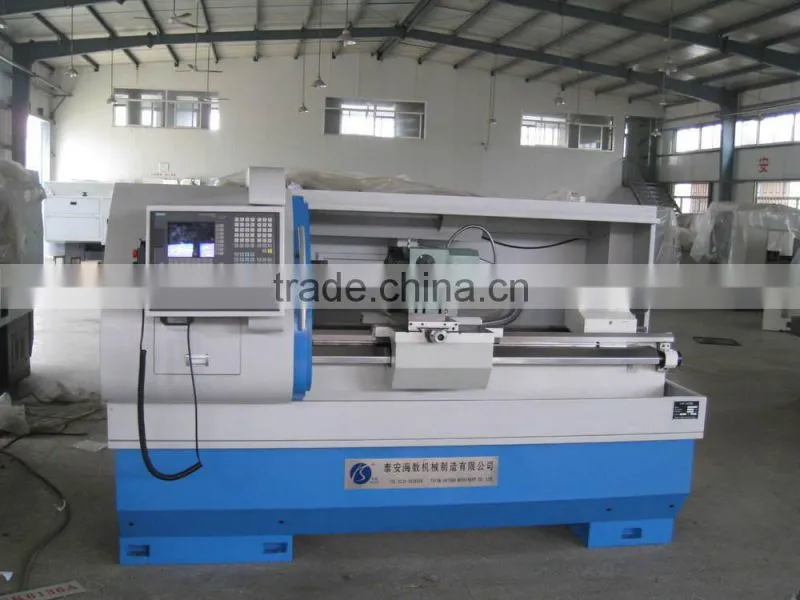

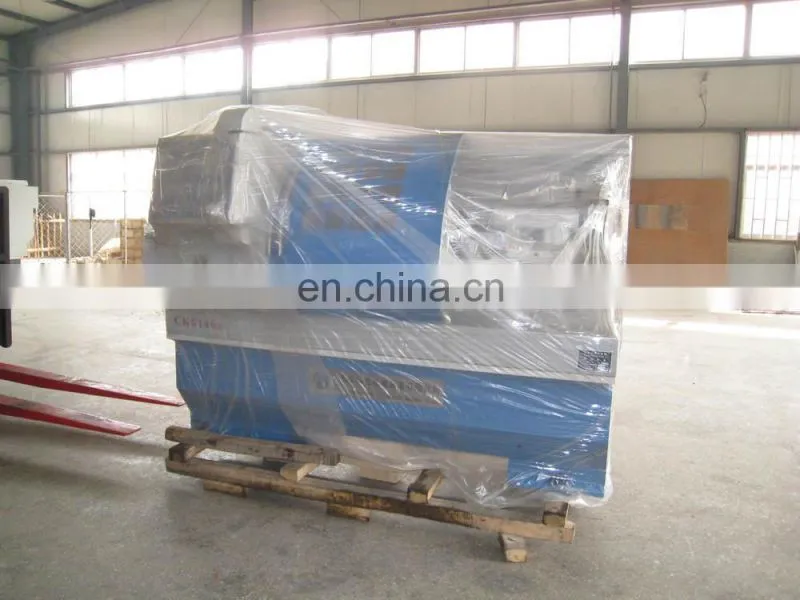

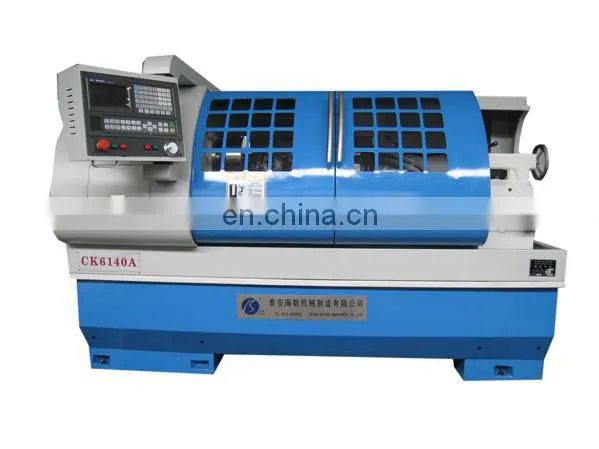

machine photos
