CJK61100B-2 CNC automatical heavy duty used cnc lathe price With CE and Low Price
Technical parameters
Items |
CJK61100B-1 |
Max.swim over bed (mm) |
1000 |
Max.swim over carriage(mm) |
660 |
Max.length of work piece(mm) |
1000/1500/3000 |
Spindle speed |
auto 3 gear steps,stepless speed change in the step |
Range of Spindle speed (r/min) |
18-600 |
spindle nose |
C11 |
Spindel bore(mm) |
φ105 |
taper hole of spindle |
120 1:20 |
Main motor model |
YVP180L-6-15KW |
Max.travel(mm) |
X 500 Z 1200,1650,3100 |
rapid speeds(mm/min) |
X 4000 Z 5000 |
Min.feed increment(mm) |
X 0.01 Z 0.015 |
workpiece accuracy |
IT6-IT7 |
surface roughness |
Ra1.6 |
diameter of tailstock quil(mm) |
100 |
travel of tailstock quill(mm) |
250 |
taper hole of tailstock quill |
Morse 6 |
stand configuraion |
Vertical 4-position electrical turre |
Section of turning tool(mm) |
35*35 |
Packing size (mm) |
3750/4750/5500×1920×1800 |
weight |
5000/6000/7000 |
Configuration
Standard configurations |
1. guide width is 660mm 2. spindle bore dia is 130mm 3. 4 electric tool post 4. spindle speed is a gear three handle, stepless change the speed, 5. X/Z servo driven 6. controller is GSK980TDb 7. motor power is 15kw 8. manual chuck and manual tailstock 9. auto lubrication 10. Semi-enclosed protection Tool box Instruction manual Packing list |
Opitional configurations |
.Siemens . Fanuc 0i-mate TD . NSK spindle bearing . 6 or 8 ,12position turret .Hydraulic chuck .Penumatic chuck .Pneumatic tailstock .Hydraulic tailstock |

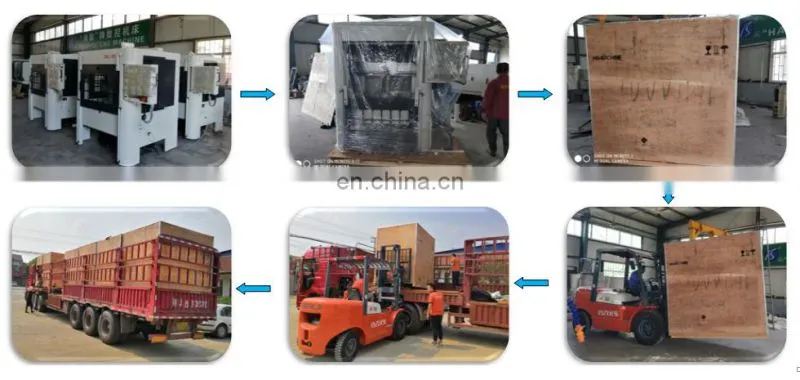

Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative CNC wheel machine products include wheel CNC machine, wheel repair machine, brake drum lathe and other customized CNC machines custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC wheel machine products but also providing custom design, fabrication and after sale service. If you have any questions or inquiries, please contact me, we will reply as soon as possible.
