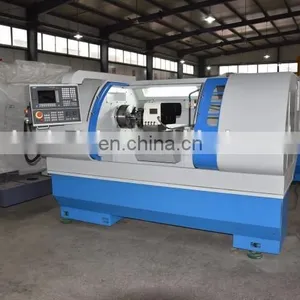

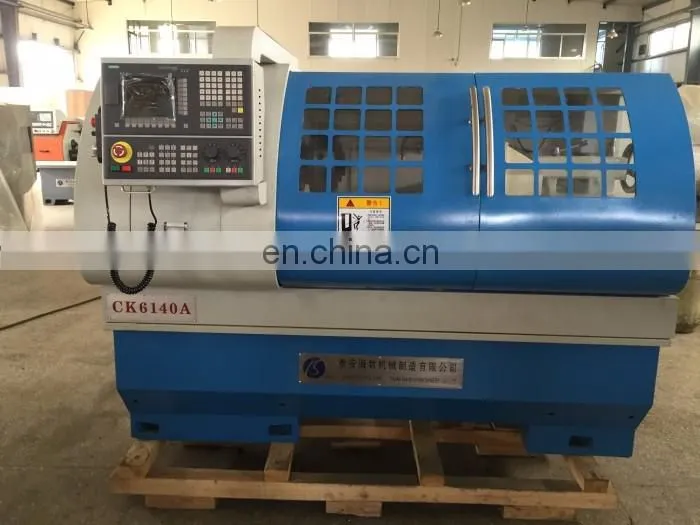

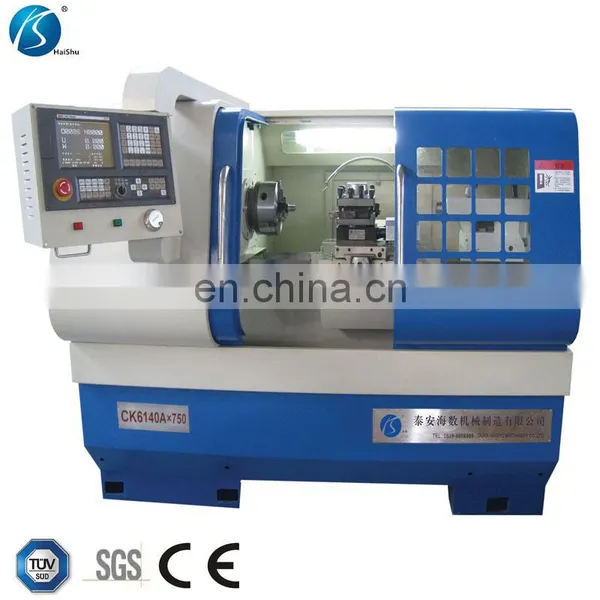

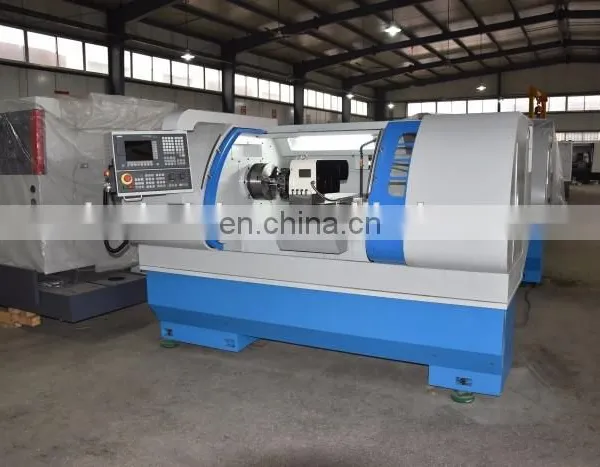

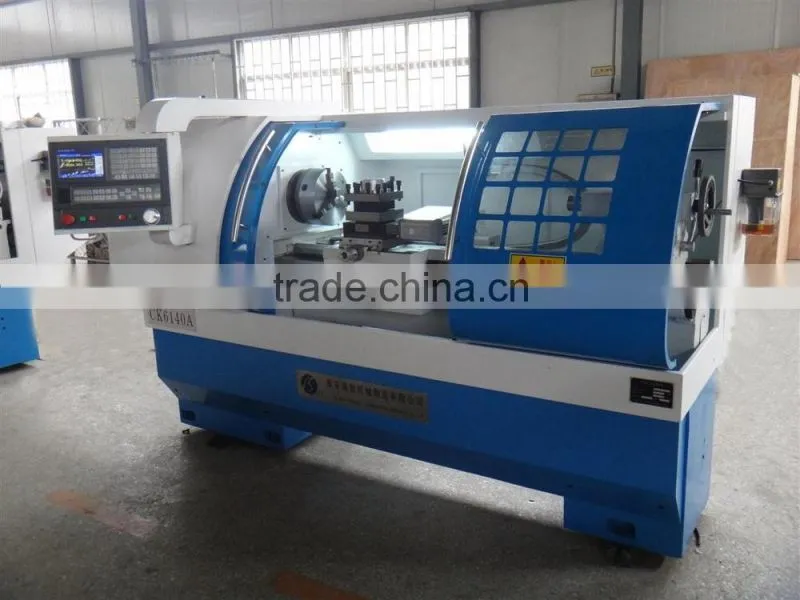

CK6140A cnc automatic lathe machine with low price
SPECIFICATIONS
ITEMS |
Specifications |
Max.swim over bed |
Φ400mm |
Max.swim over carriage |
Φ245mm |
Max.length of work piece |
750/1000mm |
Range of spindle speed |
150-2000rpm |
Spindle bore |
Φ60mm |
Taper of spindle bore |
MT6 |
Stations of tool carrier |
4/6/8/or gang-type tool carrier |
Min.setting unit of motor |
(Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post |
(Z) long 8 m/min,(X) cross 6 m/min |
Taper of taikstock quill |
MT4 |
Max.range of tailstock quill |
120mm |
Motor power |
5.5KW |
Packing size(lenght×width×height) |
2150/2400 mm×1450 mm×1650mm |
Net weight |
1800/2000kg |
Main features
1. Spindle brake way by electric brake
2.Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor

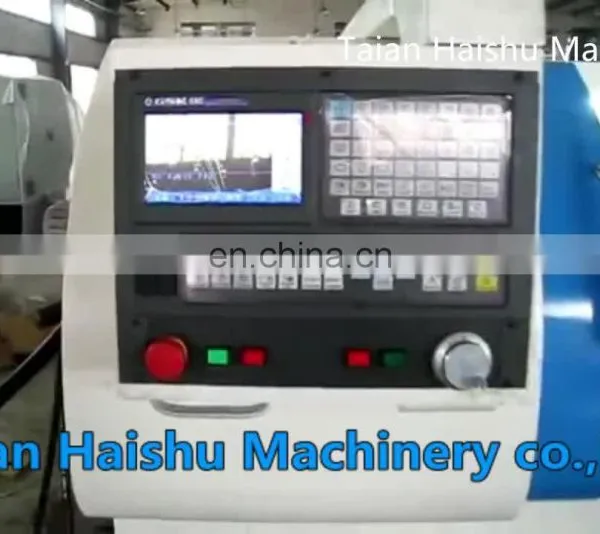

3.Imported or homemade CNC system
4.Rotary various workpiece surface automatically turning,precision maching

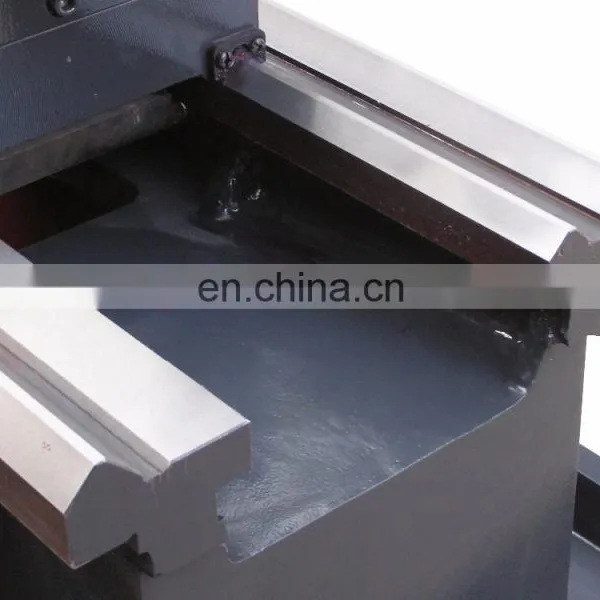

5.The boby of the lathe has good rigidity,the guide is treated by super audio quenching with high hardness,grinding the surface with high accuracy.
6.The carriage adopts plastic paste processing.wear small,high precision,long life.
7.Electronic hand wheel equipped,easy operation.

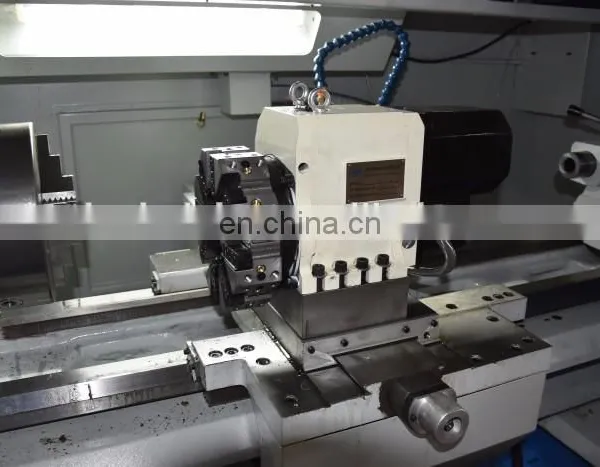

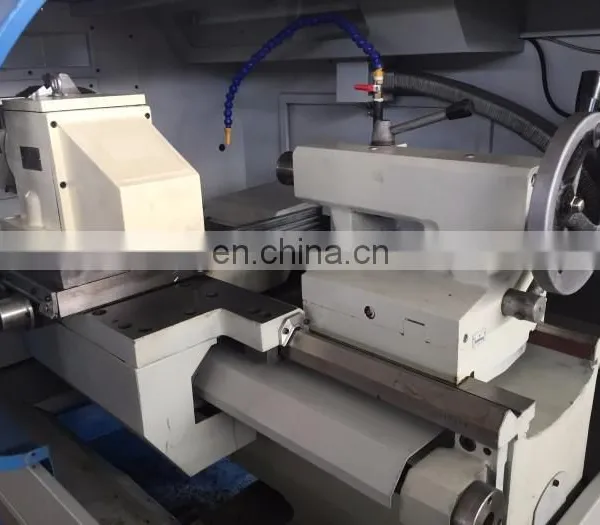

4 station turret Tailstock
6 station turret inner picture
standard exported wooden case
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
