Cnc Lathe CK 0640 Siemens Control System Manual Chuck or Hydraulic Chuck Optional

Cnc Lathe CK 0640 Siemens Control System Manual Chuck or Hydraulic Chuck Optional photo-1
Cnc Lathe CK 0640 Siemens Control System Manual Chuck or Hydraulic Chuck Optional photo-2

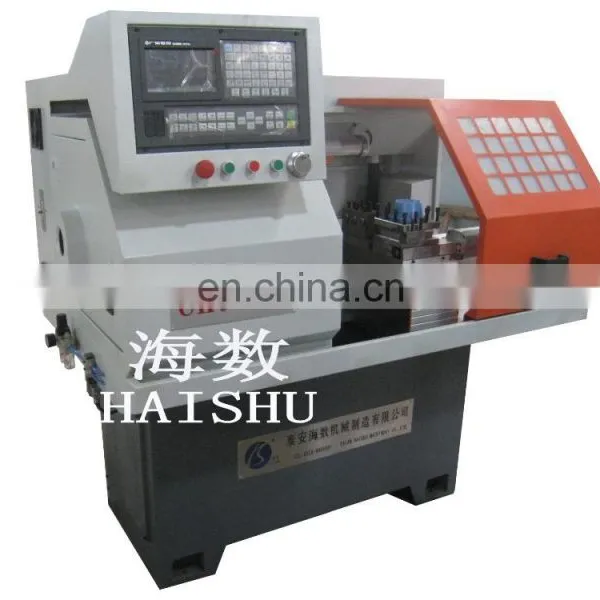

Cnc Lathe CK 0640 Siemens Control System Manual Chuck or Hydraulic Chuck Optional photo-3
Cnc Lathe CK 0640 Siemens Control System Manual Chuck or Hydraulic Chuck Optional photo-4
Cnc Lathe CK 0640 Siemens Control System Manual Chuck or Hydraulic Chuck Optional photo-5
Cnc Lathe CK 0640 Siemens Control System Manual Chuck or Hydraulic Chuck Optional photo-6
US$ 7,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HaiShu
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao /Tianjin/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HaiShu
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Detailed Image

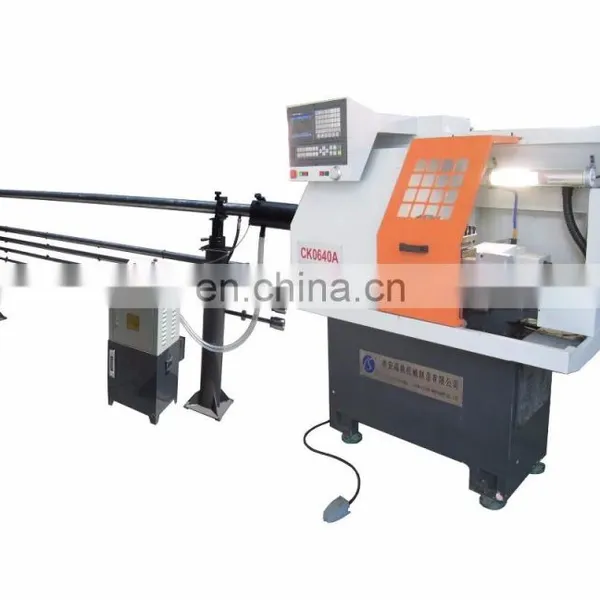

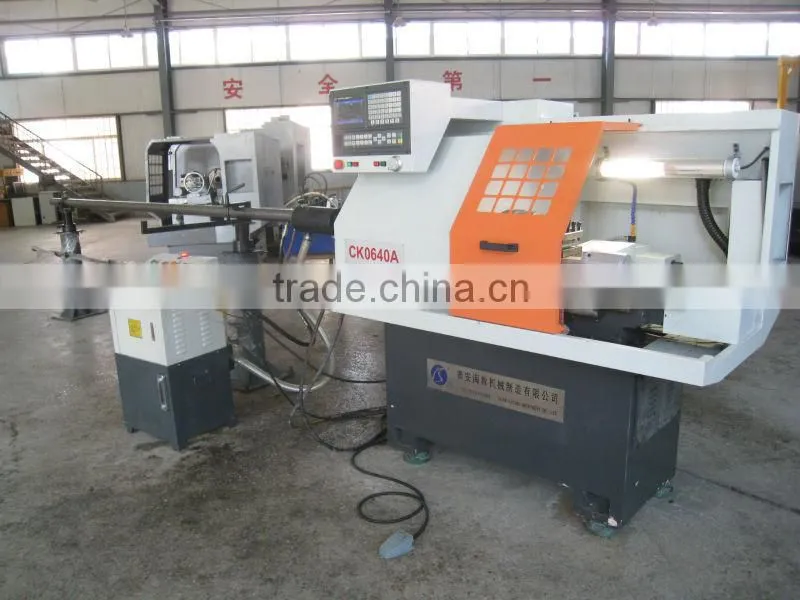

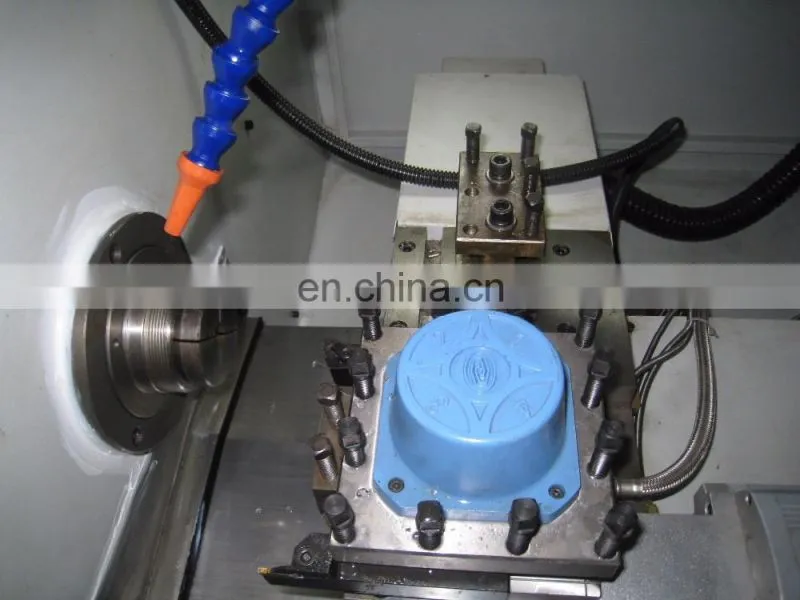

cnc lathe CK 0640 siemens control system manual chuck
SPECIFICATION
Item
CK0640A
Swing over bed(mm)
Φ280
Max rotative diameter on carriage(mm)
Φ100
Max processing length(mm)
Collect200/Chuck120
Spindle nose
A2-5
Through-hole diameter of spindle(mm)
Φ48
Through-hole diameter of drawn pipe(mm)
Φ40
X/Z-axis repeatability(mm)
0.012/0.013
X axis travel(mm)
260
Y axis travel(mm)
240
X-axis rapid traverse rate(m/min)
5M
Z-axis rapid traverse rate(m/min)
8M
Spindle speed range(m/min)
150-2200
Type of tool carrier
Gang-type tool carrier
Main motor power(KW)
3KW
L*W*H(mm)
1600×1000×1550
weight(Kg)
1000kg
Product Description


◆Achieve the wheel surface profile measurement and data collection and Program Optimization.
◆Automatic precision repair and machining in accordance with the curve of the wheel surface.
◆Self-developed curve optimization software. Multilingual language interface. Installation and operation is simple.
◆Spindle frequency stepless speed.
◆X / Z axis servo drive.
◆Manual jaw self-centering chuck.
◆Machine guard full protection.
◆Automatic oil lubrication.

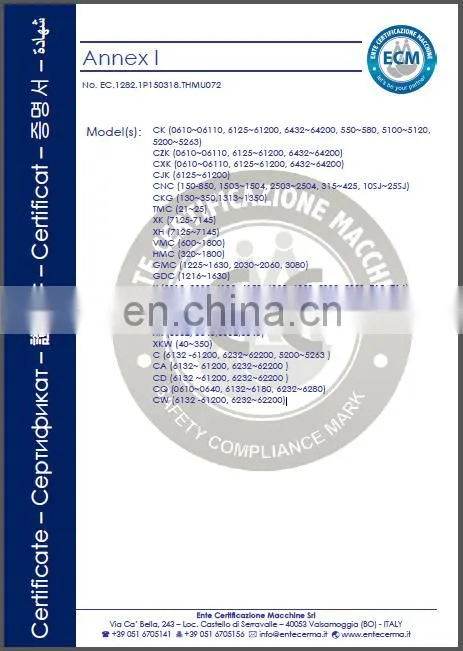

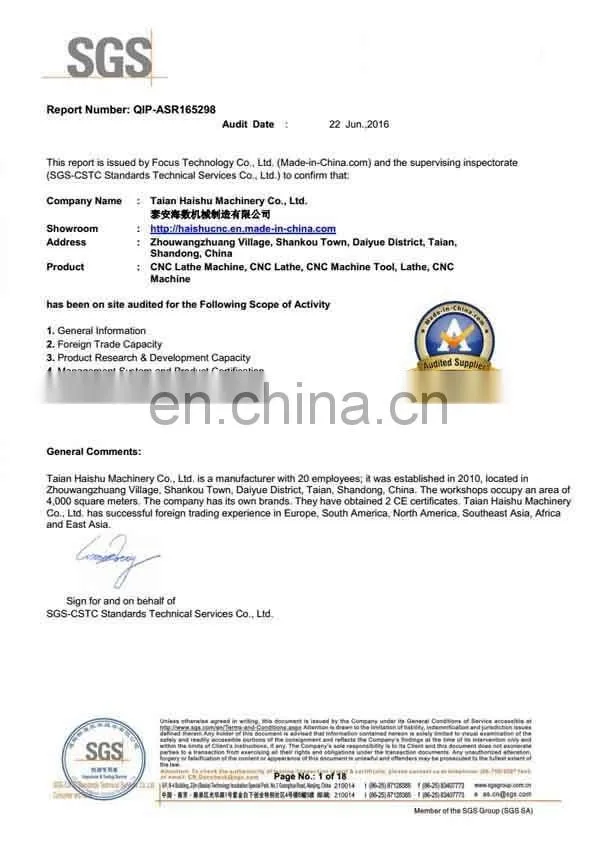

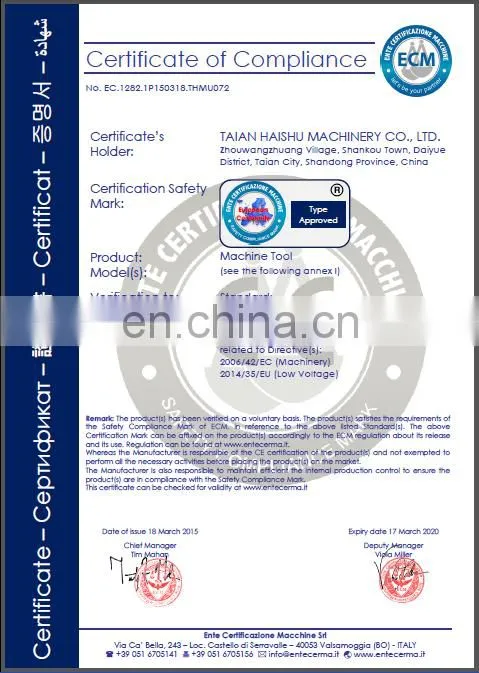

certificates

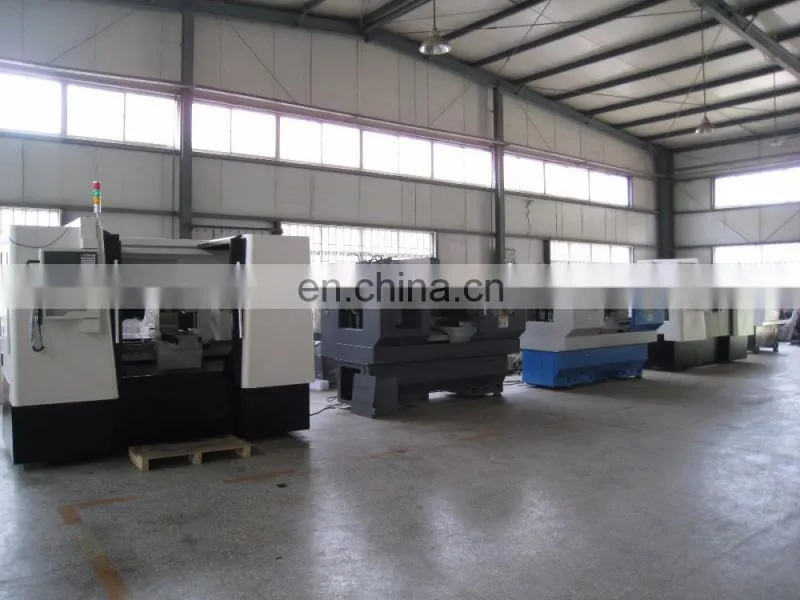

Our FACTORY
Packing & Delivery
Packaging
Size
1690×1090×1640
Weight
1 T



Packaging Details
The normal package is wooden box. we will use pe film for packing or pack it according to customers special request.

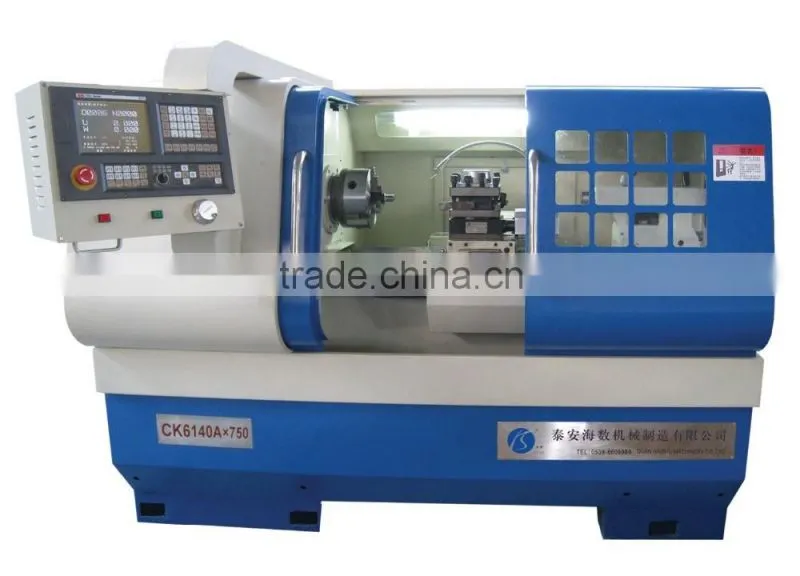

Products show
