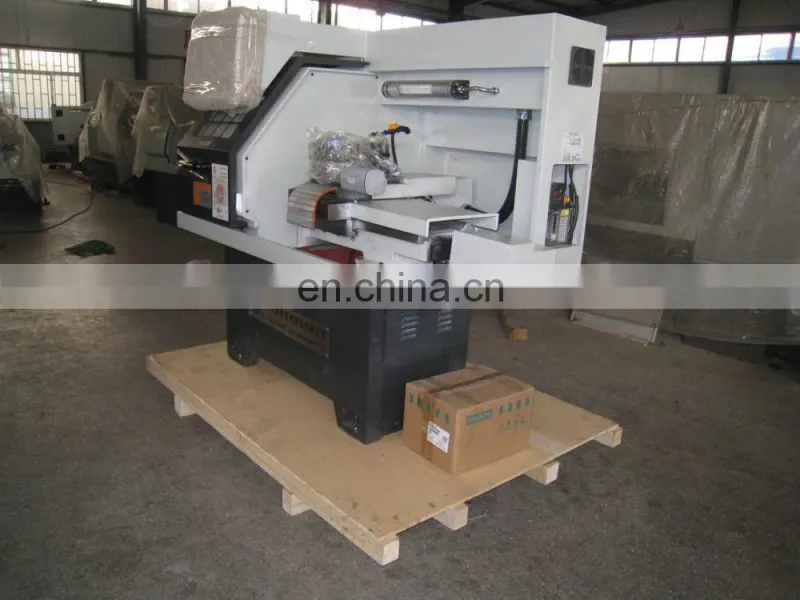

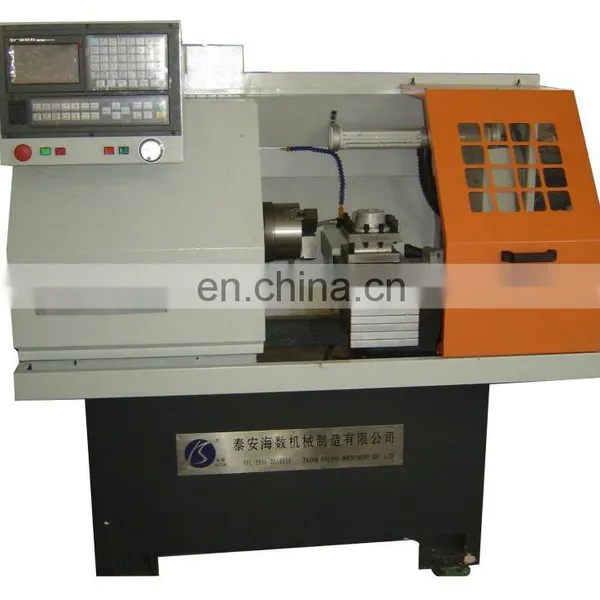

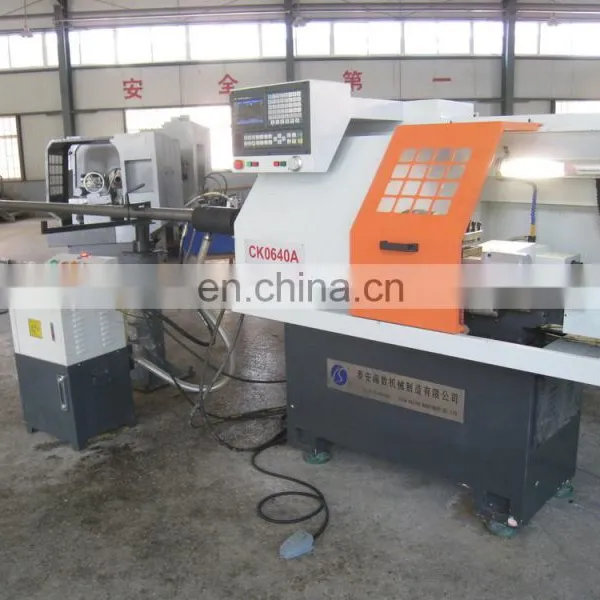

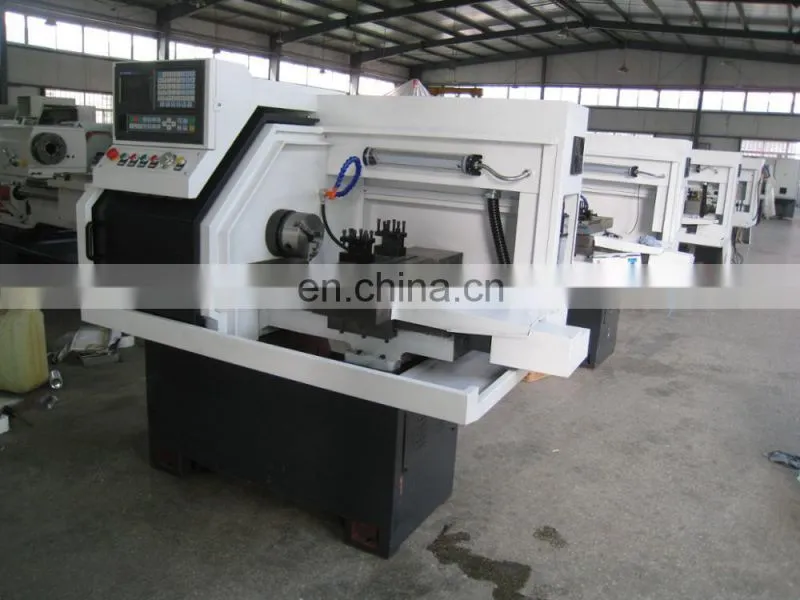

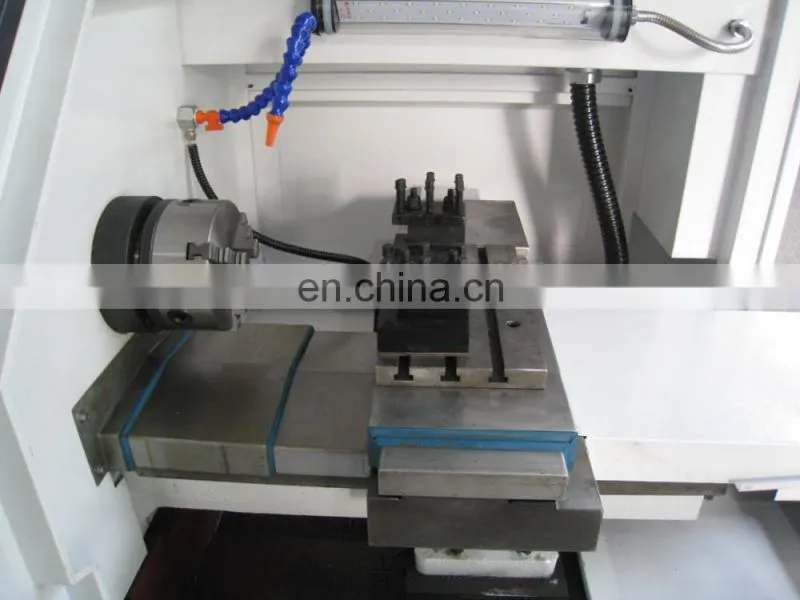

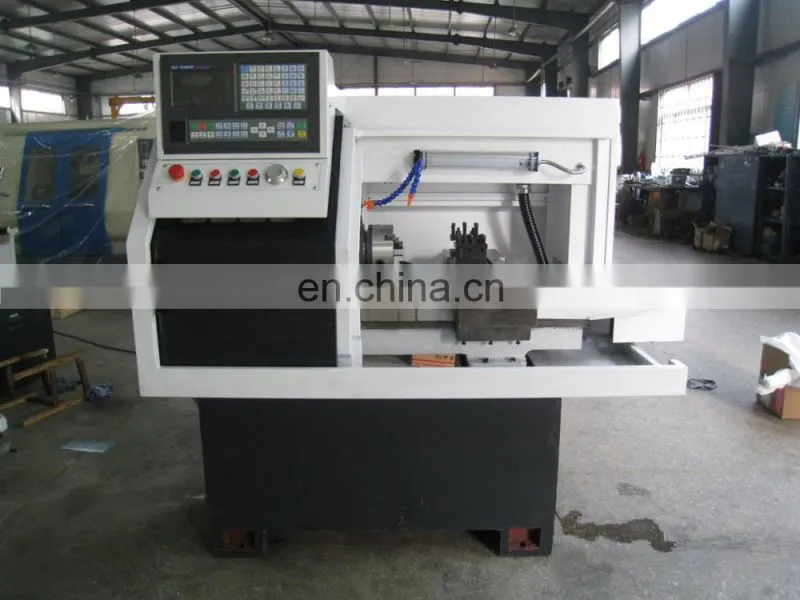

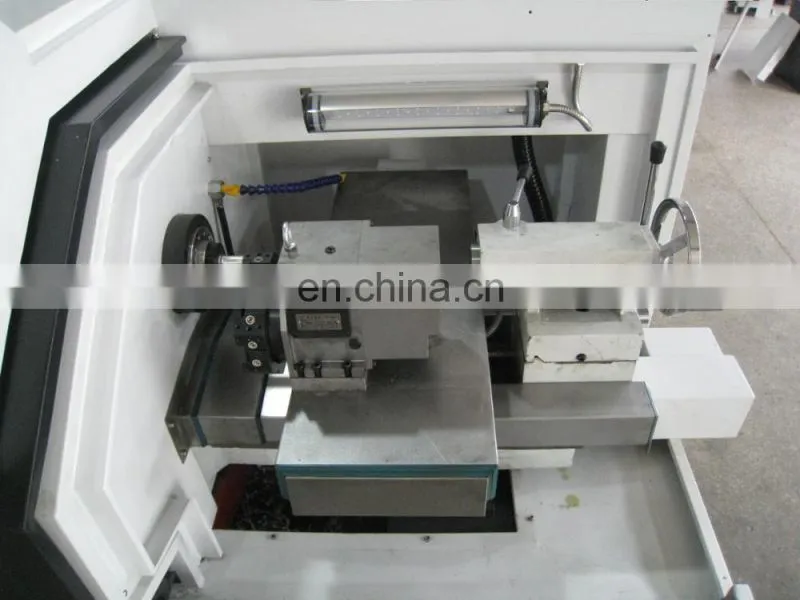

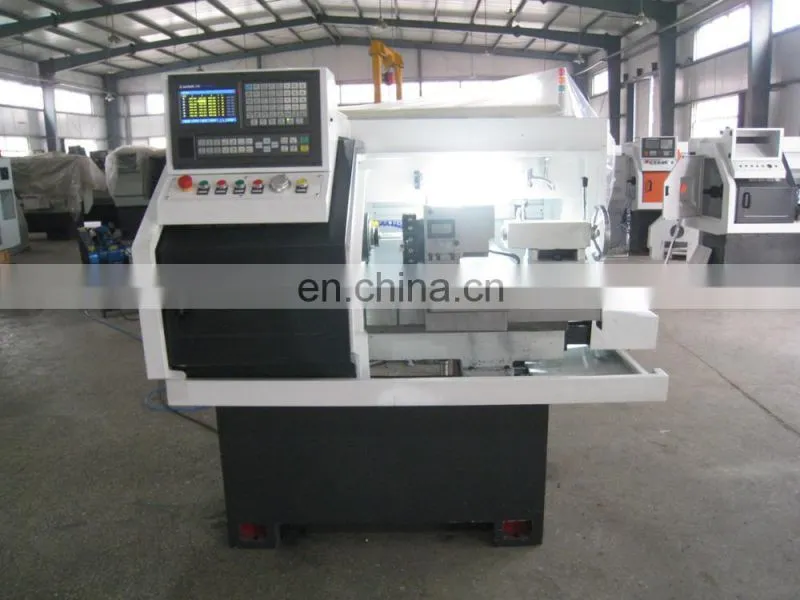

The small cnc lathe machine with chuck and tool turret CK0640A
Main features:
High precision and low price
Whole bed
Precision bearings
Precision screw
Wide rails
Main specifications:
Items |
Specifications |
Max.swing over bed |
Φ280 |
Max.swing over carriage |
Φ100 |
Collet chuck200/ Three-jaw chuck120 |
|
Spindle head form |
A2-5 |
Spindle bore |
Φ48 |
Trombone bore |
Φ40 |
X / Z axis repeat positioning accuracy |
0.012/0.013 |
X-axis max motion traveling schedule |
260 |
Z- axis max motion traveling schedule |
240 |
X-axis fast moving speed |
5 |
Z- axis fast moving speed |
8 |
Range of spindle speed |
150-2200 |
Turret form |
4 station turret / row turret optional |
Power of the main drive motor |
3 |
Overall dimensions(L×W×H) |
1600×1000×1550 |
Net weight |
1000 |
The applications:
The machine can be widely used for valve/plumbing/auto parts and other metal parts. For circular/end face/hole/cutting groove /any cone/sphere and various metric system thread machining.
Standard configuration:
CNC system:GSK928
Pneumatic chuck
Row knives
Optional configuration:
CNC system:GSK980,KND,Siemens,Fanuc

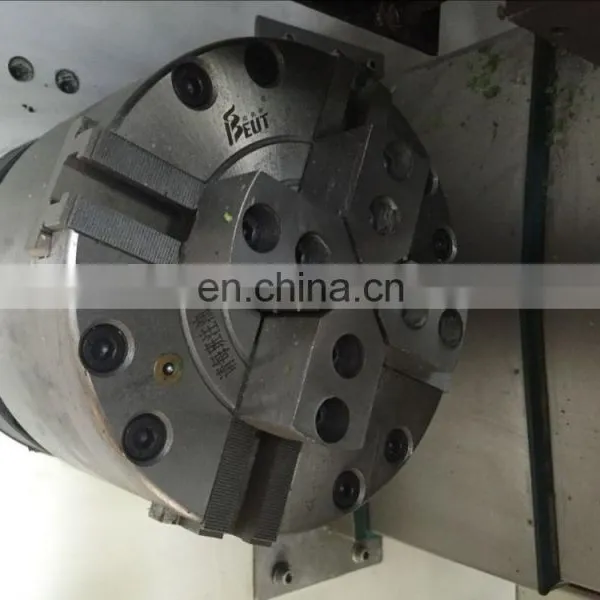

Manual chuck or power chuck
Manual tailstock or power tailstock
Electric turret

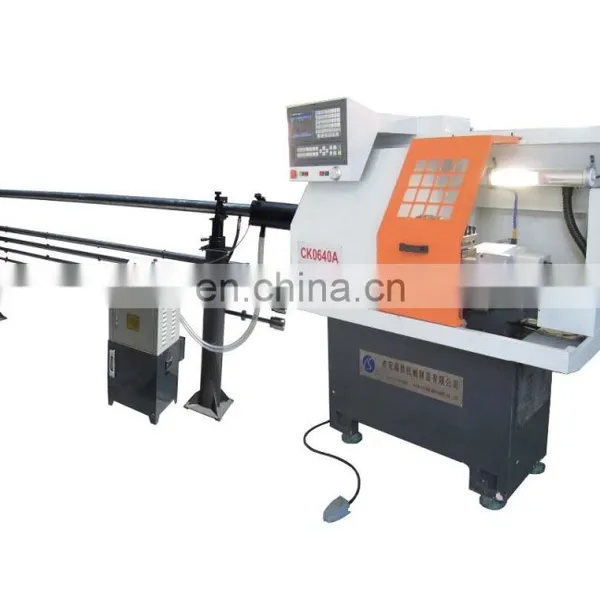

Feeder
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
Taian Haishu Machinery co.,Ltd. is specialized in design production and sales of CNC machine tools. The leading product is "HAISHU" brand CNC lathe,CNC Turning center, Machining center, etc..
Our company is equipped with the ministry of domestic trade and foreign trade, with independent import and export right. Product best-selling more than 20 domestic provinces and municipalities and autonomous regions, and exported to the US, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Lebanon, Czechoslovakia, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Argentina, Russia, Belarus, Lithuania, Serbia, Tunisia, Bahrain, South Africa, South Korea, India, Indonesia, Malaysia, Thailand, the Philippines, Egypt, Iran, Bangladesh, Iraq, Yemen, Mongolia,etc. more than 45 countries.
We have years of CNC machine tool development and manufacturing experience, in order to "science and technology innovation, good faith service" business philosophy in close cooperation with old and new customers, grow together, common development.
