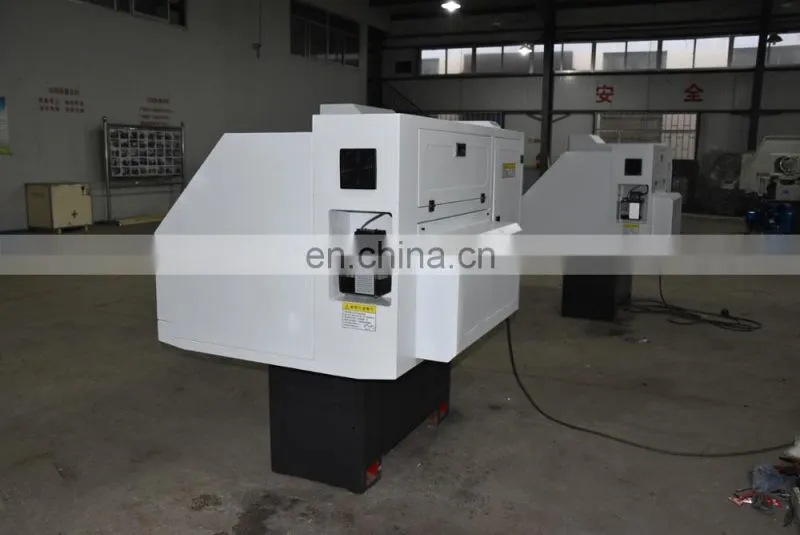

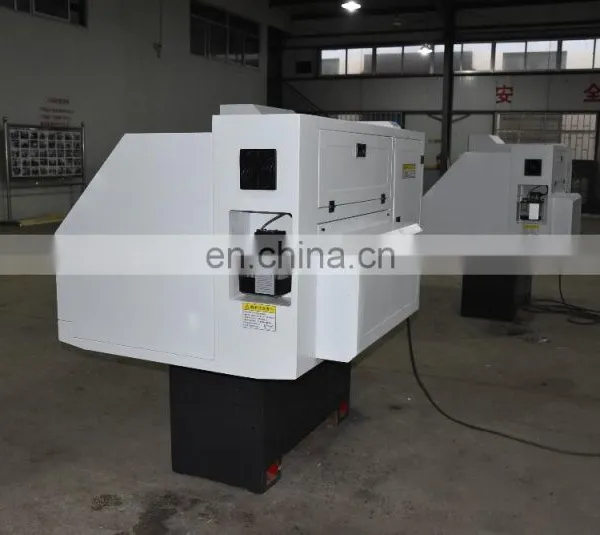

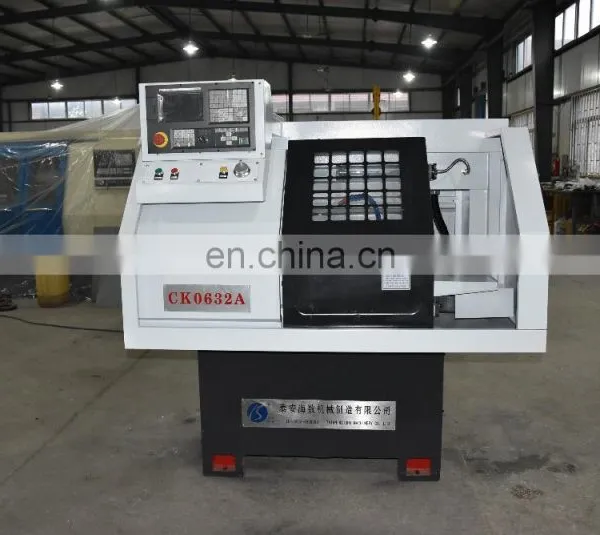

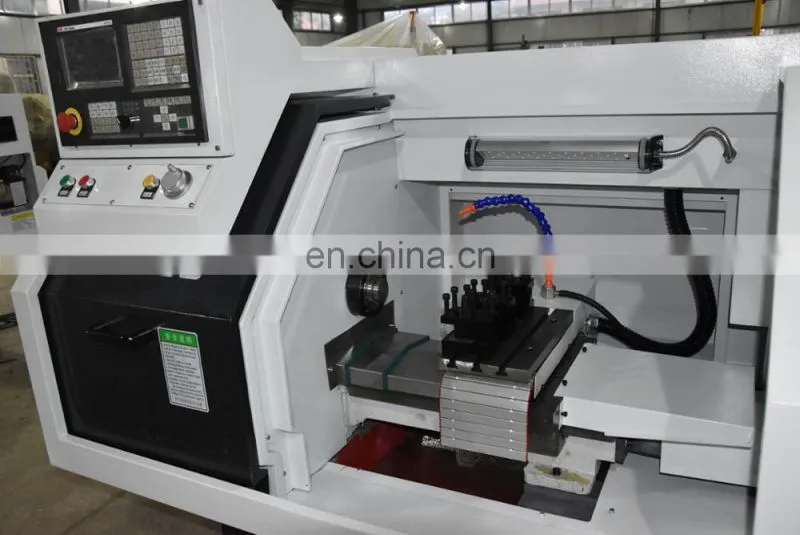

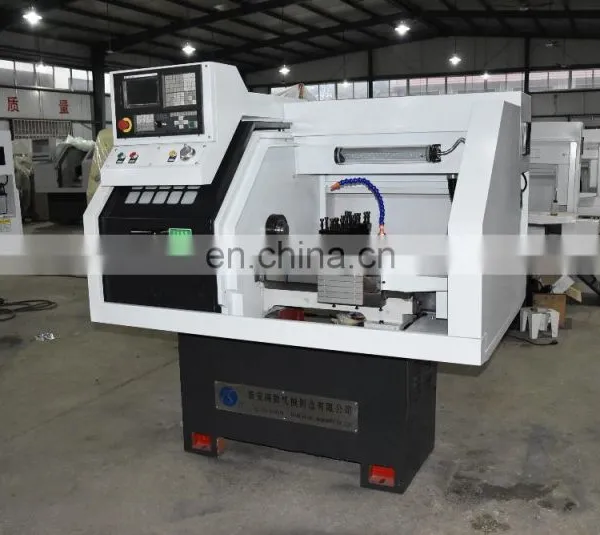

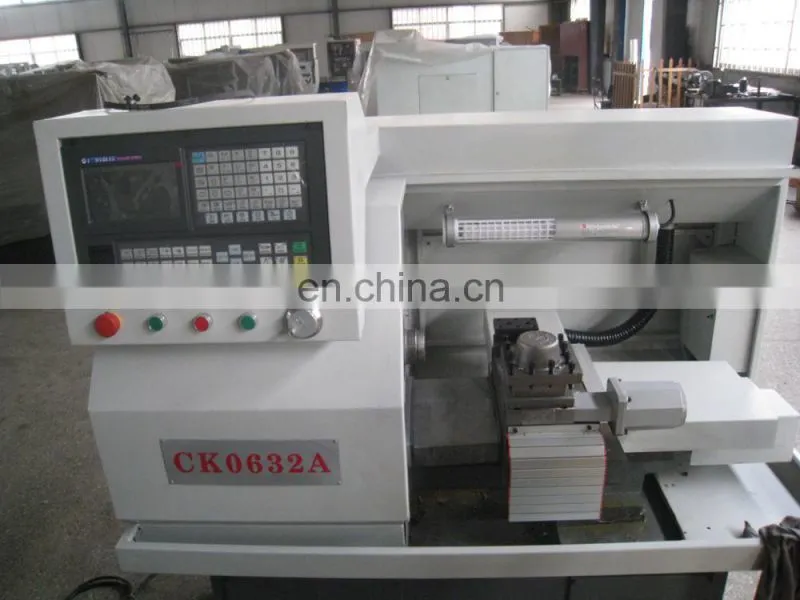

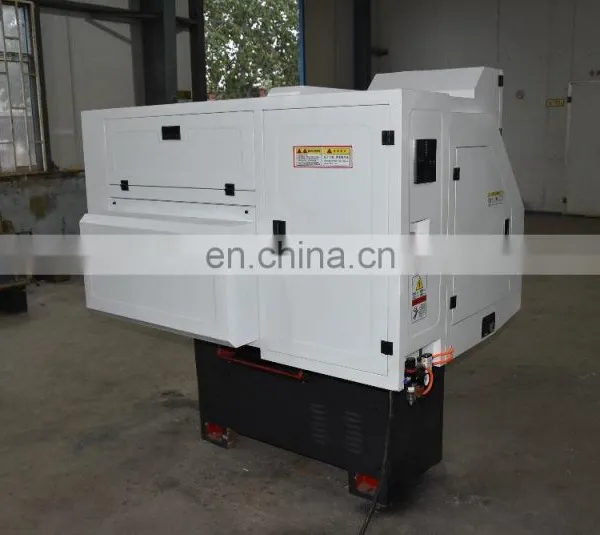

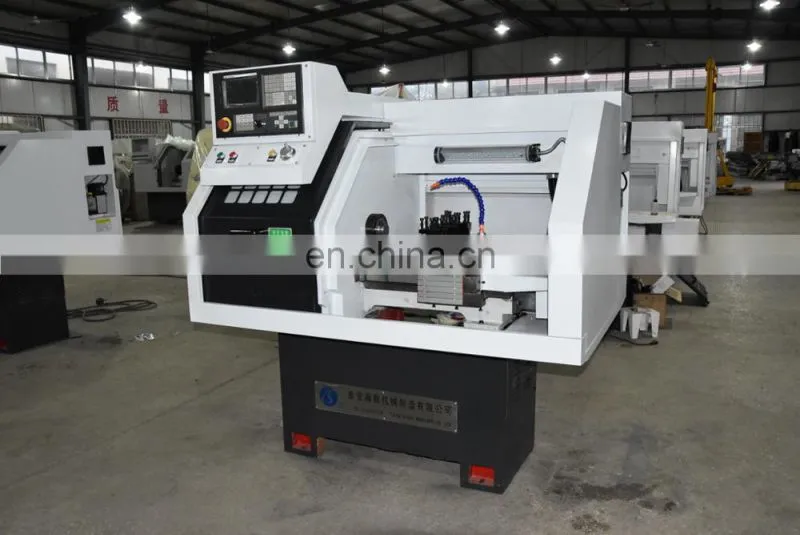

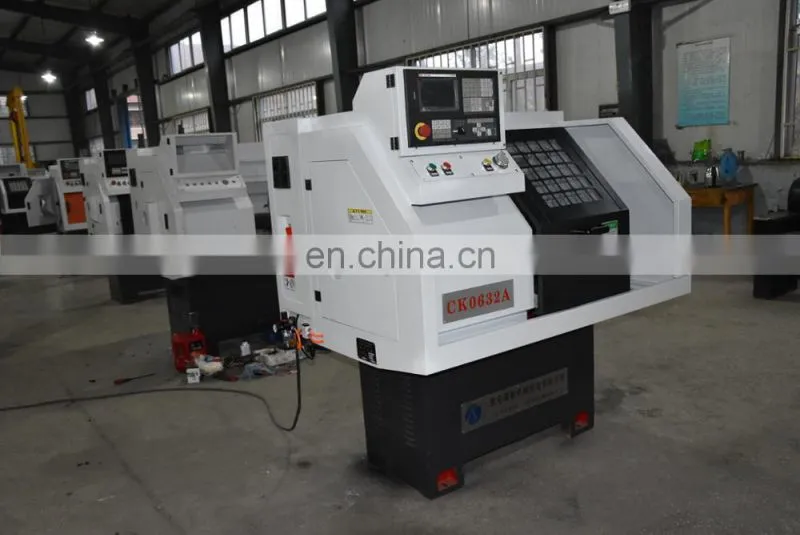

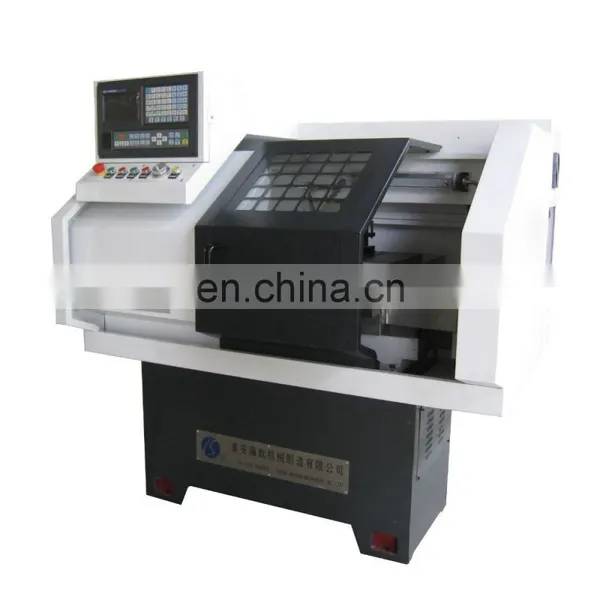

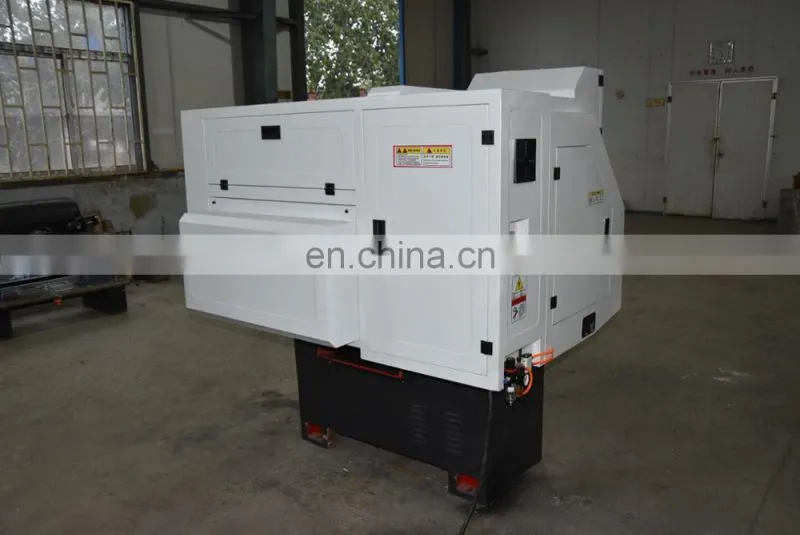

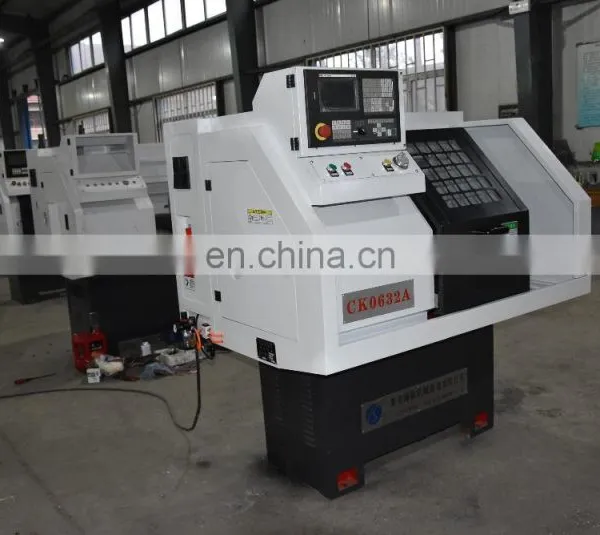

cnc mini lathe machine CK0632A Horizontal small lathe
1.Main specifications:
Items |
unit |
specifications |
Max.rotation diameter over bed |
mm |
Φ230 |
Max. Rotation diameter over pallet |
mm |
Φ80 |
piece length |
mm |
collet200/chuck120 |
Spindle head form |
|
A2-5 |
Spindle bore |
mm |
Φ40 |
Trombone hole diameter |
mm |
Φ32 |
X/Z repeat positioning accuracy |
mm |
0.012/0.013 |
X maximum stroke |
mm |
260 |
Z maximum stroke |
mm |
240 |
X fast-moving feed |
m/min |
5 |
Z fast-moving feed |
M/min |
8 |
Spindle speed range |
R/min |
150-2200 |
Turret form |
|
4 station turret / row turret optional |
Main motor power |
kw |
3 |
Overall dimensions((L×W×H)) |
mm |
1500×1200×1600 |
Net weight |
kg |
900 |
2. Characteristics
2.1 High precision and low price
2.2 Whole bed
2.3 Precision bearings
2.4 Precision screw
2.5 Wide rails
3. Application
The machine can be widely used for valve/plumbing/auto parts and other metal parts. For circular/end face/hole/cutting groove /any cone/sphere and various metric system thread machining.
4,Standard configuration
4.1 CNC system:GSK928
4.2 Pneumatic chuck
4.3 Row knives
5,Optional configuration
5.1 CNC system:GSK980,KND,Siemens,Fanuc
5.2 Manual chuck or power chuck
5.3 Manual tailstock or power tailstock
5.4 Electric turret

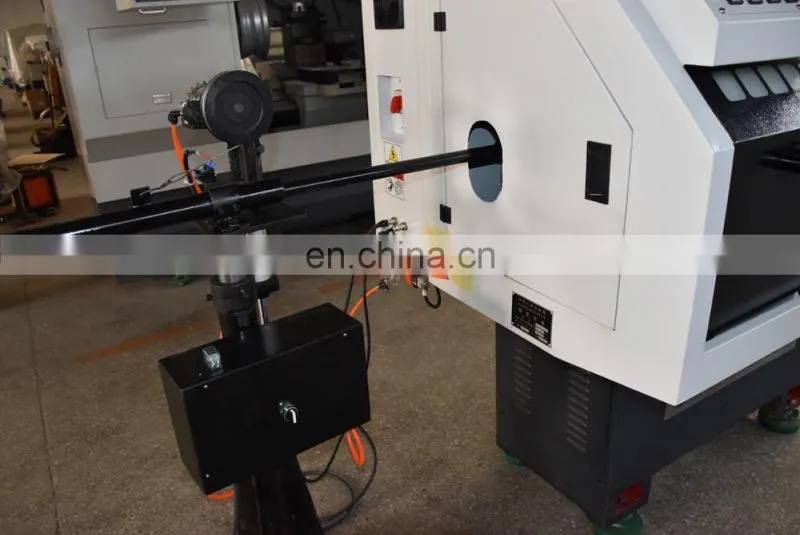

5.6 Feeder

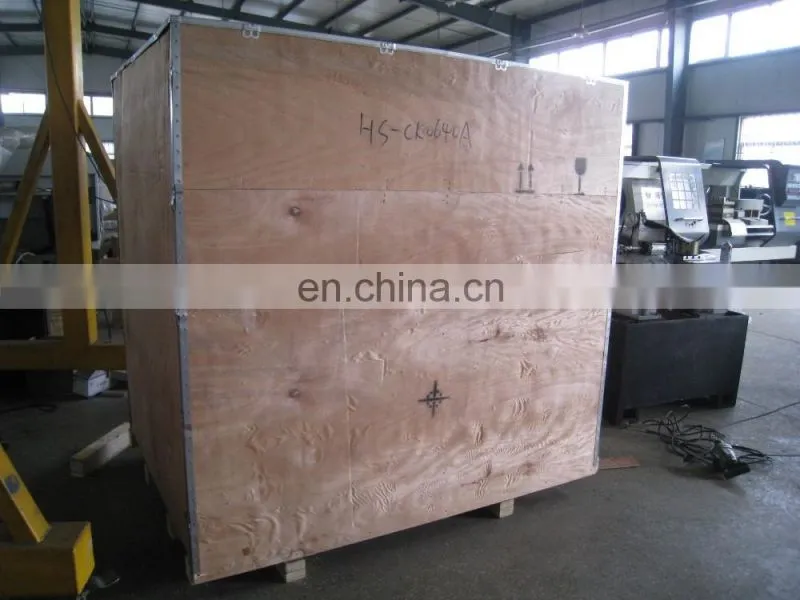

cnc mini lathe machine CK0632A Horizontal small lathe with standard export package.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
Taian Haishu Machinery co.,Ltd. is specialized in design production and sales of CNC machine tools. The leading product is "HAISHU" brand CNC lathe,CNC Turning center, Machining center, etc..
Our company is equipped with the ministry of domestic trade and foreign trade, with independent import and export right. Product best-selling more than 20 domestic provinces and municipalities and autonomous regions, and exported to the US, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Lebanon, Czechoslovakia, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Argentina, Russia, Belarus, Lithuania, Serbia, Tunisia, Bahrain, South Africa, South Korea, India, Indonesia, Malaysia, Thailand, the Philippines, Egypt, Iran, Bangladesh, Iraq, Yemen, Mongolia,etc. more than 45 countries.
We have years of CNC machine tool development and manufacturing experience, in order to "science and technology innovation, good faith service" business philosophy in close cooperation with old and new customers, grow together, common development.
