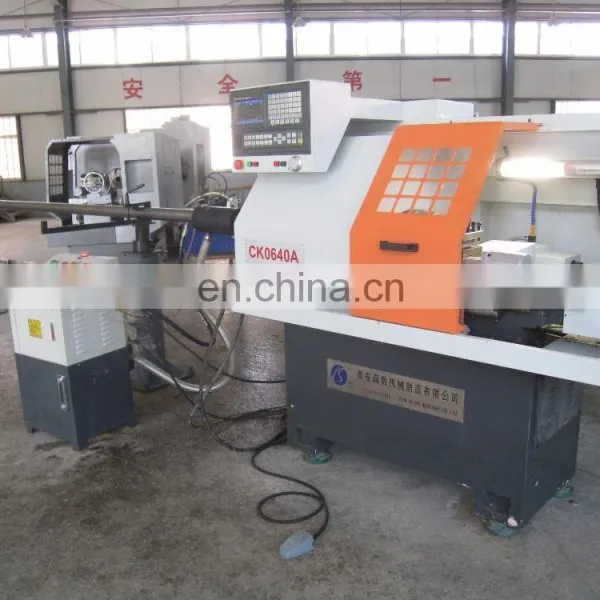

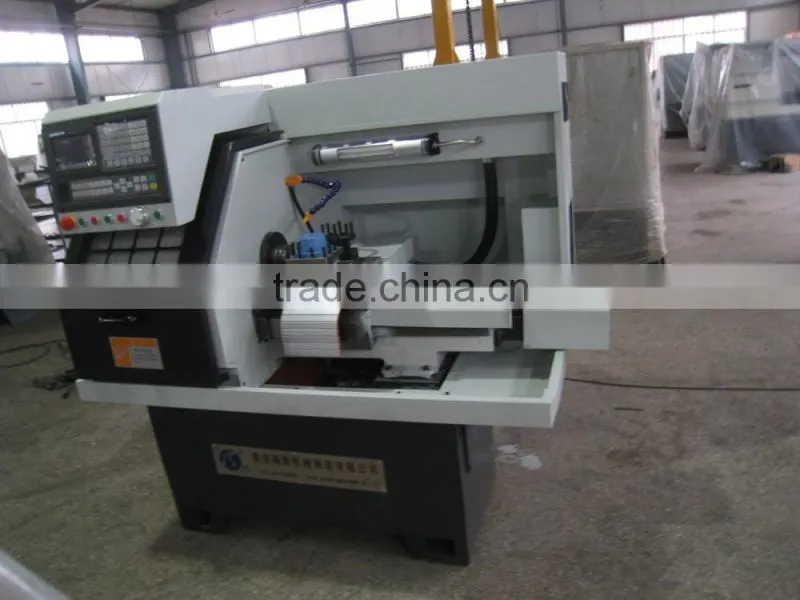

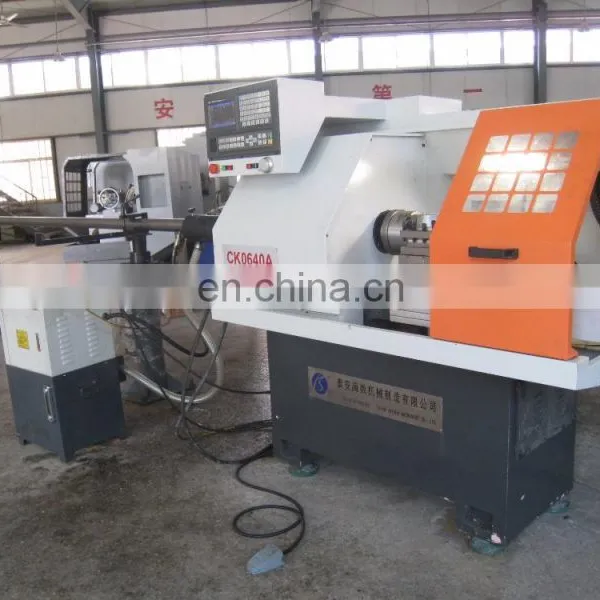

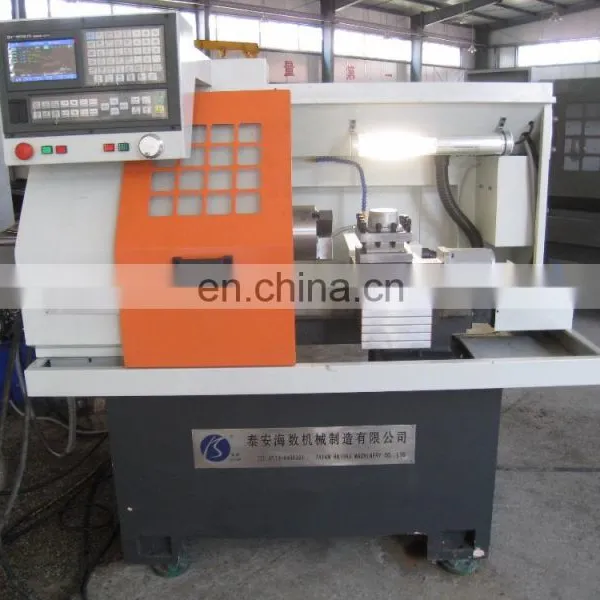

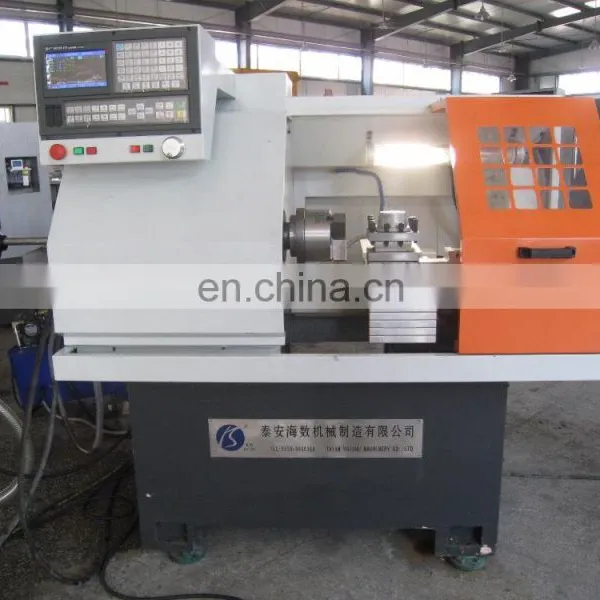

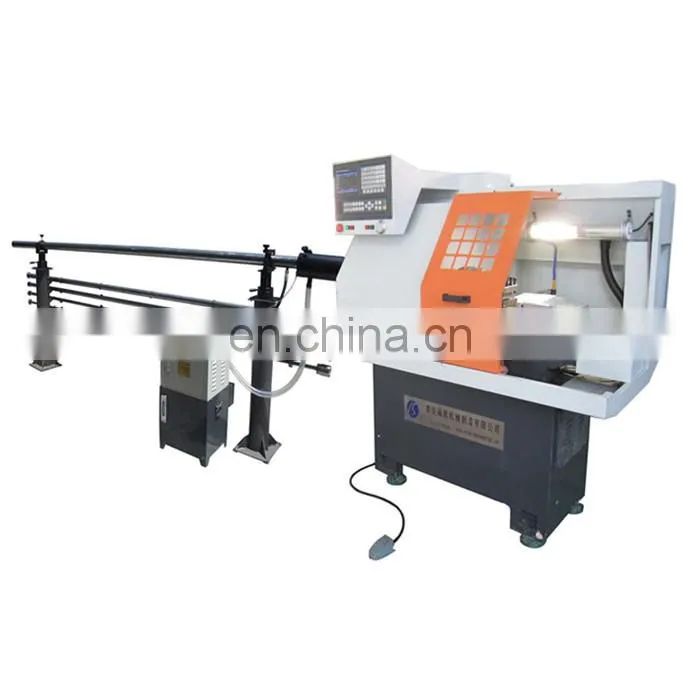

CK0640A mini cnc lathe for sale with automatic feeder
Specifications
Items |
Specifications |
Max.swing over bed |
Φ280 |
Max.swing over carriage |
Φ100 |
Max.length of work piece |
Collet chuck200/ Three-jaw chuck120 |
Spindle head form |
A2-5 |
Spindle bore |
Φ48 |
Trombone bore |
Φ40 |
X / Z axis repeat positioning accuracy |
0.012/0.013 |
X-axis max motion traveling schedule |
260 |
Z- axis max motion traveling schedule |
240 |
X-axis fast moving speed |
5 |
Z- axis fast moving speed |
8 |
Range of spindle speed |
150-2200 |
Turret form |
4 station turret / row turret optional |
Power of the main drive motor |
3 |
Overall dimensions(L×W×H) |
1600×1000×1550 |
Net weight |
1000 |
Characteristics
High precision and low price,Whole bed,Precision bearings,Precision screw ,Wide rails
Application
The machine can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.
Standard configuration Optional configuration
CNC system:GSK928 CNC system:GSK980,KND,Siemens,Fanuc

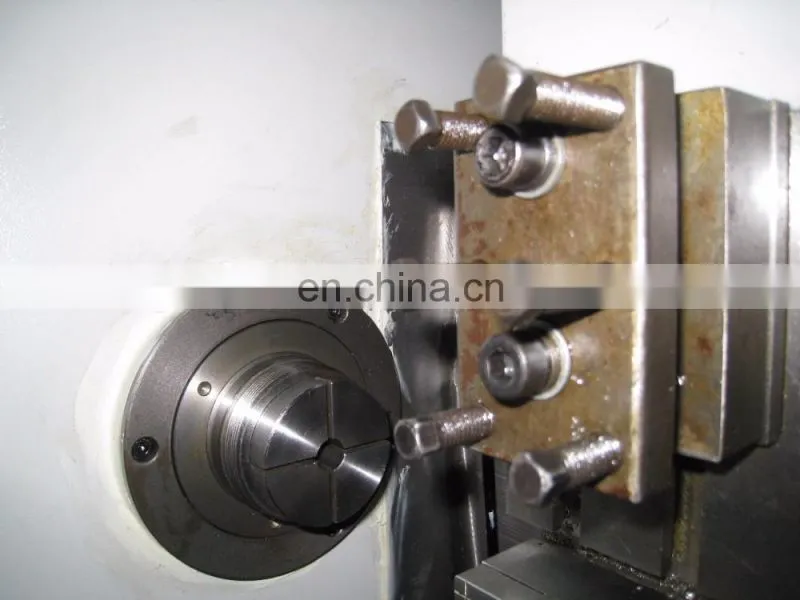

Pneumatic collet Manual chuck or power chuck

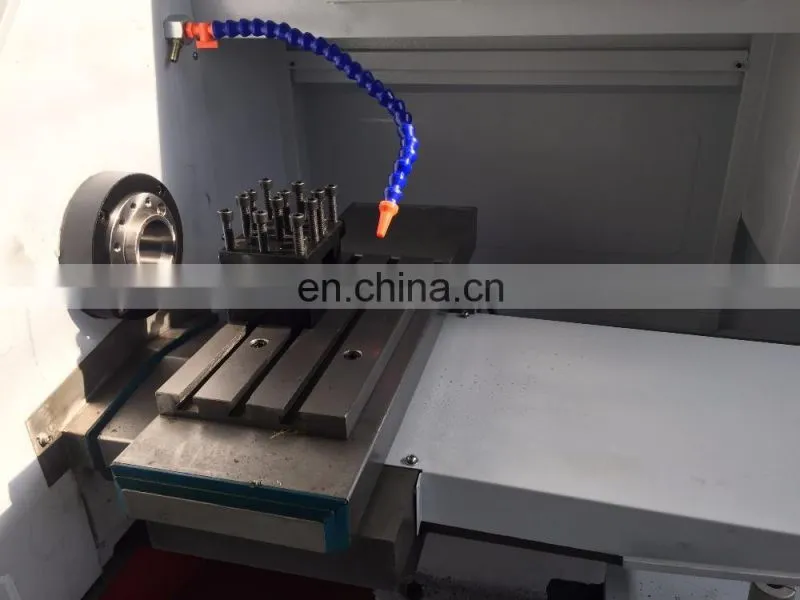

Row knives Manual tailstock or power tailstock

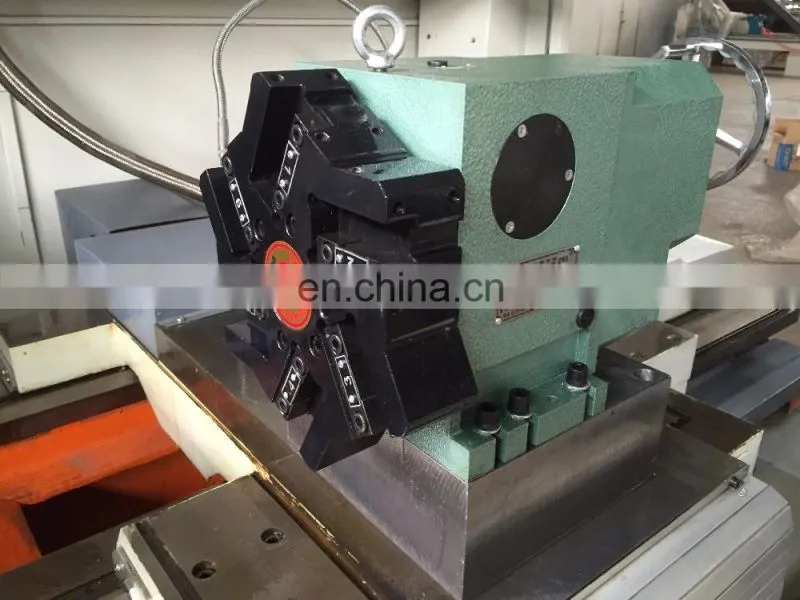

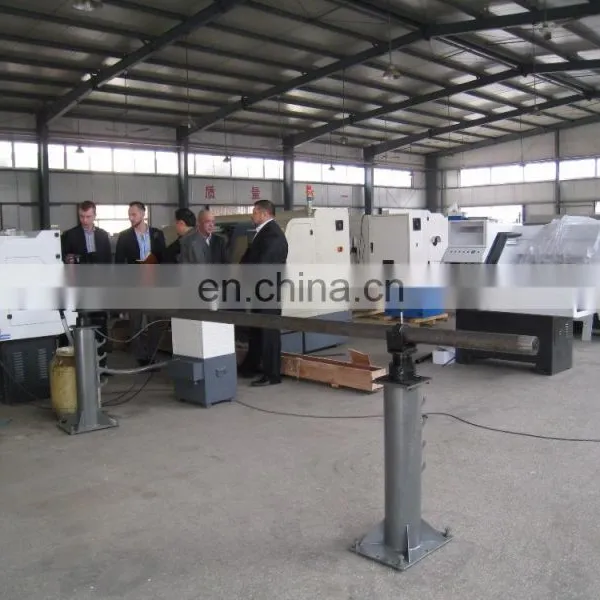

Electric turret , Feeder
Tools:

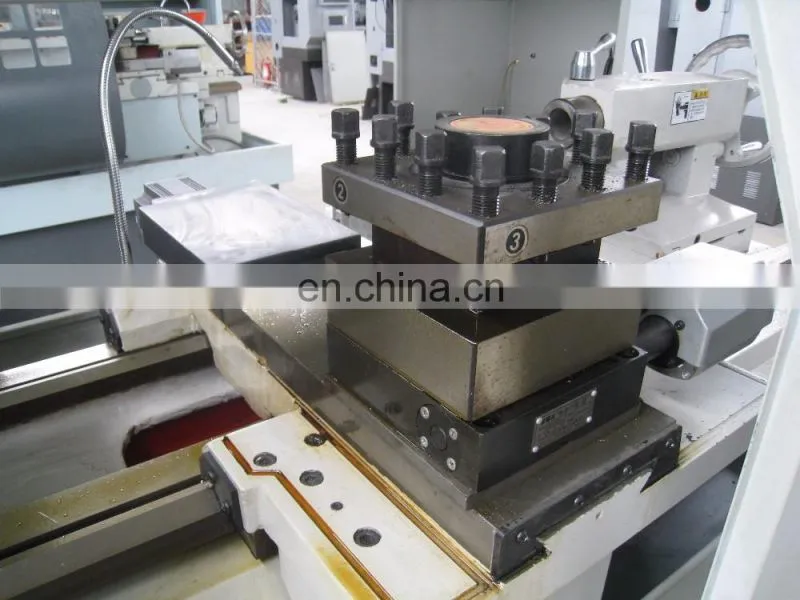

Row tool 4 station turret

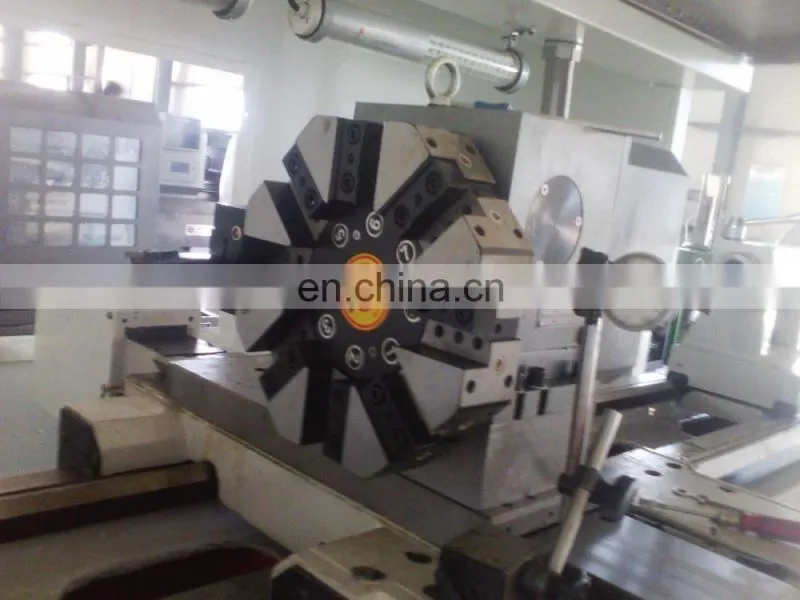

6 station turret 8 station turret

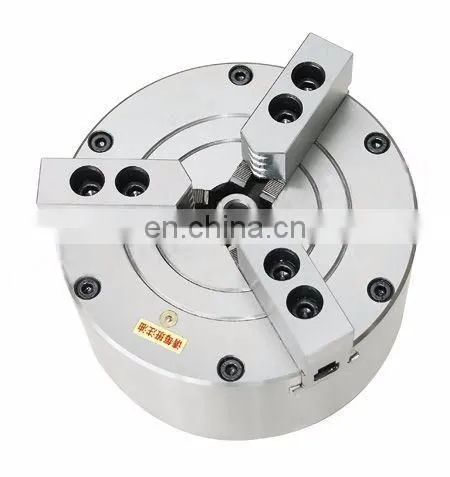

chuck:
Guide rail:
standard exported wooden case
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
Our customer from allover the world:
-
1. How long is the warranty period for the cnc lathe?
Our warranty period is one year, life service. -
2. Is there any requirement for the voltage of the cnc lathe?
Our standard voltage is generally 3-phase 380V, if you need to customize the other voltage please tell us in advance. -
3. May i change the color of the cnc lathe?
The color of the machine can be customized according to the color card provided by you -
4. Could the cnc lathe be customized?
As long as you provide detailed workpiece requirements or drawings, we can customize a special machine for you.
