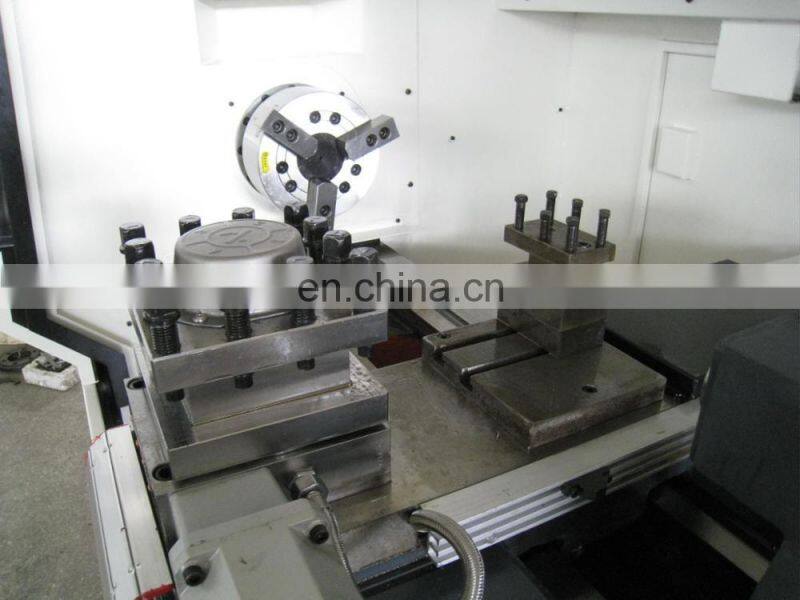

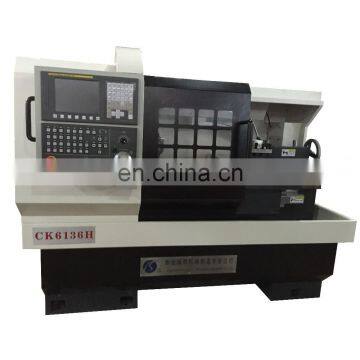

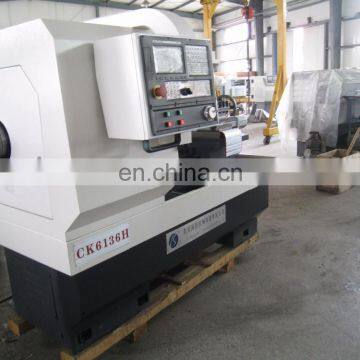

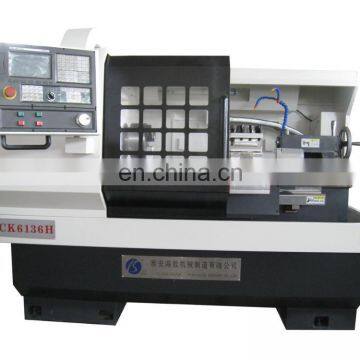

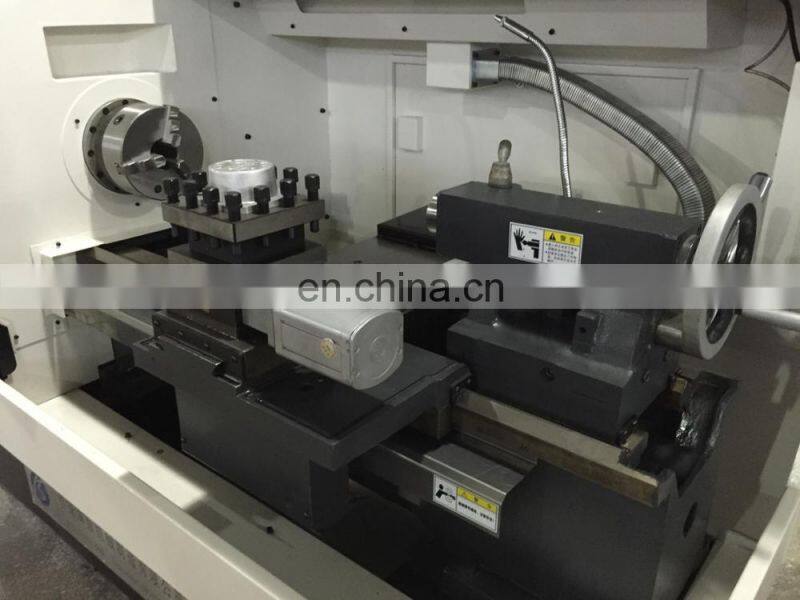

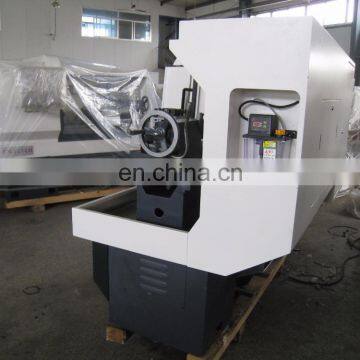

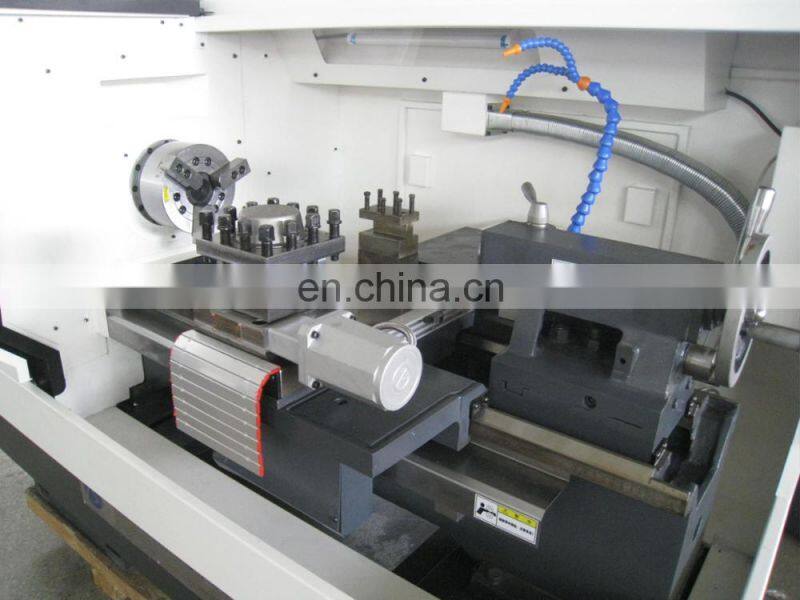

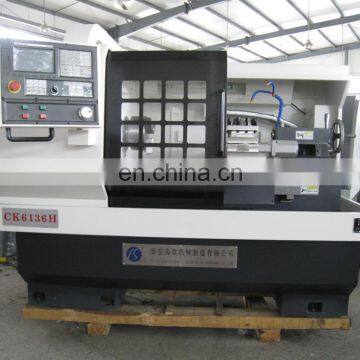

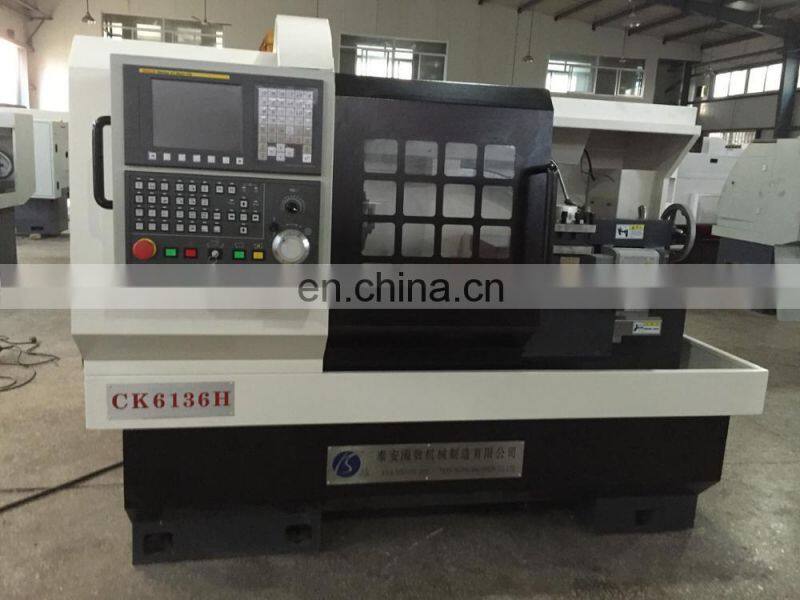

Horizontal Precision CNC Lathe Machine for sale CK6136H
Main features:
1.large turning diameter (φ400mm);
2.high spindle speed (3000rpm);
3.wide rails(335mm)
Standard configuration:

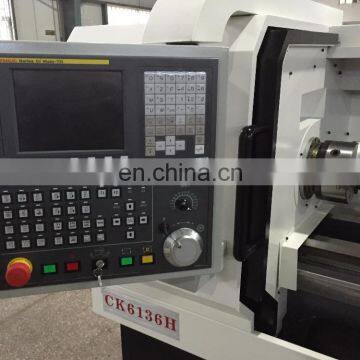

1.CNC system: GSK928,
2.Manual chuck ,
3.Manual tailstock,

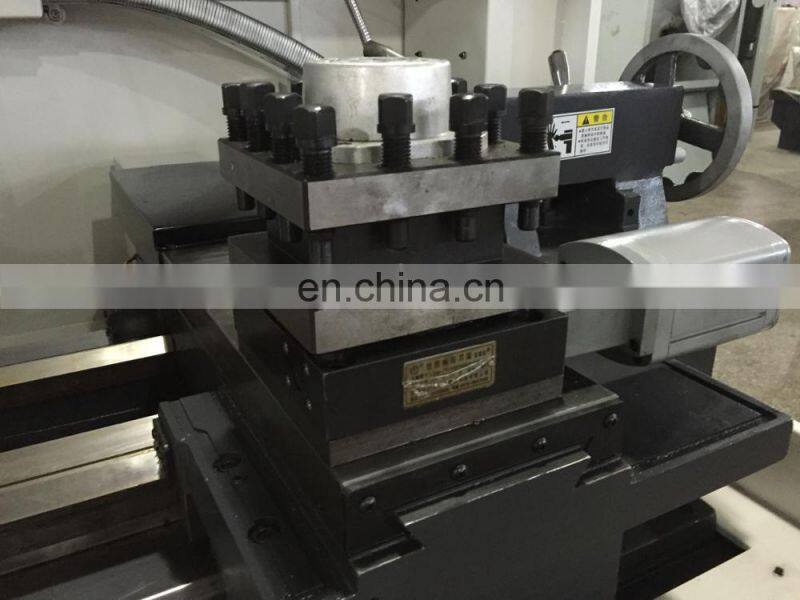

4.Vertical four-station electric turret,
5.Automatic lubrication system,
6.Turning the cooling system.
Select configure
1.CNC system: GSK980, KND, Siemens, Fanuc, etc.,
2.Hydraulic chuck (solid and hollow), pneumatic chuck,
3.Hydraulic tailstock, pneumatic tailstock,
4.Automatic feeder,
5.Horizontal six-station turret, eight-station turret, tool row.
6.Chip conveyor
Main specifications:
Item |
Unit |
CK6136H |
Max. rotation diameter over bed |
mm |
φ400 |
Max. rotation diameter over pallet |
mm |
φ210 |
mm |
750 |
|
Bed foot structure |
|
Separate bed foot |
Bed width |
mm |
335 |
Main transmission form |
|
|
Spindle speed mode |
|
Frequency stepless speed |
Spindle speed range |
r/min |
200-3000 |
Spindle head form |
|
6-A2 |
Spindle bore |
mm |
φ58 |
Spindle hole outside taper |
|
MT6 |
Chuck diameter |
mm |
φ200 |
Main motor power |
kw |
5.5 |
Turret maximum stroke |
mm |
X:260 Z:760 |
Fast-moving feed |
mm/min |
X:6000 Z:8000 |
Repeat positioning accuracy |
mm |
X:0.01 Z:0.015 |
Workpiece accuracy |
|
IT6-IT7 |
Workpiece surface roughness |
|
Ra1.6 |
Dia. of tailstock quill |
mm |
φ60 |
Tailstock quill stroke |
mm |
120 |
Taper of tailstock quill |
|
MT4 |
Repeat positioning accuracy |
mm |
0.008 |
Section of turning tool |
mm |
20×20 |
Size(L×W×H) |
mm |
2150×1450×1650 |
Net weight |
kg |
1800 |

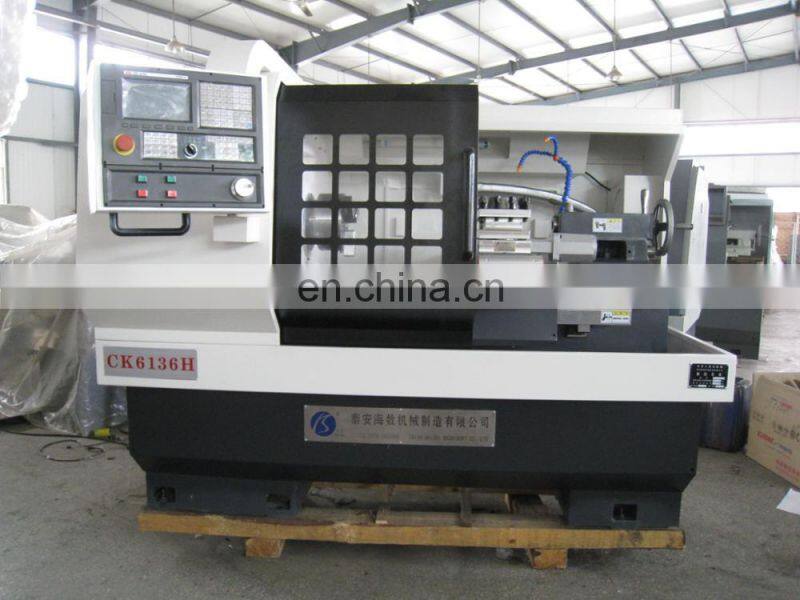

Horizontal Precision CNC Lathe Machine for sale CK6136H with standard export package
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
Taian Haishu Machinery co.,Ltd. is specialized in design production and sales of CNC machine tools. The leading product is "HAISHU" brand CNC lathe,CNC Turning center, Machining center, etc..
Our company is equipped with the ministry of domestic trade and foreign trade, with independent import and export right. Product best-selling more than 20 domestic provinces and municipalities and autonomous regions, and exported to the US, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Lebanon, Czechoslovakia, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Argentina, Russia, Belarus, Lithuania, Serbia, Tunisia, Bahrain, South Africa, South Korea, India, Indonesia, Malaysia, Thailand, the Philippines, Egypt, Iran, Bangladesh, Iraq, Yemen, Mongolia,etc. more than 45 countries.
We have years of CNC machine tool development and manufacturing experience, in order to "science and technology innovation, good faith service" business philosophy in close cooperation with old and new customers, grow together, common development.
