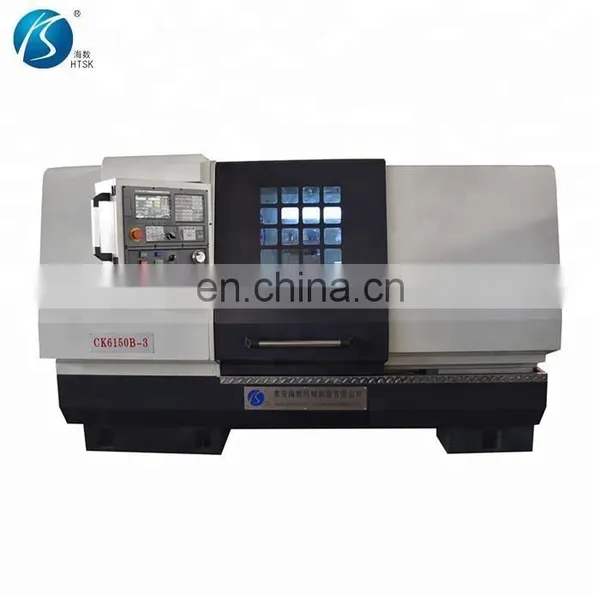

High Speed CNC Turning Lathe CK6150B-3US$ 10,000 - 20,000MOQ: 1 Set
-
Metal CNC Lathe CK6140T With Electric TurretUS$ 5,000 - 20,000MOQ: 1 Set
-
New China Cnc Lathe Bar Feeder Cnc Lathe Price CK6432AUS$ 5,000 - 10,000MOQ: 1 Set

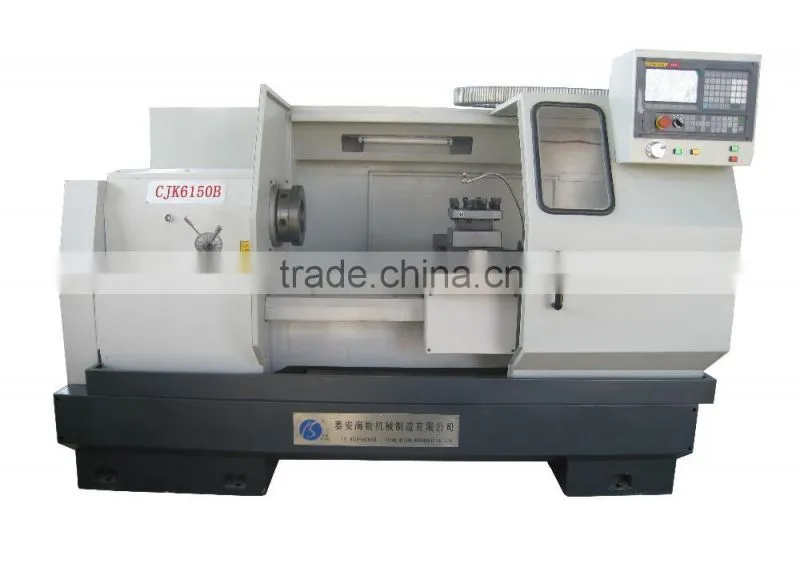

China CNC machine CJK6150B CNC lathe Cheap CNC machine tool

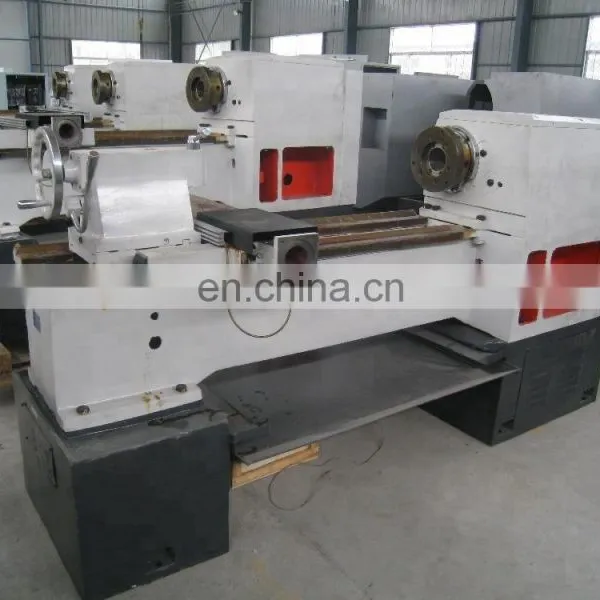

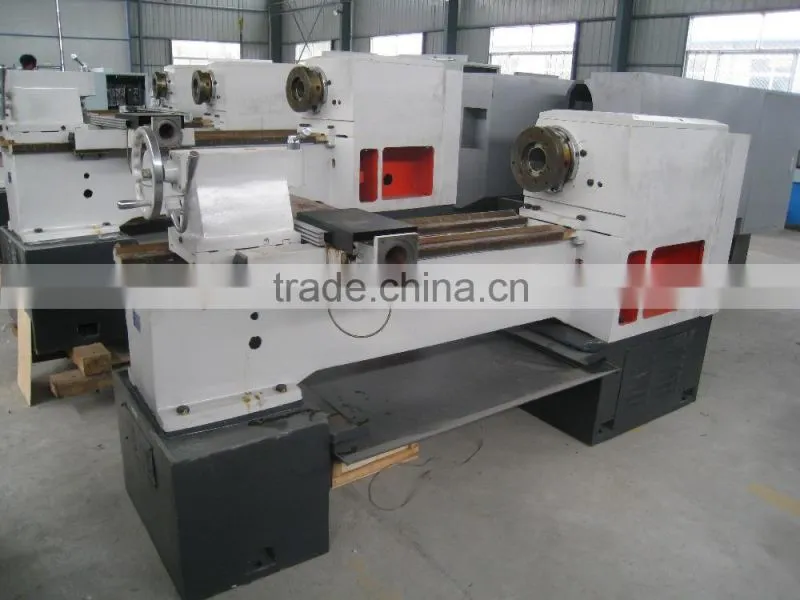

Machine bed

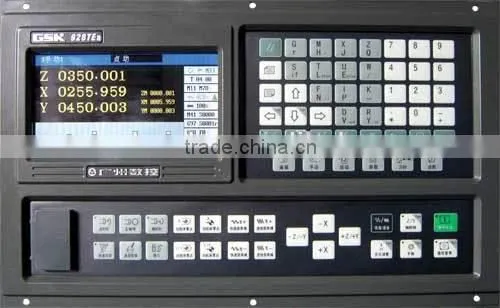

CNC system
Inside the machine Pictures:

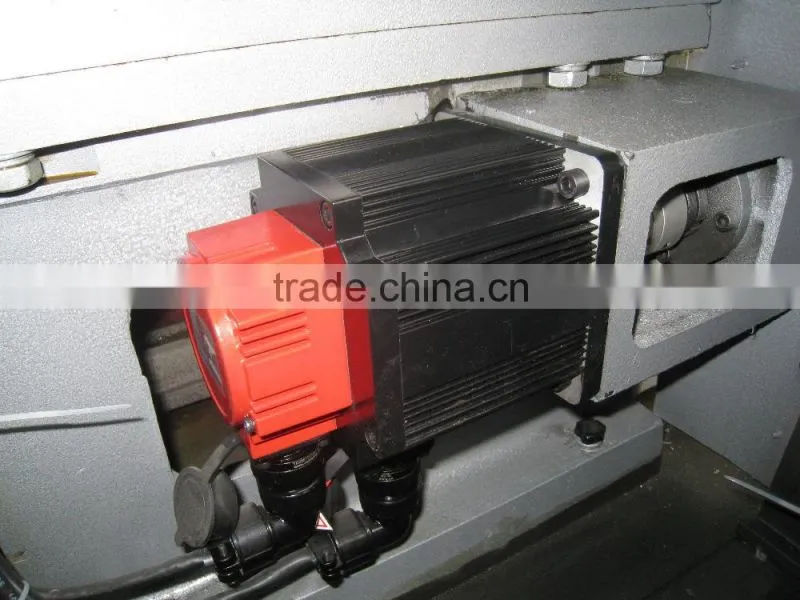

Z-axis servomotor

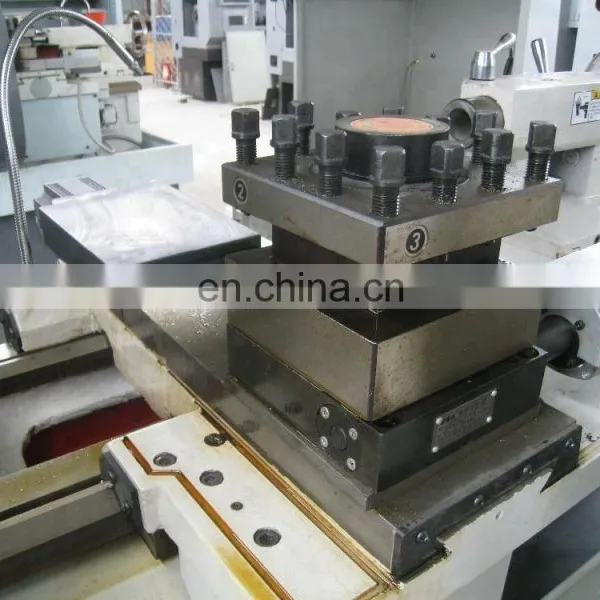

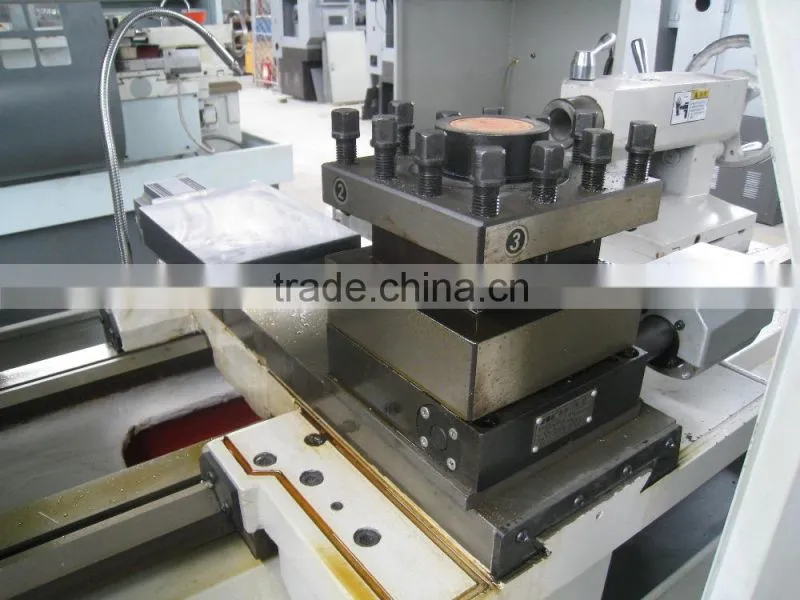

Turret

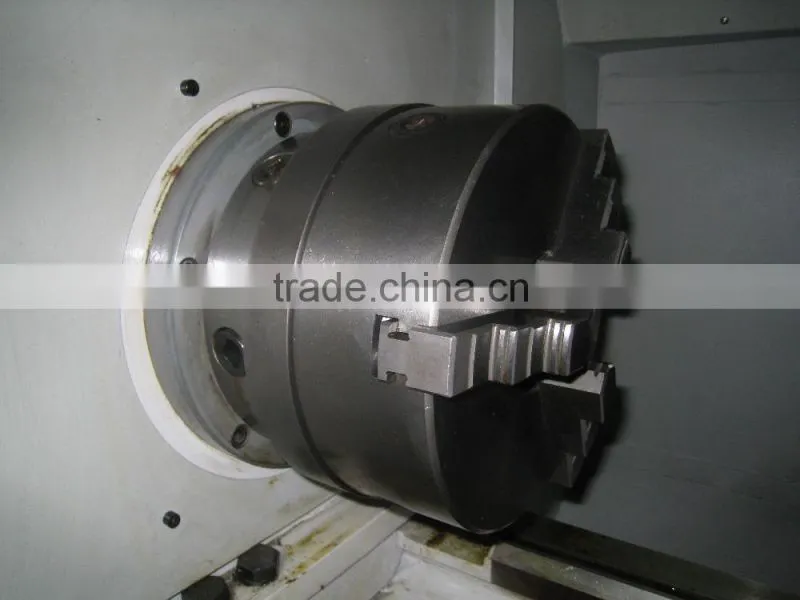

Chuck

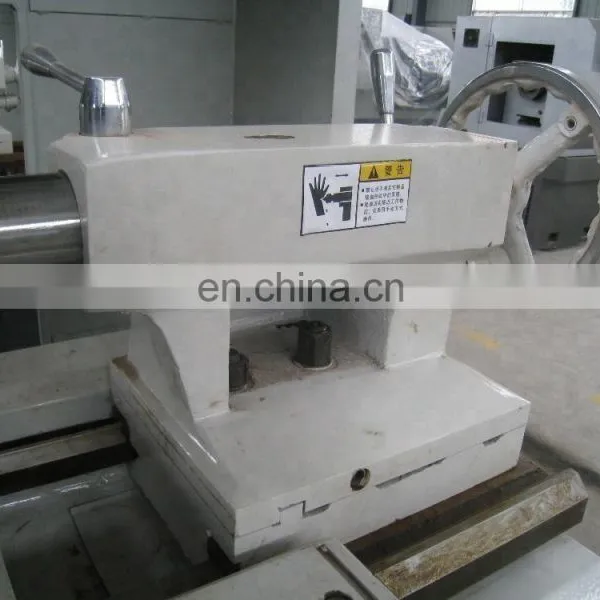

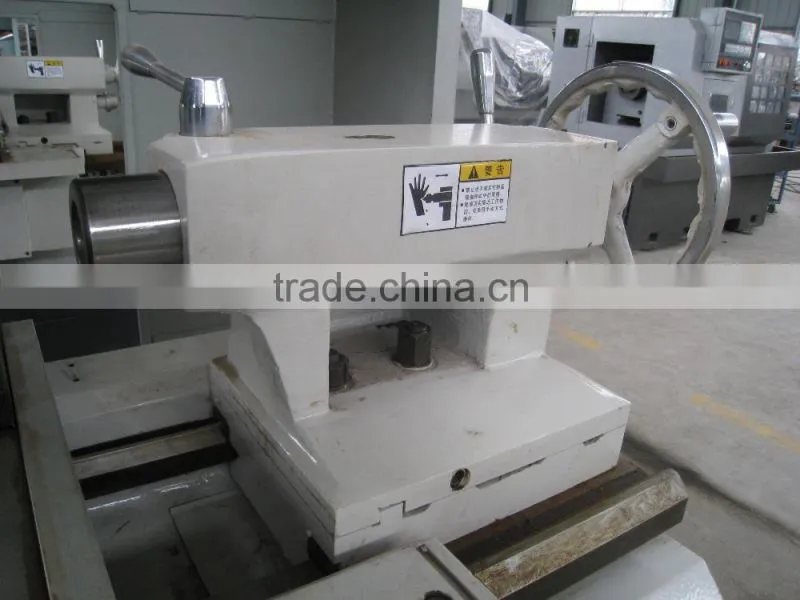

Tailstock

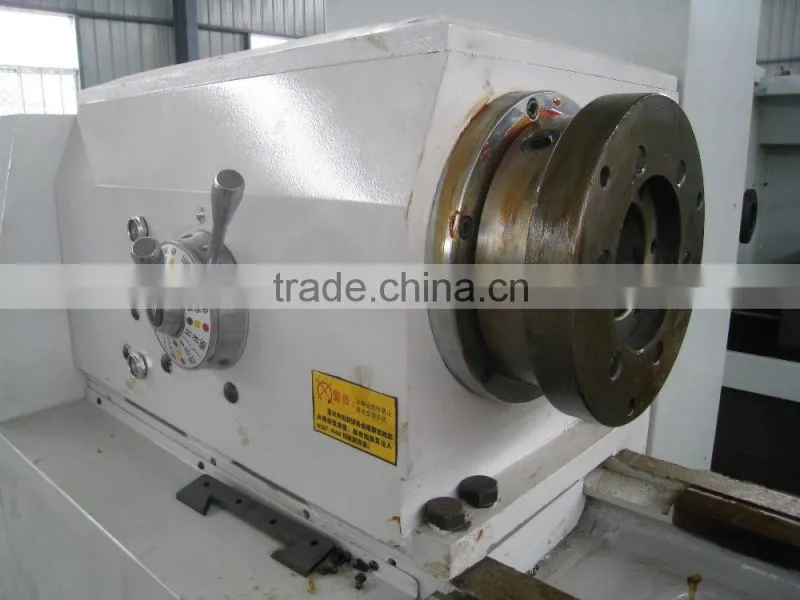

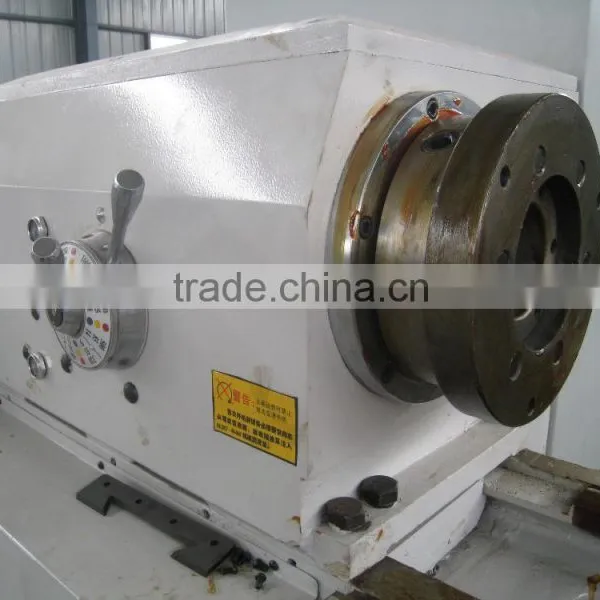

Headstock
Speed Conversion
Automatic lubrication pump
Machine Tool Accessories
1. Technical parameters
items |
parameters |
Maximum workpiece swing diameter over bed |
Φ500mm |
Dragged on board the maximum workpiece swing diameter |
Φ290mm |
Maximum length of workpiece |
750/1000/1500mm |
Range of spindle speeds |
24, 9~1600rpm |
Spindle bore diameter |
Φ82mm |
Skateboard maximum stroke (X) |
290mm |
Width of guide rails |
390mm |
The form of spindle head |
D-8 |
Taper of spindle bore |
1:20 |
Turret Number of tool |
4/6/8/ or row of knife |
Tool cross-section specifications |
25mm×25mm |
Motor minimum setting unit |
Z: 0.001mm , X: 0.001mm |
Arbor fast forward speed |
Z: 10m/min, X: 8m/min |
Tailstock quill taper |
MT5 |
Tailstock quill maximum moving distance |
150mm |
Power of main motor |
7.5KW |
The lathe Dimensions (L × W × H) |
2600/2850/3350 mm×1300 mm×1750mm |
Lathe Net |
2700/2900/3300kg |
2. main features
(1) 24 Gear Shift, High torque, high processing efficiency and high accuracy.
(2) Spindle diameter increases(φ82mm).
(3) The width of the bed: 390mm.
3. Configuration
(1) Control system optional: Guangshu's GSK, Beijing's KND, Germany's Siemens, Japan's Fanuc, etc..
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four, horizontal six, horizontal eight, rows of knives and so on.
(5) Lubrication configuration: automatic oil lubrication system.
4. Uses
Suitable for rough turning and precision machining of steel castings, iron castings and other materials.
Wooden case or as per clients' requirements.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
3.6.Customized or special design is welcome.
