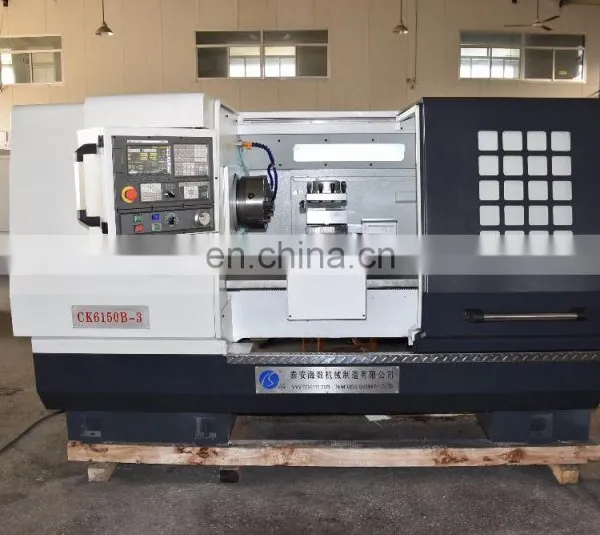

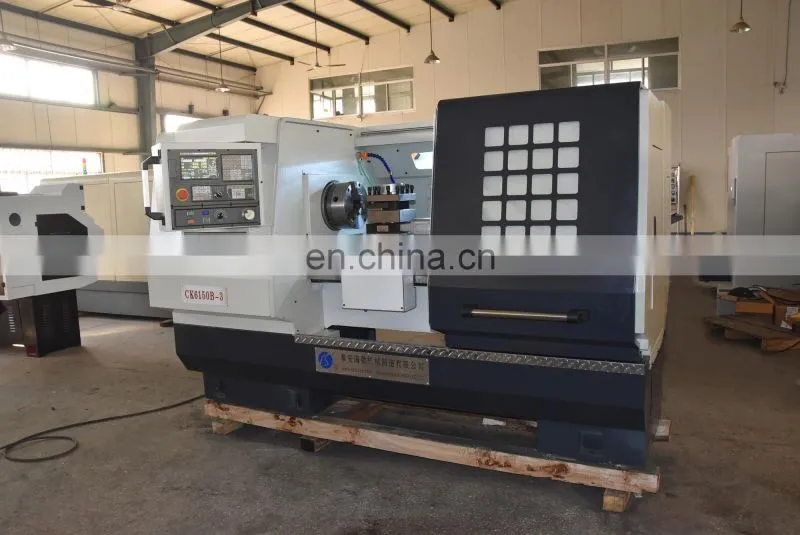

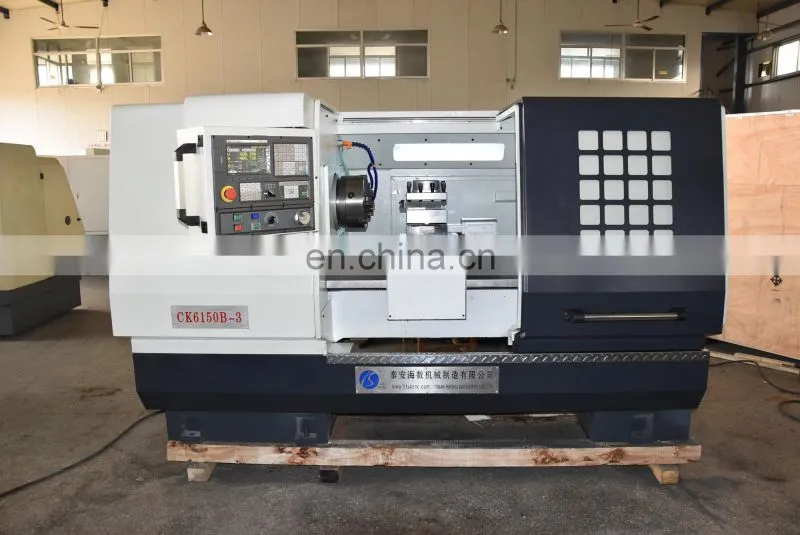

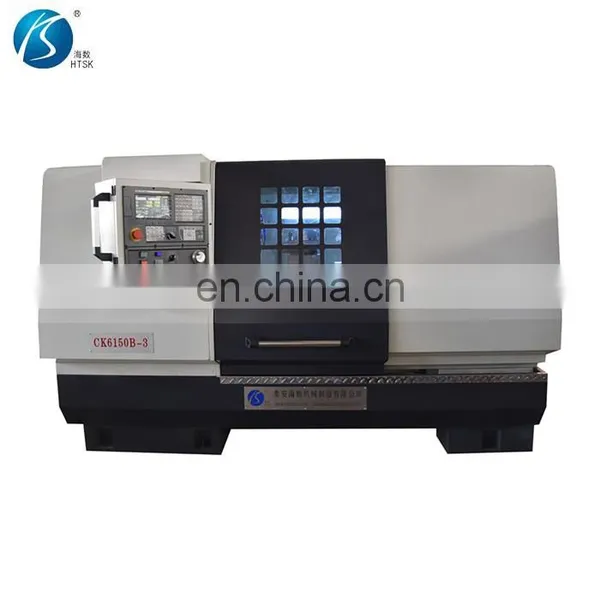

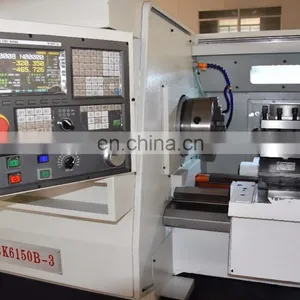

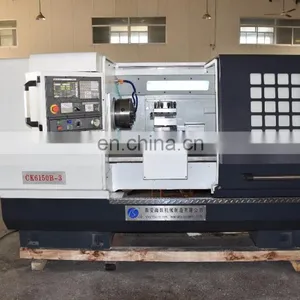

High Speed CNC Turning Lathe CK6150B-3
CNC Turning Lathe CK6150B-3 designed and fabricated by HAISHU Machinery is a kind of widely used horizontal CNC lathe equipped with powerful CNC system, a four-station electric turret or a horizontal six-station turret. Our CNC turning lathe CK6150B-3×1000 orCK6150B-3×1500 provide an affordable flexibility for metal cutting, turning or drilling functions. This kind of CNC lathe provides stability, rigidity and accuracy for a variety of applications.
Technical paramater
items |
parameters |
Maximum workpiece swing diameter over bed |
Φ500mm |
slide the maximum workpiece swing diameter |
Φ290mm |
Maximum length of workpiece |
750/1000/1500mm |
Range of spindle speeds |
20-100;100~550;400~1600rpm |
Spindle bore diameter |
Φ82mm |
Skateboard maximum stroke (X) |
290mm |
Width of guide rails |
390mm |
The form of spindle head |
D-8 |
Taper of spindle bore |
1:20 |
Turret Number of tool |
4/6/8/ or row of knife |
Tool cross-section specifications |
25mm×25mm |
Motor minimum setting unit |
Z: 0.001mm , X: 0.001mm |
Arbor fast forward speed |
Z: 10m/min, X: 8m/min |
Tailstock quill taper |
MT5 |
Tailstock quill maximum moving distance |
150mm |
Power of main motor |
7.5KW |
The lathe Dimensions (L × W × H) |
2600/2850/3350 mm×1300 mm×1750mm |
Lathe Net |
2600/2800/3200kg |
CNC Turning Lathe CK6150B-3 Configurations
Standard Configuration

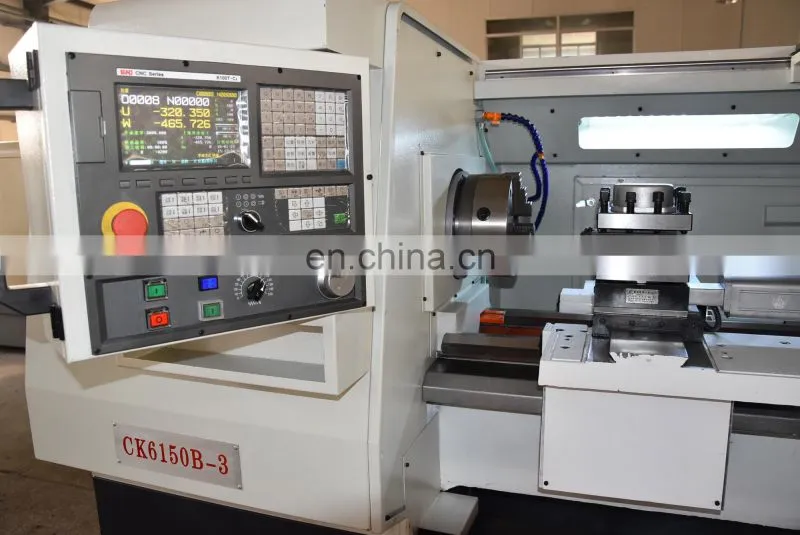

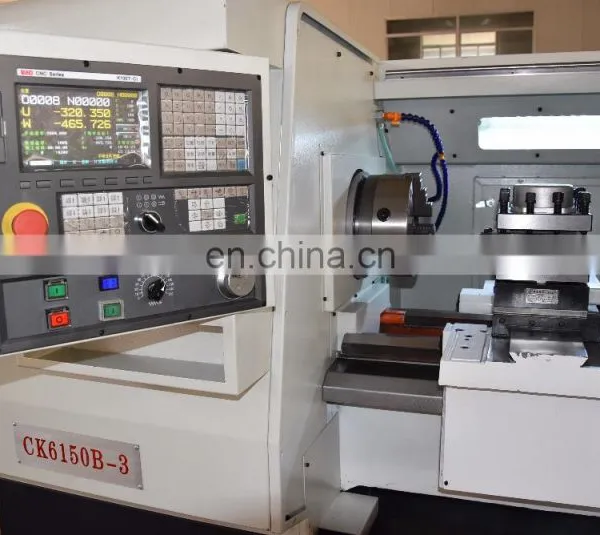

- CNC system: GSK980
- Manual chuck (φ250mm)
- Manual tailstock

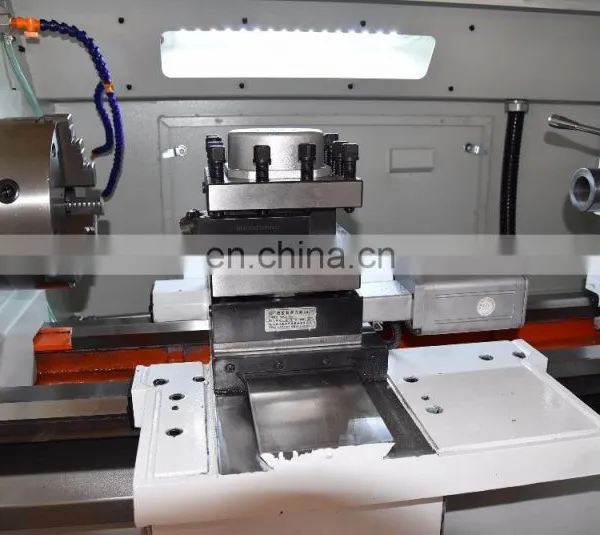

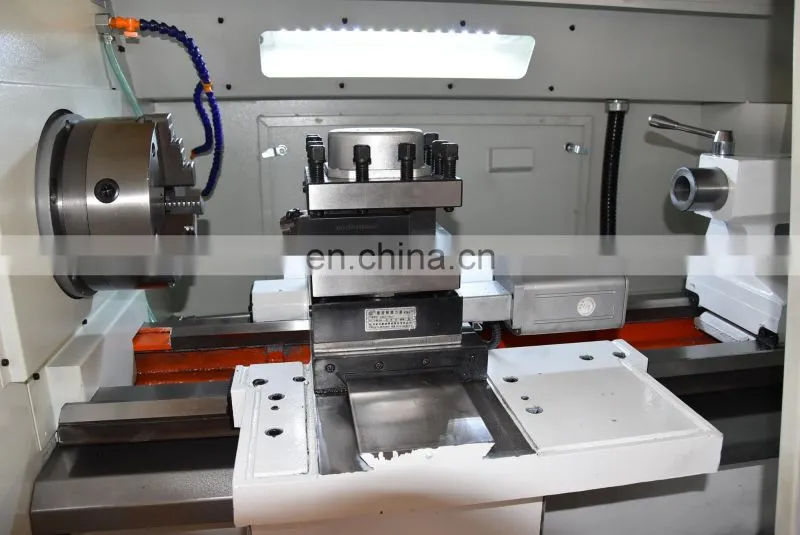

- Vertical four-station electric turret
- Automatic lubrication system
- Turning the cooling system
Optional configuration
- CNC system: KND, Siemens, Fanuc, etc.
- Manual chuck (φ320mm), hydraulic chuck (solid and hollow), pneumatic chuck
- Hydraulic tailstock, pneumatic tailstock
- Automatic feeder
- Horizontal six-station turret, eight-station turret, tool row
- The spindle center height increase
Uses
Suitable for rough turning and precision machining of steel castings, iron castings and other materials.

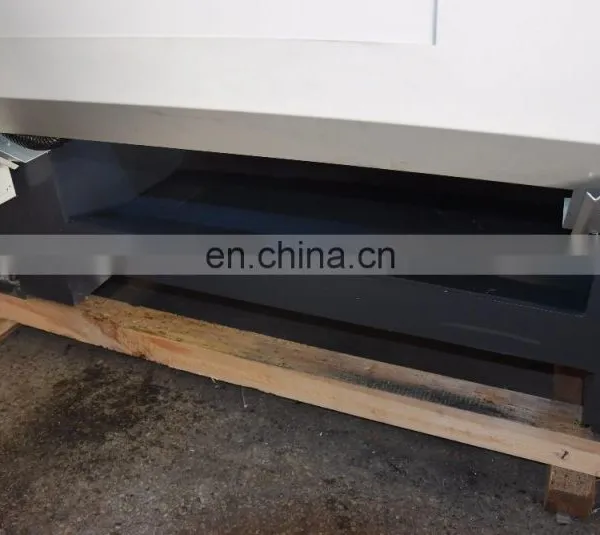

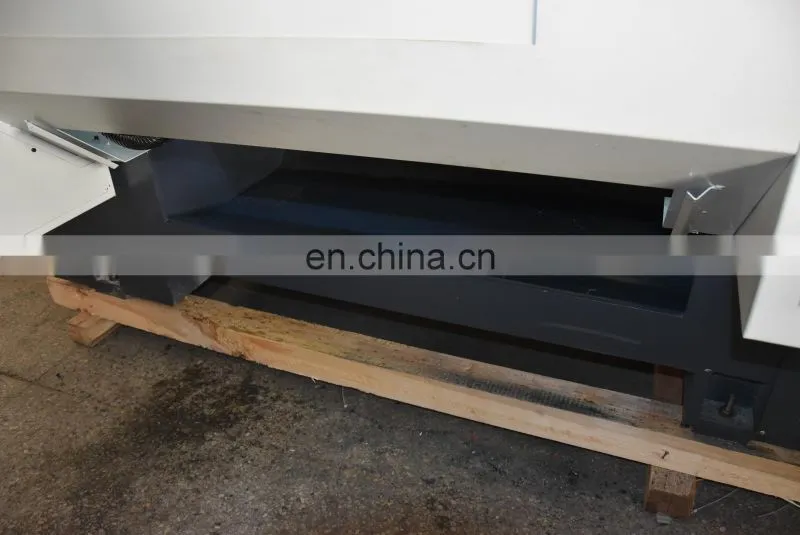

standard exported wooden case
