Economical CNC lathe CK6432A for sale

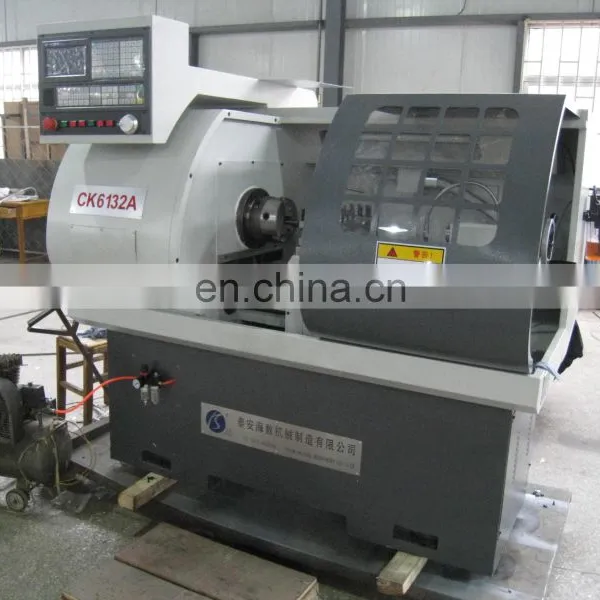

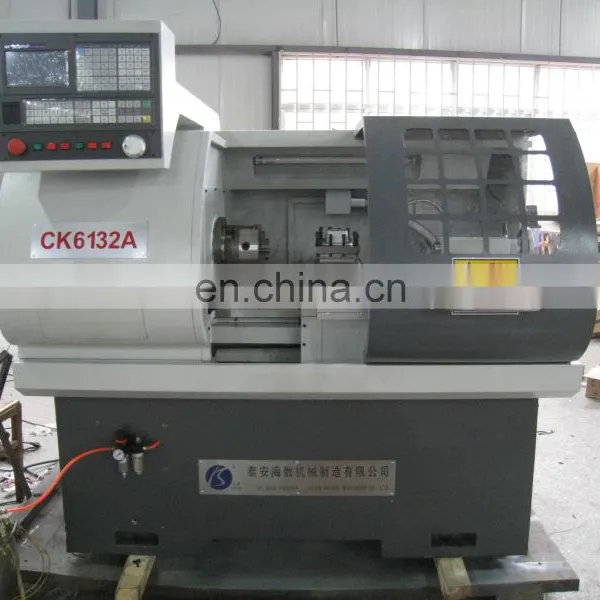

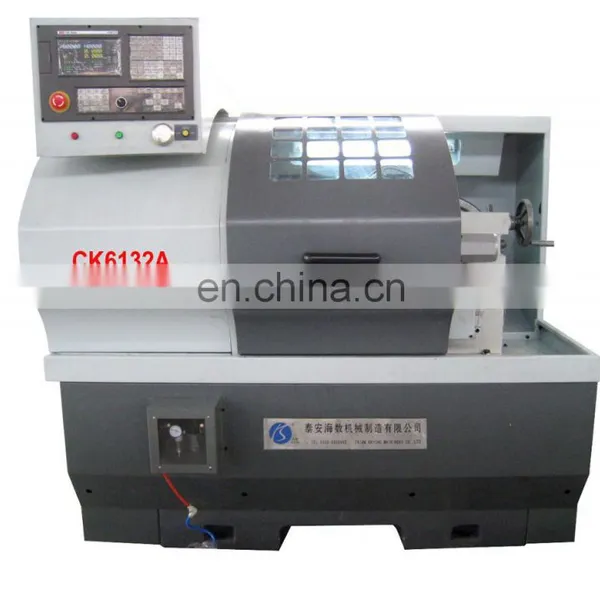

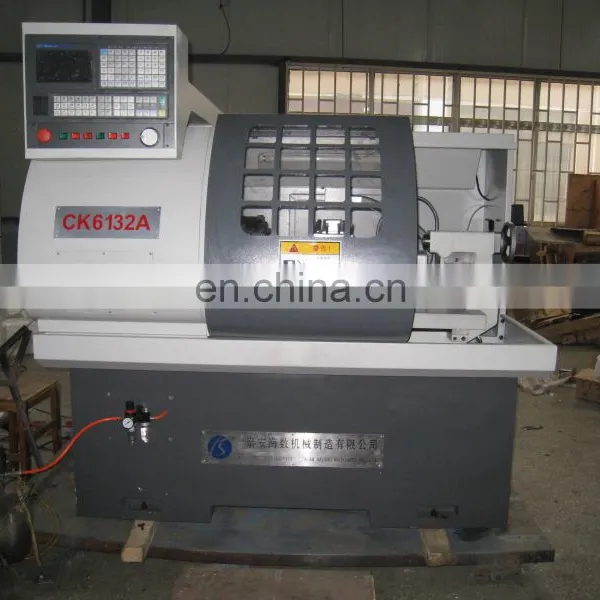

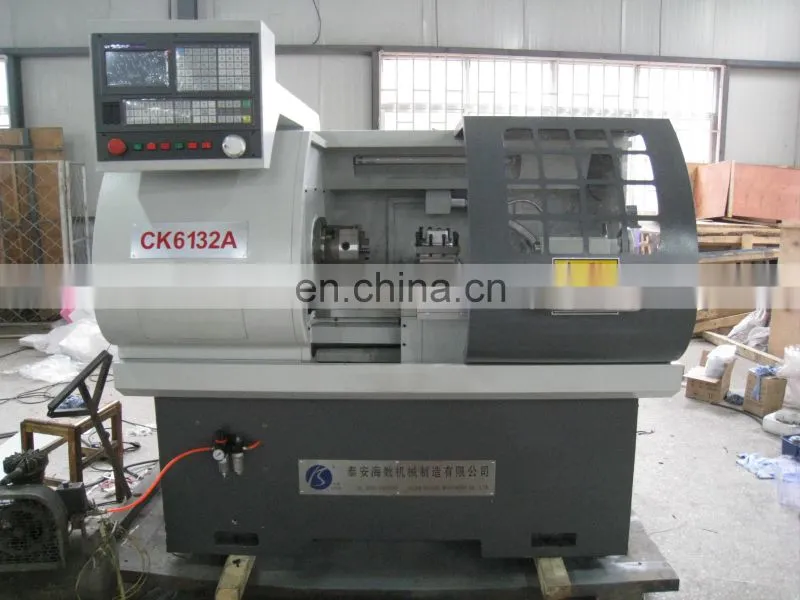

Economical CNC lathe CK6432A Appearance:
Economical CNC lathe CK6432A is a kind of widely used horizontal CNC lathe equipped with powerful CNC system, a four-station electric turret, automatic lubrication system and the cooling system. Economical CNC lathe CK6432A is preferable for for metal cutting, turning or drilling functions. This kind of China Mini CNC Lathe Tool provides stability, rigidity and accuracy for a variety of applications. All our China Mini CNC Lathe Tool can be custom design and fabricate by your requirement.
Economical CNC lathe CK6432A Specifications:
| No | Item | Unit | Specifications |
|---|---|---|---|
| 1 | Max. rotation diameter over bed | mm | φ360 |
| 2 | Max.rotation diameter over pallet | mm | φ160 |
| 3 | Maximum workpiece length | mm | 500/750 |
| 6 | Main transmission form | mm | MT6 |
| 9 | Spindle speed range | r/min | 150-2500 |
| 10 | Spindle bore | mm | φ60 |
| 12 | Main motor power | KW | 4 |
| 15 | Fast-moving feed | mm/min | X-6000 Z-8000 |
| 20 | Tailstock quill stroke | mm | 100 |
| 21 | Taper of tailstock quill | MT4 | |
| 22 | Arbor Section | mm | 20×20 |
| 23 | Machine Size(L×W×H) | mm | 1600/1850×1100×1550 |
| 24 | Net weight | KG | 1275/1450 |

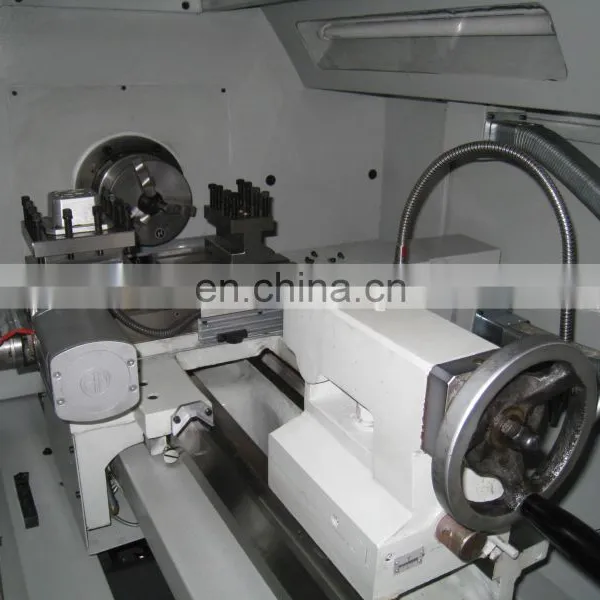

Economical CNC lathe CK6432A Main Parts:
Economical CNC lathe CK6432A Standard Configurations:
Standard Configuration
CNC system – KND
Manual chuck
Manual tailstock

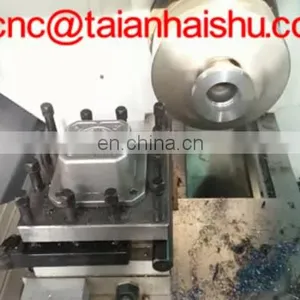

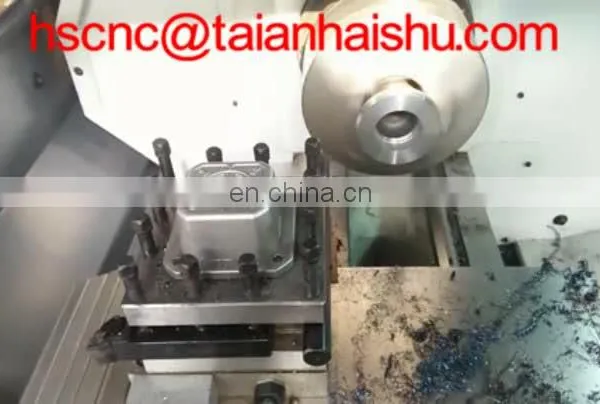

Vertical four-station electric turret
Automatic lubrication system
The cooling system for turning
Economical CNC lathe CK6432A Optional Configurations:
CNC system: GSK, Siemens, Fanuc, etc
Main servo motor
Hydraulic chuck (solid and hollow), pneumatic chuck, manual collet, pneumatic collet
Hydraulic tailstock, pneumatic tailstock
Automatic feeder
Horizontal 6 turret station, tool row
Economical CNC lathe CK6432A workpieces:

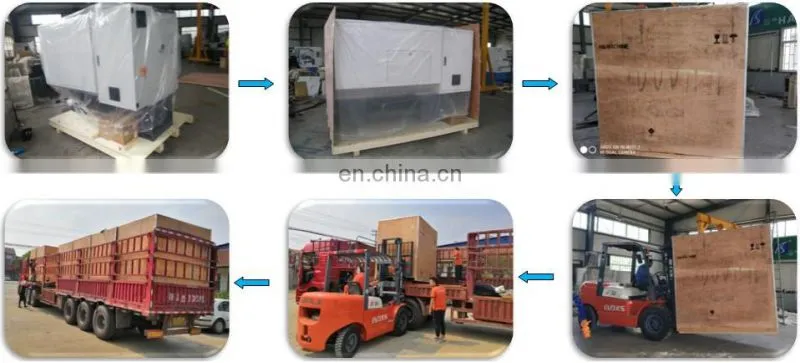

Economical CNC lathe CK6432A Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.
About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative products include CNC lathe, CNC milling machine, CNC machining center, CNC turn mill machine, CNC tool grinding machine, CNC pipe threading lathe, CNC wood lathe, stone CNC machine, CNC root canal file grinder and custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing Small CNC lathe but also providing custom product design and after sale services. Welcome contact us for detailed information.
