High precision small CNC lathe machine CK6132A

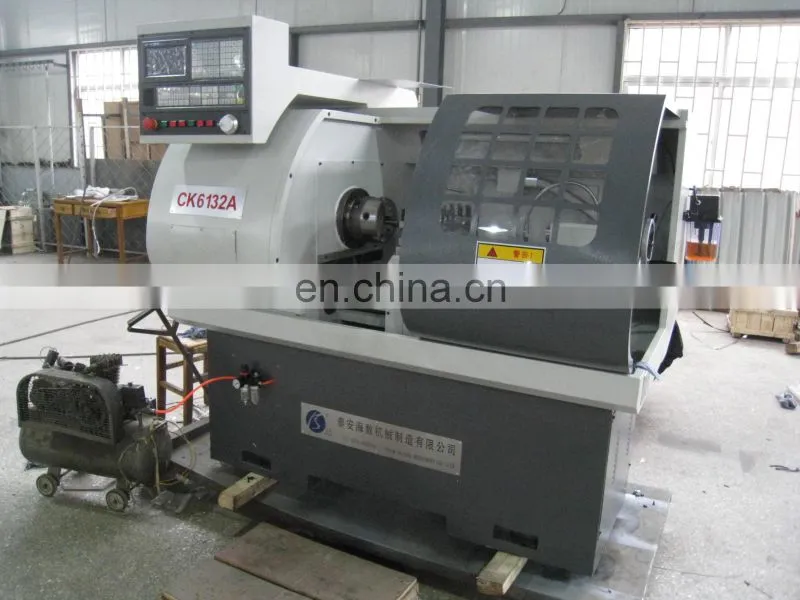

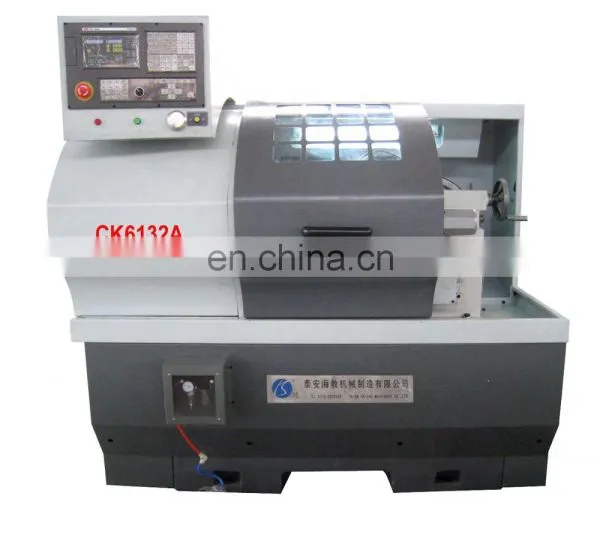

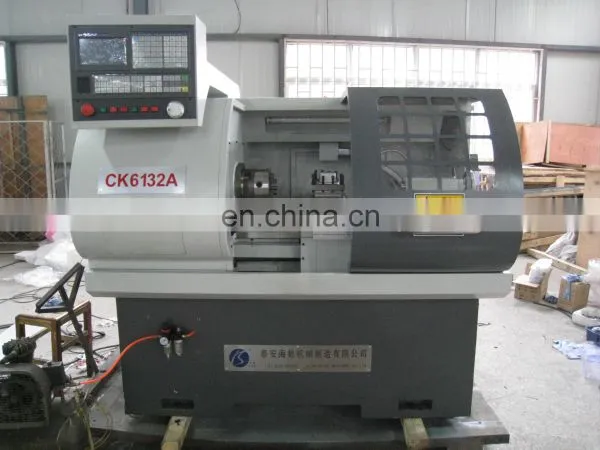

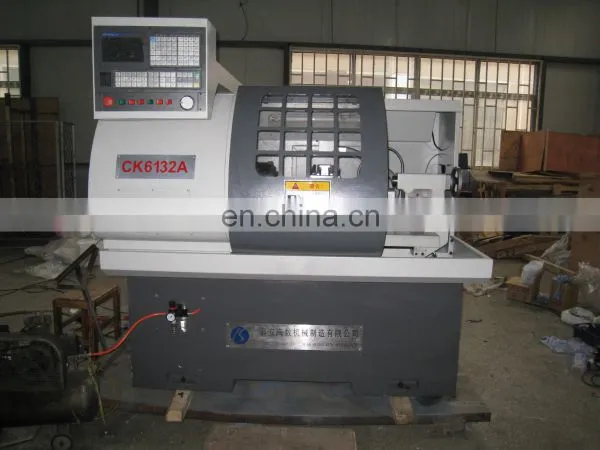

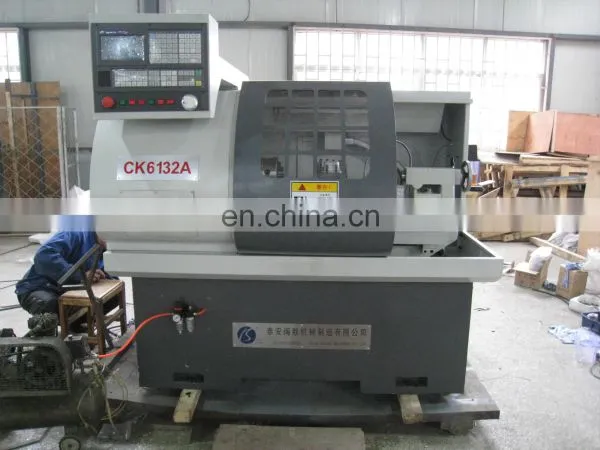

High precision small CNC lathe machine CK6132A Appearance:
High precision small CNC lathe machine CK6132A is a kind of widely used horizontal CNC lathe equipped with powerful CNC system, a four-station electric turret, automatic lubrication system and the cooling system. High precision small CNC lathe machine CK6132A is preferable for for metal cutting, turning or drilling functions. This kind of China Mini CNC Lathe Tool provides stability, rigidity and accuracy for a variety of applications. All our China Mini CNC Lathe Tool can be custom design and fabricate by your requirement.
High precision small CNC lathe machine CK6132A Specifications:
| No | Item | Unit | Specifications |
|---|---|---|---|
| 1 | Max. rotation diameter over bed | mm | φ320 |
| 2 | Max.rotation diameter over pallet | mm | φ140 |
| 3 | Maximum workpiece length | mm | 450 |
| 6 | Taper of spindle bore | mm | MT5 |
| 7 | Main drive form | Independent spindle | |
| 8 | Spindle speed mode | stepless speed | |
| 9 | Spindle speed range | r/min | 100-2000 |
| 10 | Spindle bore | mm | φ42 |
| 11 | Chunk Diameter | mm | φ160 |
| 12 | Main motor power | KW | 3 |
| 14 | Turret maximum stroke | mm | X-260; Z-450 |
| 15 | Fast-moving feed | mm/min | X-6000 Z-8000 |
| 16 | Repeat positioning accuracy | mm | X-0.01 Z-0.015 |
| 17 | Workpiece accuracy | IT6-IT7 | |
| 18 | Workpiece surface roughness | Ra1.6 | |
| 19 | Diameter of tailstock quill | mm | φ60 |
| 20 | Tailstock quill stroke | mm | 100 |
| 21 | Taper of tailstock quill | MT4 | |
| 22 | Arbor Section | mm | 16*16 |
| 23 | Machine Size(L×W×H) | mm | 1815*1165*1750 |
| 24 | Net weight | KG | 1200 |
High precision small CNC lathe machine CK6132A Main Parts:
High precision small CNC lathe machine CK6132A Standard Configurations:
Standard Configuration
CNC system – KND
Manual chuck
Manual tailstock
Vertical four-station electric turret
Automatic lubrication system
The cooling system for turning
High precision small CNC lathe machine CK6132A Optional Configurations:
CNC system: GSK, Siemens, Fanuc, etc
Main servo motor
Hydraulic chuck (solid and hollow), pneumatic chuck, manual collet, pneumatic collet
Hydraulic tailstock, pneumatic tailstock
Automatic feeder
Horizontal 6 turret station, tool row
High precision small CNC lathe machine CK6132A workpieces:
High precision small CNC lathe machine CK6132A Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.
About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative products include CNC lathe, CNC milling machine, CNC machining center, CNC turn mill machine, CNC tool grinding machine, CNC pipe threading lathe, CNC wood lathe, stone CNC machine, CNC root canal file grinder and custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing Small CNC lathe but also providing custom product design and after sale services. Welcome contact us for detailed information.
