Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Price of Vertical Shaper Machine B5032 for Metal Vertical Slotting Machine
Price of Vertical Shaper Machine B5032 for Metal Vertical Slotting Machine
US$ 7,380 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Model Number:
B5032
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Popular Model B5020 Factory Sale Price Cheap Keyway Slotting MachineUS$ 8,000 - 10,000MOQ: 1 Set -
Model BK5018 Good Price CNC Slotting MachineUS$ 10,000 - 13,000MOQ: 1 Set
-
NEW ARRIVAL Cheap SL100 Small Slotting MachineUS$ 1,000 - 1,500MOQ: 1 Set
-
Popular Model B5016C Factory Sale Price Cheap Slotting MachineUS$ 7,000 - 9,000MOQ: 1 Set
-
XK7136 XK7136C Vertical Mini CNC Milling Machine Price With ISO9001US$ 14,500 - 23,000MOQ: 1 Set
Brand Name
WMT
Place of Origin
Anhui, China
Model Number
B5032
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Main Specification
| Main Technology Data | Model B5020 | Model B5032 |
| Ram stroke | 220mm | 340mm |
| Max length of the ram slotting | 200mm | 320mm |
| Ram movement times | 32.50.80.125 time min | 20.32.50.80 time min |
| Tiltram | 0-8° | 0-8° |
| Table dia. | 500mm | 630mm |
| Vertical adjustment of ram distance | 230mm | 315mm |
| Head bearing surface to the bed from the front walls | 485mm | 600mm |
| Between the work surface to the lower carriage distance | 320mm | 490mm |
| Table max.longitudinal movement distance | 500mm | 630mm |
| Table max. lateral movement distance | 500mm | 560mm |
| Max. swivel table | 360° | 360mm |
| Table aspect motorized feed range | 0.08-1.21 | 0.08-1.21 |
| Table rotation feed range | 0.052-0.783 | 0.052-0.783 |
| Main motor | 3kw | 4kw |
| Motor speed (calulated value) | 1430 r/min. | 960 r/min. |
| Machine weight | 2200 kg | 3000 kg |
| Overal dimension | 1916×1305×1995mm | 2261×1495×2245mm |

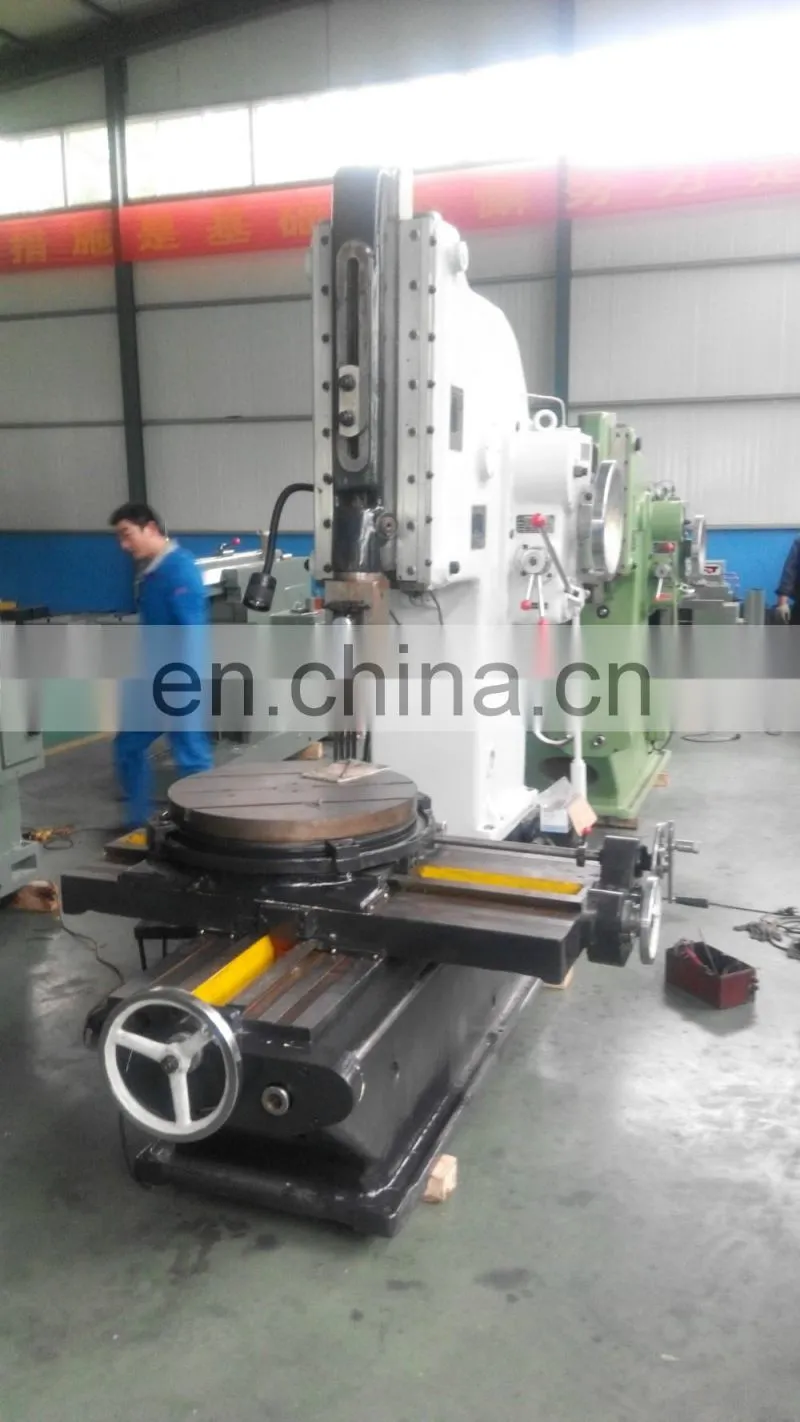

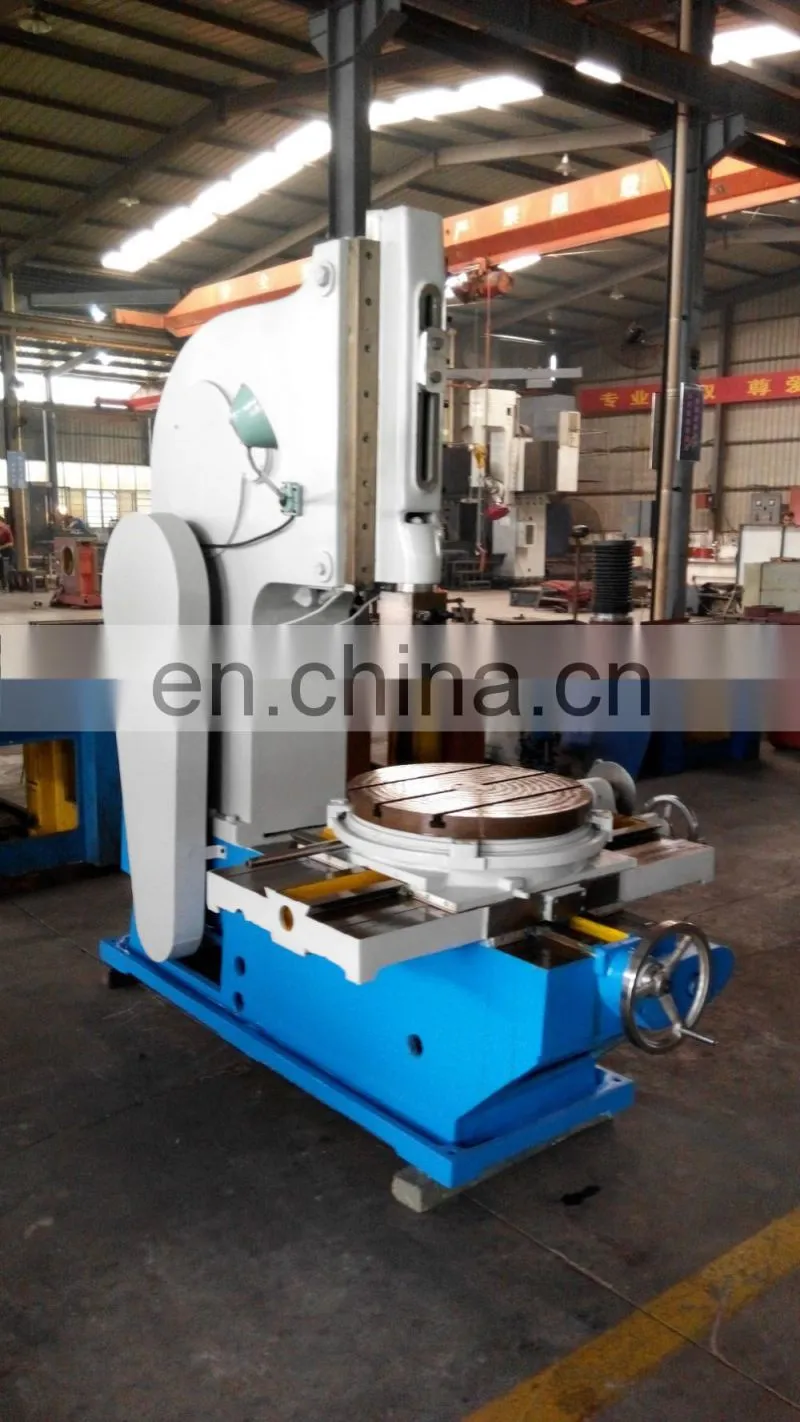

Machine details
sample products
Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
