XK7136 XK7136C Vertical Mini CNC Milling Machine Price With ISO9001
US$ 14,500 - 23,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Model Number:
XK7136
Payment & Shipping
Payment Methods:
Port of Shipment:
Mini CNC milling machine delivered at Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XK7125 Vertical CNC Milling Machine Price With CEUS$ 9600.00 - 15.00MOQ: 1 Set -
Model XK7118 Mini Precision Hobby CNC Milling Machine With CEUS$ 7,950 - 14,500MOQ: 1 Set
-
Model VM300 Mini CNC Milling Machine With Good PriceUS$ 5,400 - 7,500MOQ: 1 Set
-
XK7132 Precision Vertical CNC Milling Machine Price With CE CertificateUS$ 12,300 - 12,800MOQ: 1
-
VMC850 Vertical Machining Center for MetalUS$ 30400.00 - 15.00MOQ: 1 Set
Brand Name
WMT
Place of Origin
Anhui, China
Model Number
XK7136
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

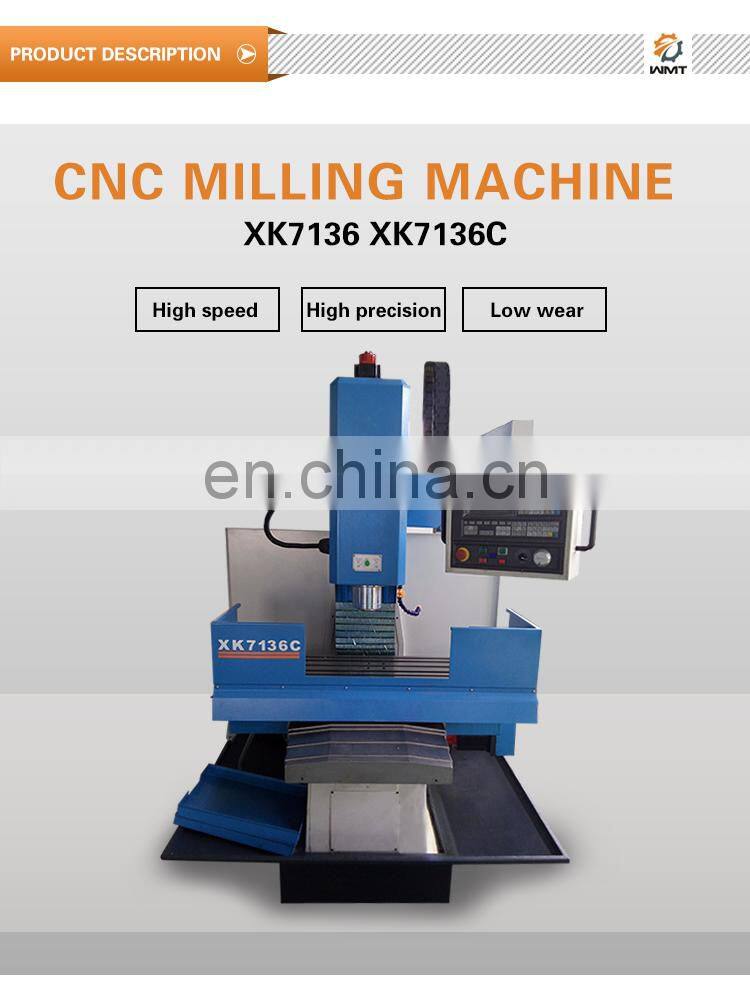

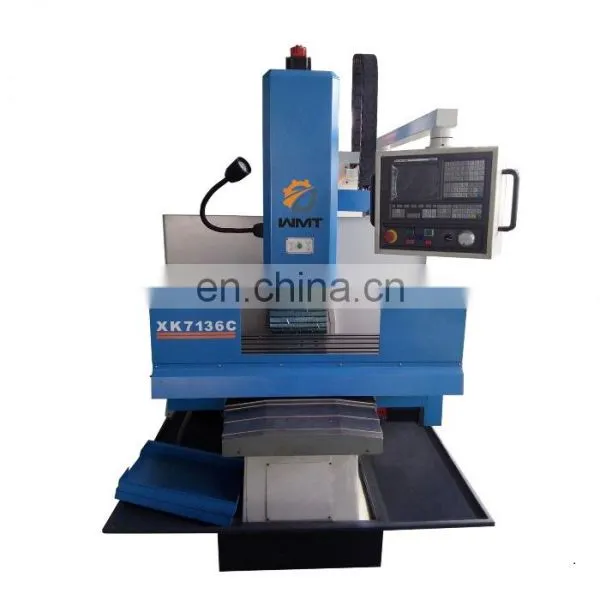

XK7136 XK7136C
| Specification | XK7136 XK7136C |
| Main motor power | 5.5kw |
| Highest spindle speed | 8000rpm |
| X/Y/Z to the motor torque | 7.7/7.7/7.7 |
| The spindle taper hole | BT40 |
| Table size | 1250x360mm |
| X/Y/Z axis travel | 900x400x500mm |
| Distance between spindle center and surface column | 460mm |
| The distance of spindle end face to the workbench | 100-600mm |
| Rapid movement(X/Y/Z) | 5/5/6m/min |
| T-slot | 3/18/80 |
| Table load | 300kgs |
| Positioning accuracy | 0.02mm |
| Repeat posotioning accuracy | 0.01mm |
| Machine tool appearance size(L x W x H) | 2200x1850x2350mm |
| Net.Weight | 2200kgs |

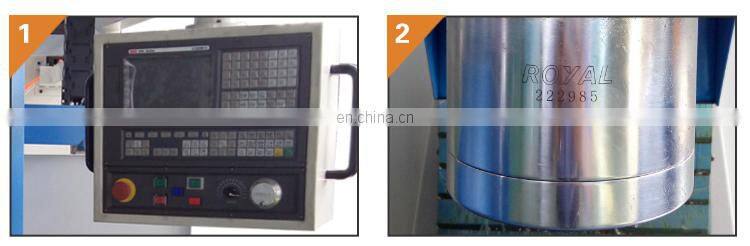

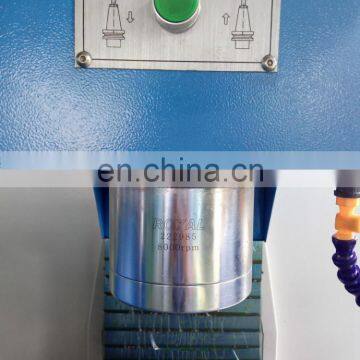

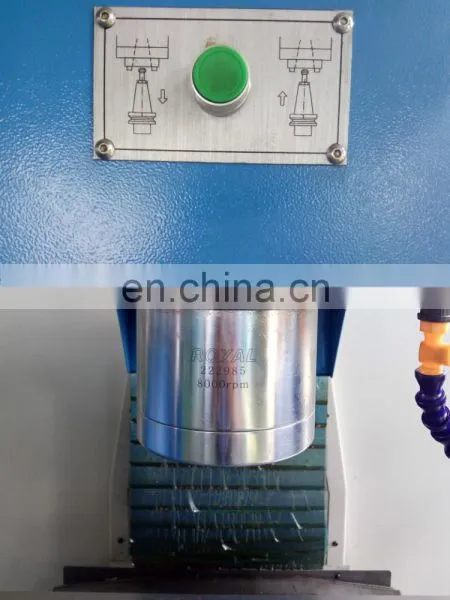

CNC controller Spindle
Fanuc, Siemens, GSK are available Royal spindle with 8000rpm speed

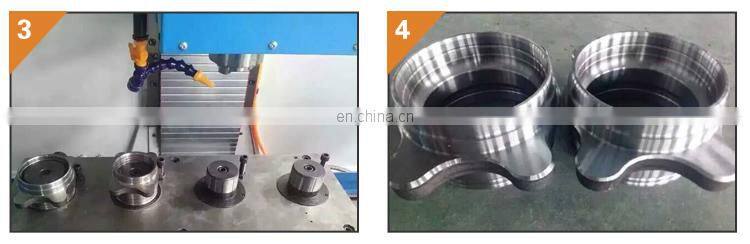

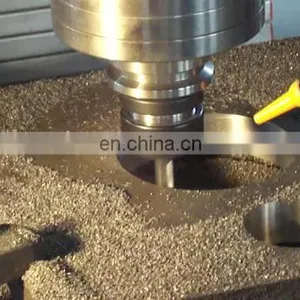

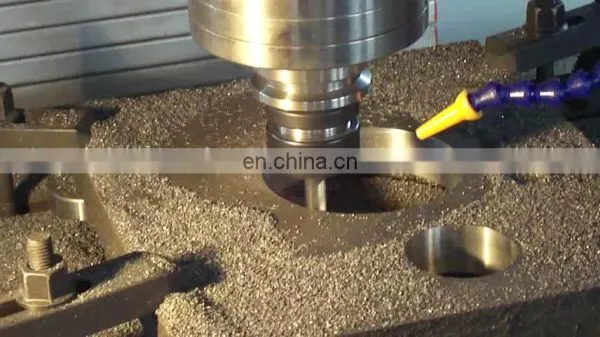

CNC workpiece
CNC milling machine workpiece for reference

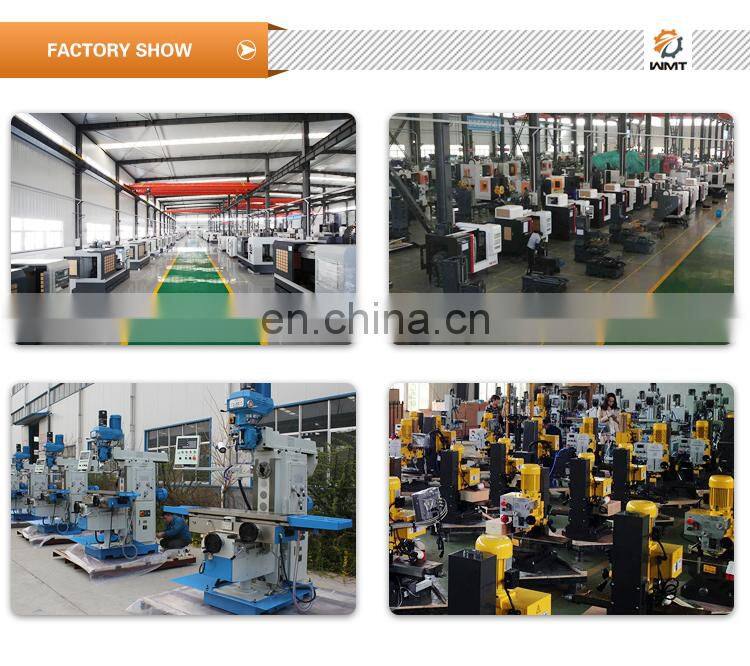

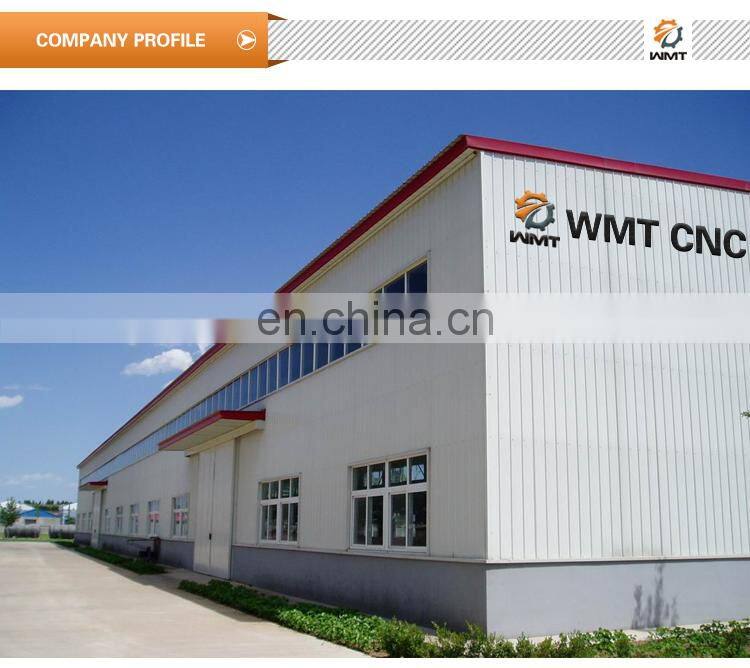

Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
Send Inquiry to This Supplier
Business Type
Government ministry/Bureau/Commission
Year Established
2015
Annual Export Value
US$1.5 Million - US$2.5 Million
Main Markets
Southern Europe, Northern Europe, Central America, Western Europe, Eastern Asia, Mid East, Oceania, Africa, Southeast Asia, Eastern Europe, South America, North America
