Machine grinder MY1224 for precision metal grinding
- 50 Set / Sets per Month
- Shanghai port Ningbo port Qingdao port
- T/T Credit Card
- M820 manual surface grinding machine for metal work with CE
- Manual M618 surface grinding machine with CE Standard
- MY820 precision surface grinding machine with CE
- Hydraulic surface grinding machine MY1230AHD
- M1308 M1408 cheap mini grinder Universal Cylindrical Grinding Machine
- M1320HX500,800mm cheap price for universal cylindrical Grinding Machine
Product Details
Brand Name: | WMT | Place of Origin: | Anhui, China | Model Number: | MY1224 |
Type: | Surface Grinding Machine | Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Weight: | 125kgs | Dimension(L*W*H): | 1960x1630x1870mm | Voltage: | 220V 380V |
Condition: | New | Power(W): | 1.5KW | CNC or Not: | Normal |
Max. Grinding Length: | 520mm | Max. Grinding Diameter: | 25mm |
Product Description
Feature:
Machine grinder
Manual grinder for metal
Processing stability is very high
Good performance
CE
Specification:
Model | MY1224 | |||
Bench | piece to be Ground (LxWxH) | mm | 600x300 | |
Maximum travel of table (LxW) | mm | 640x320 | ||
Table maximum cutting area (LxW) | mm | 640x320 | ||
Number of T -Slot | mm | 1x14 | ||
The grinding head | Distance From Table Surface To Spindle Center | m | 490 | |
Wheel Size(dia×widthxbore) | mm | 250x25.4x76.2 | ||
Spindle speeds (50HZ) | r/m | 1440 | ||
The amount of feed | Table longitudinal (left and right) speed (stepless) | /min | 3 -20 | |
Table horizontal (before and after) the amount of feed | Continuous (variable speed) | mm/min | 150 | |
Intermittent (stepless) | m/ | 0-5 | ||
The handwheel rotates | mm | 4 | ||
Hand wheel each grid | mm | 0.02 | ||
Vertical (up and down) feed wheel feed | The handwheel rotates | mm | 2 | |
Hand wheel each grid | mm | 0.01 | ||
Motor power | Spindle motor | kw | 2.2 | |
Cooling motor | kw | 40 | ||
Reversing feeder | Hydraulic motor | kw | 1.5 | |
Working pressure | mpa | 3 | ||
Fuel tank capacity | L | 80 | ||
The maximum flow | L/min | 18 | ||
Working precision | The machined surface of the base of parallelism | mm | 300/0.004 | |
Surface Roughness | μm | Ra0.32 | ||
Weight of machine | Net | T | 1.5 | |
Cross | T | 1.65 | ||
Machine Size (LxWxH) | mm | 1960x1630x1870 |

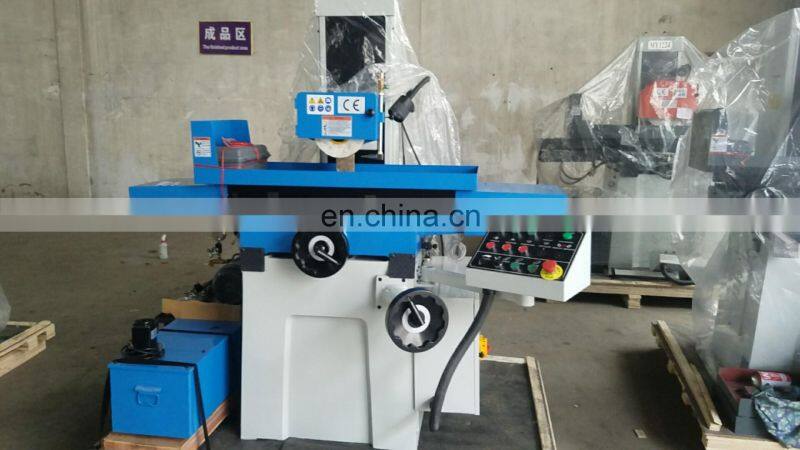

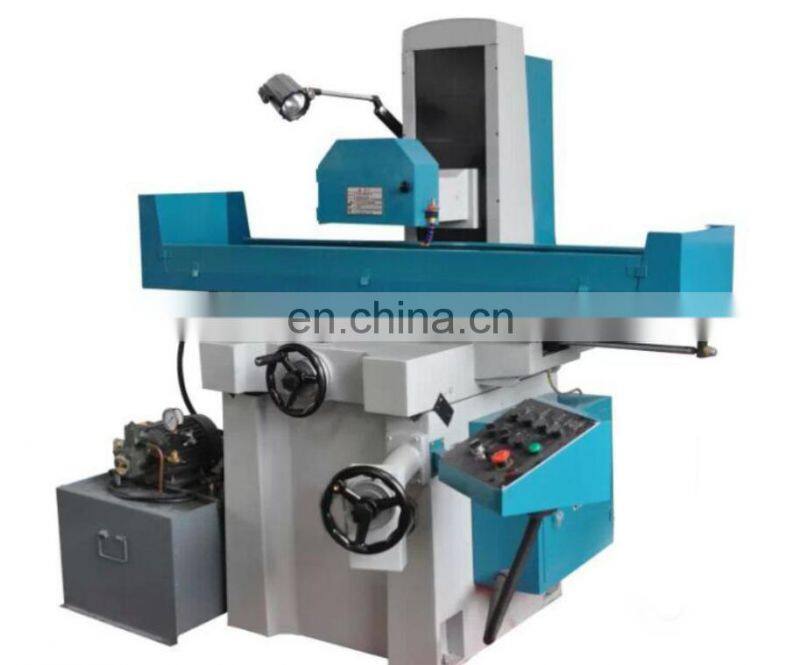

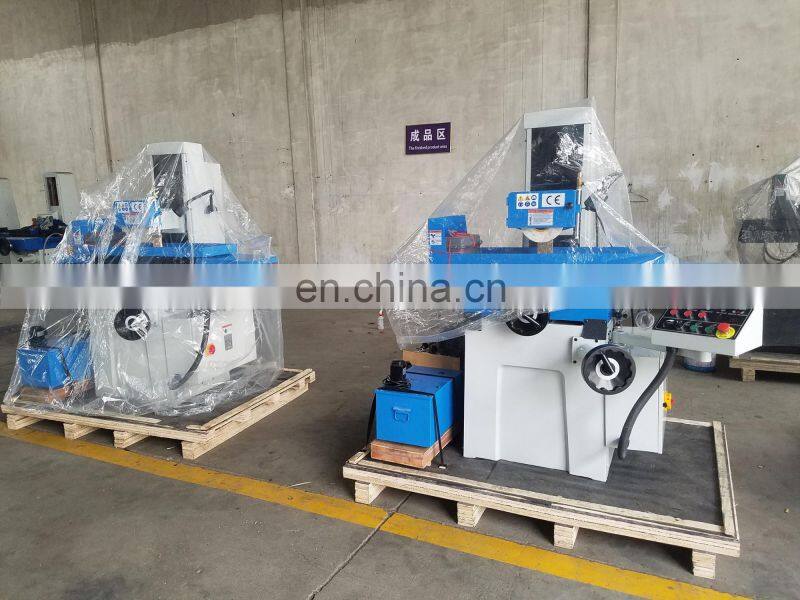

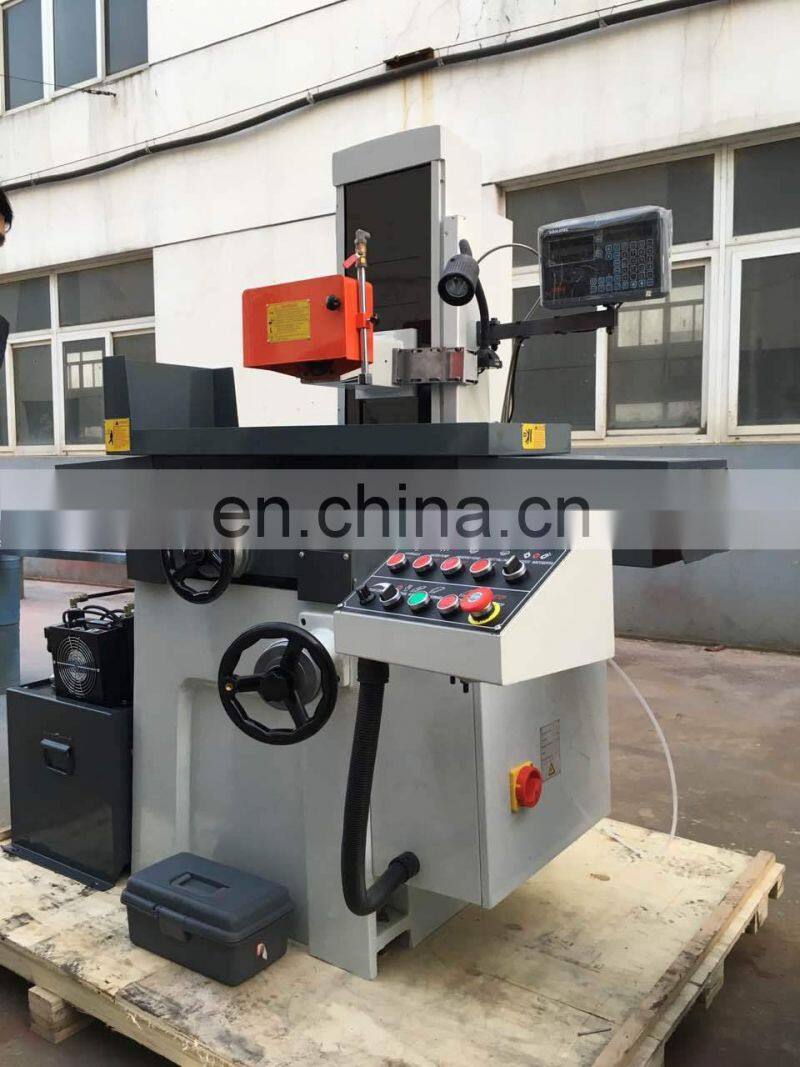

Machine photo:
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
