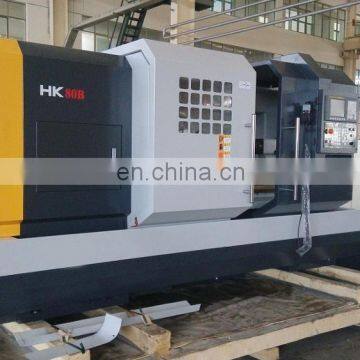

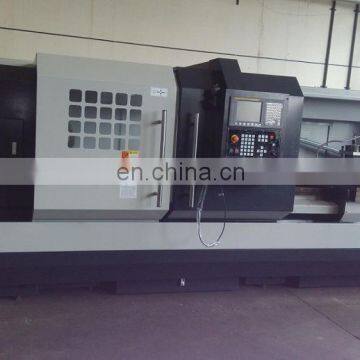

China Top Quality Fanuc Torno Cnc Bench Lathe Machine Price

Item

Specification

Unit

BL-HK63B

BL-HK80B

Capacity

Max. swing dia. over bed

mm

Φ630

Φ800

Max. swing dia. over slide

mm

Φ360

Φ500

Max. turning dia.

(vertical 4T/horizontal 6T tool turret)

mm

Φ630/500

Φ740/610

Center distance

mm

1000/1500/2000/3000

Guideway width

mm

560

Max. Workpiece weight

kg

1200(12’’ manaul chuck)

Spindle

Spindle bore

mm

Φ105

Spindle head type

/

A1-11

Spindle speed

rpm

3 class gears

H:112-1120  M:37-373  L:20-210

Spindle motor

kw

11

Chuck size

/

12''

X/Z axes

X axes travel

mm

370

390

Z axes travel

mm

760/1310/1810/2810

X/Z axes rapid speed

m/min

6/7

Tool post

 Tool turret type

/

Vertical 4/Horizontal 6 station

Tool shank size

mm

32×32,Φ32

Tailstock

Tailstock quill dia.

mm

Φ100

Tailstock quill travel

mm

250

Tailstock quill taper

/

MT5#

Accuracy

X/Z axes positioning accuracy

mm

0.026/0.032(1000),0.040(1500),0.040(2000),0.040(3000)

X/Z axes repeatability positioning accuracy

mm

0.007/0.009(1000),0.014(1500),0.014(2000),0.014(3000)

X/Z axes positive and negative difference

mm

0.012/0.016

Turning workpiece roundness

mm

0.004

Others

N.W.

kg

4600/5100/5600/6100

4800/5300/5800/6400

Overall size(L×W×H)

mm

3550/4000/4500/5600×2000×1850

3700/4100/5000/5600×2000×2000
