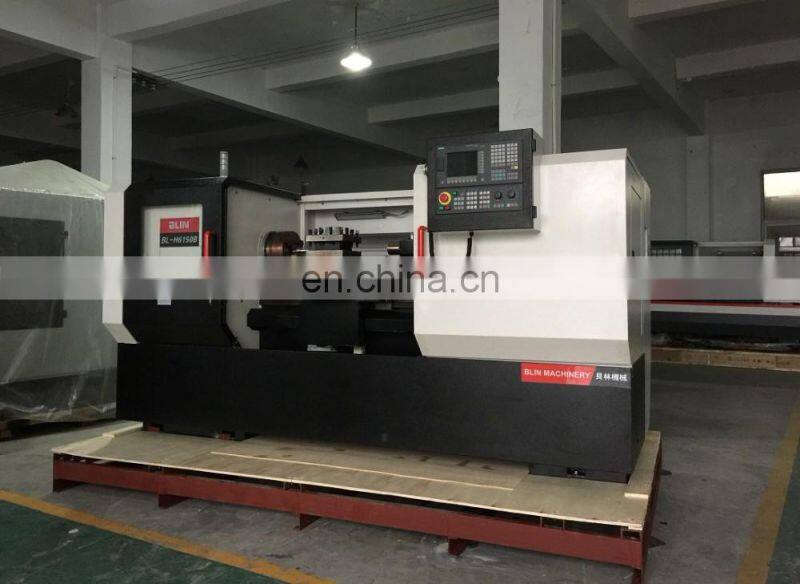

CK6150 Torno Cnc Lathe Machine Metal for Sell

CK6150 Torno Cnc Lathe Machine Metal for Sell thumbnail-1
CK6150 Torno Cnc Lathe Machine Metal for Sell thumbnail-2
CK6150 Torno Cnc Lathe Machine Metal for Sell thumbnail-3
CK6150 Torno Cnc Lathe Machine Metal for Sell thumbnail-4
CK6150 Torno Cnc Lathe Machine Metal for Sell thumbnail-5
CK6150 Torno Cnc Lathe Machine Metal for Sell thumbnail-6
CK6150 Torno Cnc Lathe Machine Metal for Sell thumbnail-7
CK6150 Torno Cnc Lathe Machine Metal for Sell photo-1

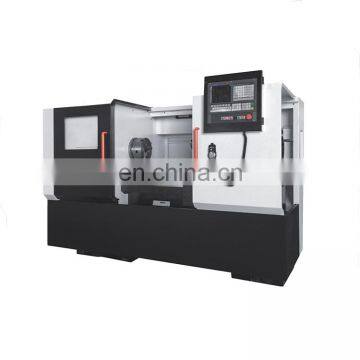

CK6150 Torno Cnc Lathe Machine Metal for Sell photo-2

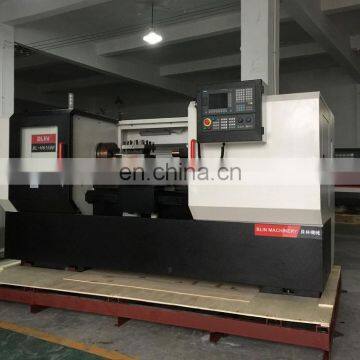

CK6150 Torno Cnc Lathe Machine Metal for Sell photo-3

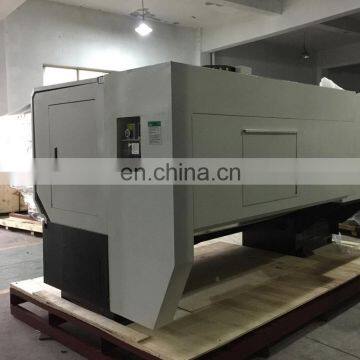

CK6150 Torno Cnc Lathe Machine Metal for Sell photo-4
CK6150 Torno Cnc Lathe Machine Metal for Sell photo-5

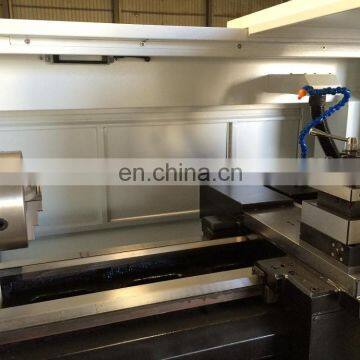

CK6150 Torno Cnc Lathe Machine Metal for Sell photo-6
CK6150 Torno Cnc Lathe Machine Metal for Sell photo-7
US$ 13,000 - 13,150 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BLIN
Place of Origin:
Zhejiang, China
Model Number:
BL-H6150B
Contact Supplier Request Quote Chat Now
Drilling Tapping Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIN
Place of Origin Zhejiang, China
Model Number BL-H6150B
Year 2019
Condition New
Product Description

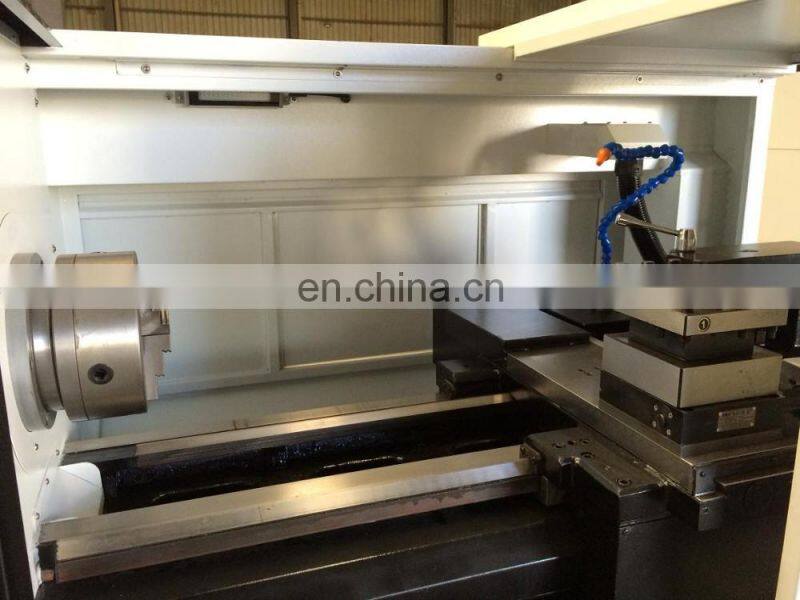

Features:

■ Bed casted by China best compound resin sand cast iron.
■ Guideway hardened by ultrasonic frequency, good precision keeping
■ Aging treatment,has good vibration absorption and rigidity.
■ Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
■ Spindle use high precision angle contact bearing, Germany KLUBER lipid.

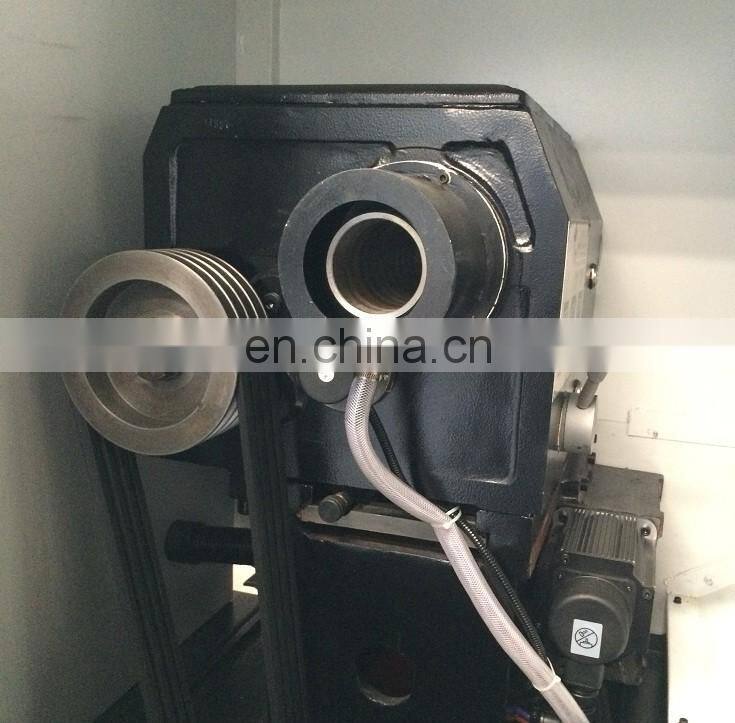

■ H6150B adopt Integral gear box type spindle,big bore,high rigidity,suitable for heavy turning.
■ High precision ball screw, connnected with motor directly.

Item
Unit
BL-H6150B
Max. swing dia. over bed
mm
Φ510
Max. swing dia. over slide
mm
Φ305
Guideway width
mm
400
Base type
/
Seperate type
Center distance
mm
1000/1500(opt.:2000)
Recommended turning length
(vertical 4T/horizontal 6 T tool turret)
mm
1000mm: 900/830
1500mm:1400/1330
Max. turning dia.
(vertical 4T/horizontal 6T tool turret)
mm
Φ460/370
Recommended turning dia.
mm
Φ250
X axes travel
mm
260
Z axes travel
mm
1000/1500
Spindle bore
mm
Φ82
Spindle nose
/
A2-8
Spindle speed
rpm
3 class gears,30-150/100-500/320-1600rpm
Spindle motor
kw
7.5
Chuck size
/
10''
Tailstock quill dia.
mm
Φ75
Tailstock quill travel
mm
150
Tailstock quill taper
/
MT5#
X/Z axes rapid rate
m/min
4/8
X/Z axes repeatability
mm
0.009/0.011
Tool turret type
/
Vertical 4/Horizontal 6,8 station
Tool shank size
mm
25×25
Machining precision
/
IT6-IT7
Roughness
/
Ra≤1.6
N.W.
kg
2500/2800
Overall size(L×W×H)
mm
2900/3400×1800×1700

Standard configuration:

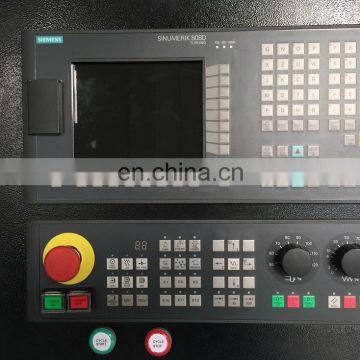

● SIEMENS 808D ADVANCED
● Manual Chuck
● 4 station tool post
● Manual Tailstock

Optional configuration:

● Hydraulic chuck
● 6/8 station tool turret
● Hydraulic tailstock

Why Choose us
Certifications
Our Customers
Packing & Delivery
FAQ

1.Are you factory or trading company?

We are factory and have 39 years history for machine tool manufacturing.Welcome to visi us anytime!

2.What's your payment term?

30% T/T in advanced,70% T/T balanced should be paid before shipping.

3.Do you have CE?

Yes,we have.

4.What is MOQ?

1 Unit.

Contact

Whatsapp/Wechat:+86 15728042488

.

Related Products

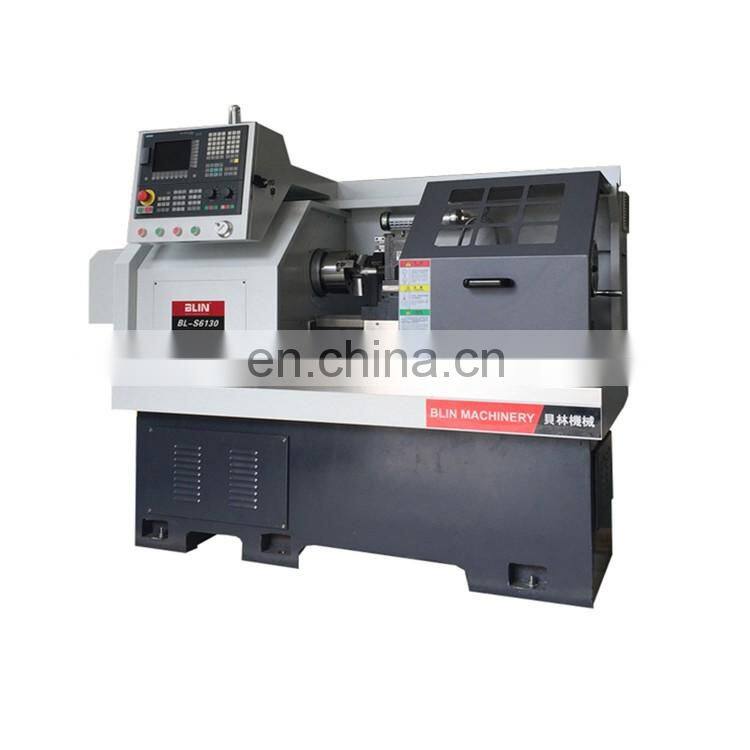

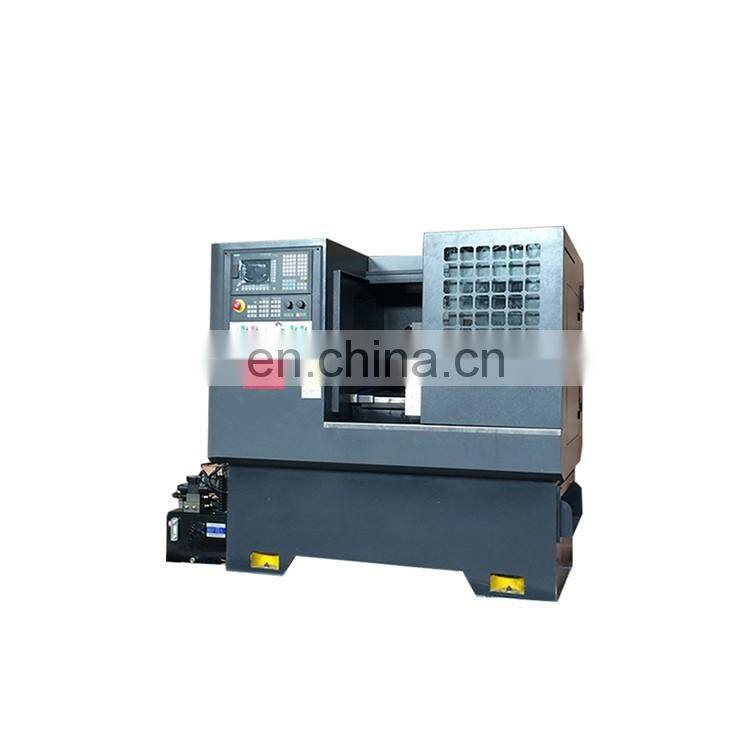

BL-S6130 Flat bed cnc lathe

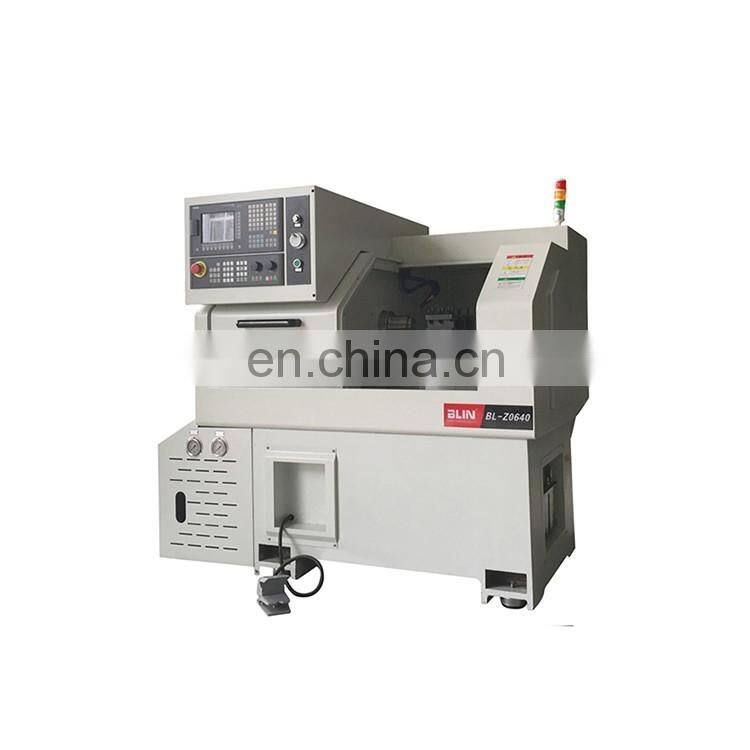

    BL-Z0640 Slant bed cnc lathe
