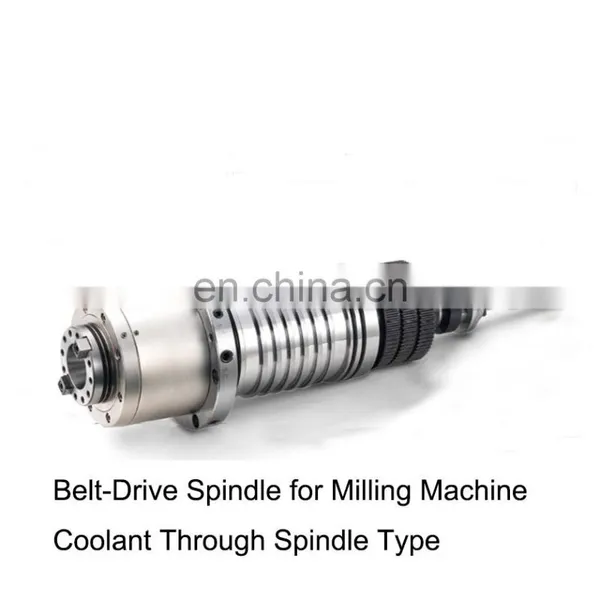

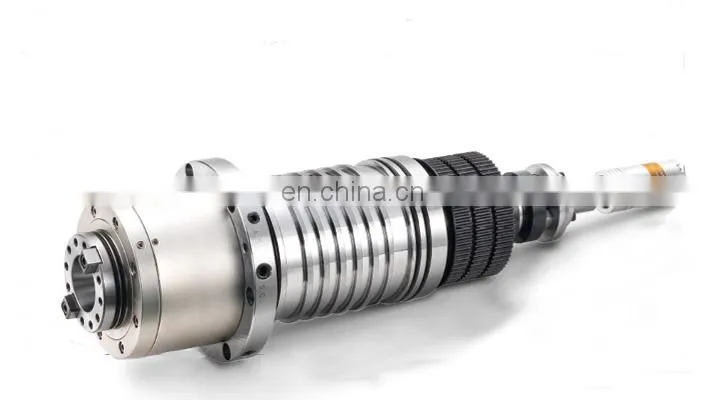

High Speed 3.7KW Cnc Spindle Motor BT30 Belt Drive Spindle
Feature:
Belt type BT30-100
1. Spindle speed: 10000 rpm;
2. Spindle with oil cooling, effective maintenance of the spindle temperature stability;
3. Good labyrinth ring design, effectively prevent cutting oil and exclude foreign materials.
4. Optional :center outlet device;
5. This spindle can be used for process components and mold engraving;
6. The spindle has a reserved floating buckle device.
Specification:
|
Model |
BT30-100 |
|
Spindle speed |
10000 RPM |
|
Motor |
3.7/5.5KW |
|
Balance level |
G1 |
|
Spindle pull |
3KN |
|
Spindle bearing |
NSK P4 |
|
Nasal end deflection |
0.003mm |
|
Inner holder deflection |
0.002mm |
|
Normal temperature rise |
+18° |
|
Drive belt size |
5GT-48T |
|
Broaching tool |
four petals |
|
Installation |
vertical |
