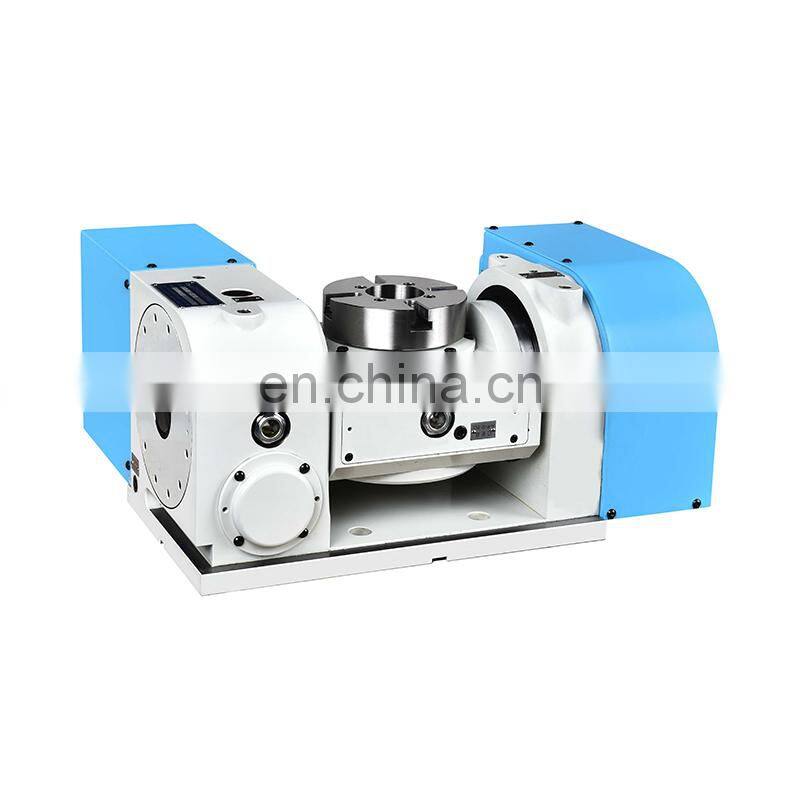

Precision Milling Machine Center Rotary Table with fixed Mitsubishi Serve Motor Drive
Feature:
1. This 5 Axis CNC rotary table use imported precision dual-lead
worm, turbine, turbine with aluminum bronze alloy,ensure the
transmission positioning in high precision accuracy.
2.The turbine size nearly the disc size and the steel rigidity is
better 30%~50% than similar products.
3. Pneumatic locking with comprehensive brake locking
method, increase the locking force and ensure the resistance
of cutting
4. MABD-125 can use ub drill&tapping machine .
Specification:

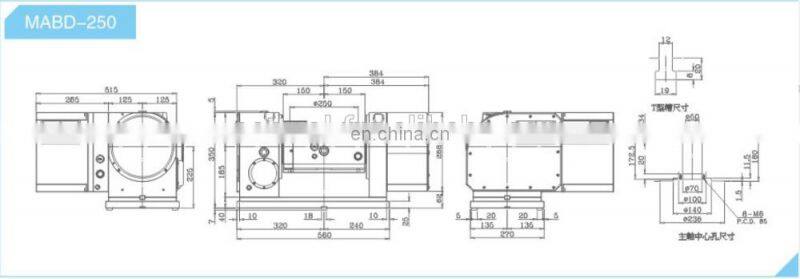

MABD-250
The Disc diameter | 250mm |
The disc spindle center hole | 100H7mm |
The disc spindle center through hole | 70mm |
The Rotate disc height of 0 degree | 310mm |
The rotate disc total height of 90 degree | 382mm |
The rotate disc center height of 90 degree level | 225mm |
T-slot width | 12 H7 |
Guide width | 18 H7 |
Axis type | Rotate axis / tilting axis |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 35(hydraulic) kg/cm2 |
The mini angle of equal division | Rotate & tilting :0.001degree |
Total gears rate | 1/120 1/180 |
Max speed of the rotary disc | Rotate:3000 RPM 8.3 4000 RPM Tilting:3000 RPM 8.3 4000 RPM |
Division precision | ±2” |
G.W weight | 238kg |
A: SHIN CHENG is a professional manufacturer,have more than 30 years experience in tool holder and NC rotary table.
Q: Is Free Shipping Possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can You Send Products To Our Forwarder In China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: What's The Warranty Of The Goods?
A: All products from us wanrranty is 12 months .
Q: What's The System Of Your NC Rotary Table Use ?
A:Our NC rotary table support :FANUC , Mitsubishi,GSK etc.
