Gear Drive 3 Axis DRO Universal Milling Machine
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lecroy
Place of Origin:
Jiangsu, China
Model Number:
X5032 gear drive 3 axis DRO universal milling machine
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gear Drive Universal Milling MachineUS$ 10,000 - 20,000MOQ: 1 Set -
Hotsale Heavy Duty Wooden Package New Milling MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Vertical Knee Type Metal Cutting ToolUS$ 10,000 - 20,000MOQ: 1 Set
-
Vertical Knee Type Milling Machine ToolsUS$ 10,000 - 20,000MOQ: 1 Set
-
Popular Knee Type Vertical Milling MachineUS$ 1,000 - 2,000MOQ: 1 Set
Brand Name
Lecroy
Place of Origin
Jiangsu, China
Model Number
X5032 gear drive 3 axis DRO universal milling machine
After-sales Service Provided
Overseas third-party support available
Condition
New

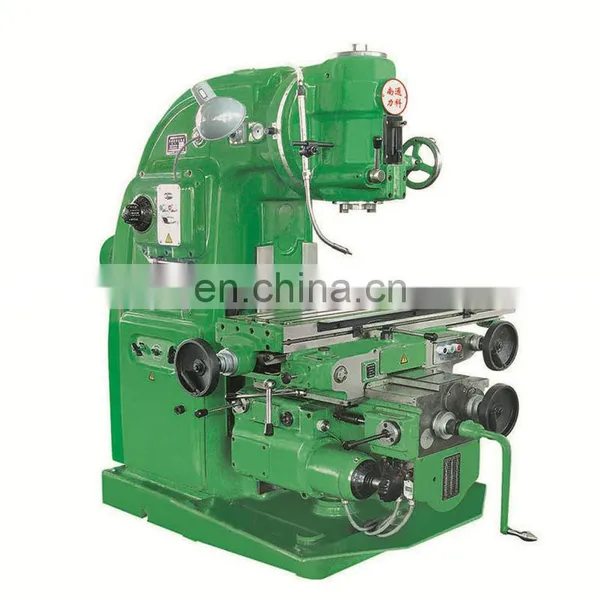

Gear drive 3 axis DRO universal milling machine
| Item | Units | X5032 | |
| Table | Table size | mm | 320*1325/1600 |
| No.of T-slots | 3 | ||
| Width of T-slots | mm | 18 | |
| Max load | kg | 500 | |
| Distance between T-slots | mm | 70 | |
| Travel | Longitudinal travel(manual/auto) | mm | 700/680,980/960 |
| Cross travel(manual/auto) | mm | 255/240 | |
| Vertical travel(manual/auto) | mm | 370/350 | |
| Spindle | Spindle taper | 7:24(ISO NO.50) | |
| Spindle bore diameter | mm | 29 | |
| Spindle speed range | r/min | 30-1500 | |
| Spindle speed step | steps | 18 | |
| Axial mootion | mm | 85 | |
| Max.swivel angle of spindle | ±45 | ||
| Distance from spindle nose and table surface min/max. | mm | 45/415 | |
| Distance from centre line of spindle to vertical guideway surface of column | mm | 350 | |
| Feedrate | Cutting feed rate | mm/min | X:23.5-1180,Y:23.5-1180,Z:8-394 |
| Rapid feed rate | mm/min | X:2300,Y:2300,Z:770 | |
| NO. of feed | mm | 18 | |
| Motor | Power of spindle motor | kw | 7.5 |
| Power of feed motor | kw | 2.2 | |
| Others | Overall dimensions(LxWxH) | mm | 2295X1770X2094 |
| Net weight | kg | 2800 | |
|

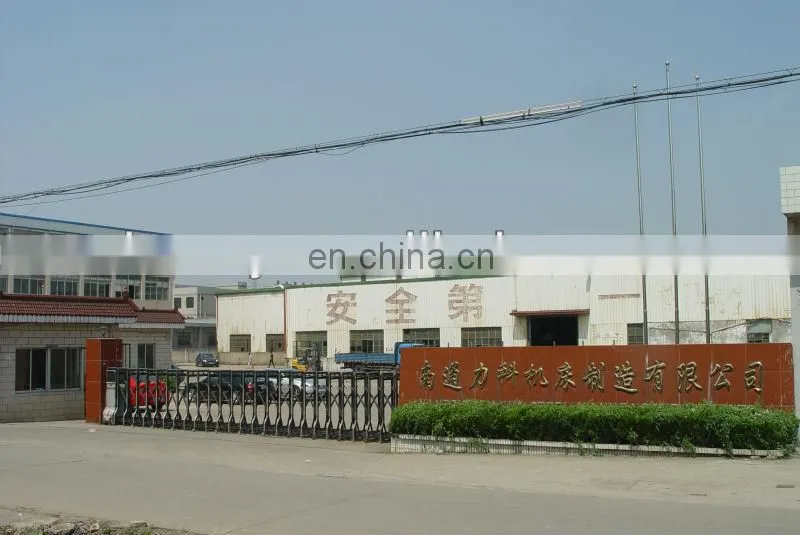

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool. |
|
|
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible. |
|
|
Assembly shop
|
|
|
Warehouse |
|
|
Casting
|
|
|
The main parts gear
|
|
