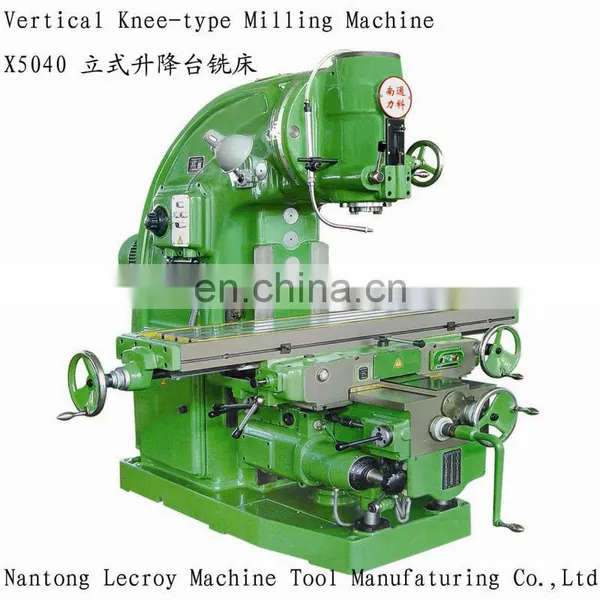

Gear Drive Universal Milling Machine
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lecroy
Place of Origin:
Jiangsu, China
Model Number:
X5040 gear drive universal milling machine
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hotsale Heavy Duty Wooden Package New Milling MachineUS$ 10,000 - 20,000MOQ: 1 Set -
Vertical Knee Type Metal Cutting ToolUS$ 10,000 - 20,000MOQ: 1 Set
-
Vertical Knee Type Milling Machine ToolsUS$ 10,000 - 20,000MOQ: 1 Set
-
Popular Knee Type Vertical Milling MachineUS$ 1,000 - 2,000MOQ: 1 Set
-
3 T-slots Knee Type Milling MachineryUS$ 12,000 - 18,000MOQ: 1 Set
Brand Name
Lecroy
Place of Origin
Jiangsu, China
Model Number
X5040 gear drive universal milling machine
After-sales Service Provided
Overseas third-party support available
Condition
New
Gear drive universal milling machine
| Item | Units | X5040 | |
| Table | Table size | mm | 400*1700/2000/2200 |
| No.of T-slots | 3 | ||
| Width of T-slots | mm | 18 | |
| Max load | kg | 800 | |
| Distance between T-slots | mm | 90 | |
| Travel | Longitudinal travel(manual/auto) | mm | 900/880,1200/1180,1380/1360 |
| Cross travel(manual/auto) | mm | 315/300 | |
| Vertical travel(manual/auto) | mm | 385/365 | |
| Spindle | Spindle taper | 7:24(ISO NO.50) | |
| Spindle bore diameter | mm | 29 | |
| Spindle speed range | r/min | 30-1500 | |
| Spindle speed step | steps | 18 | |
| Axial mootion | mm | 85 | |
| Max.swivel angle of spindle | ±45 | ||
| Distance from spindle nose and table surface min/max. | mm | 30/500 | |
| Distance from centre line of spindle to vertical guideway surface of column | mm | 450 | |
| Feedrate | Cutting feed rate | mm/min | X:23.5-1180,Y:15-786,Z:8-394 |
| Rapid feed rate | mm/min | X:2300,Y:1540,Z:770 | |
| NO. of feed | mm | 18 | |
| Motor | Power of spindle motor | kw | 11 |
| Power of feed motor | kw | 3 | |
| Others | Overall dimensions(LxWxH) | mm | 2556X2159X2258 |
| Net weight | kg | 4250 | |
|
Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool. |
|
|
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible. |
|
|
Assembly shop
|
|
|
Warehouse |
|
|
Casting
|
|
|
The main parts gear
|
|
