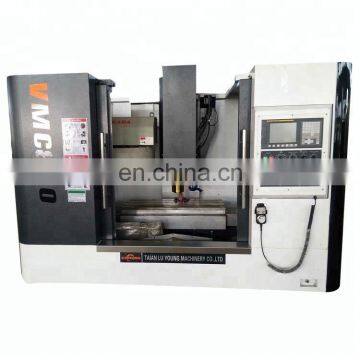

VMC850 wholesale price 4 axis vertical machine center with metal working
| CNC machining machines | VMC850 |
| Capacity | |
| table size | 1000x500mm |
| Max. table load | 600kg |
| T slot qty-width*distance | 5-18x90 |
| Spindle | |
| spindle speed | 8000 rpm |
| spindle nose to table surface | 105-655mm |
| Spindle center to Column surface | 550mm |
| Spindle taper | BT40 |
| Main motor power | 7.5/11kw |
| Three-axis servo motor power | 2.0/2.0/2.0kw |
| box way | |
| X axis travel | 800mm |
| Y axis travel | 500mm |
| Z axis travel | 500mm |
| X/Y/Z axis rapid feed | 15/15/12m/min |
| Cutting feed speed | 8m/min |
| Automatic tool changer | |
| Tool changer type | drum/ hat type (arm type optional ) |
| Max. tool length | 350mm |
| Max. Tool diameter | φ100(adjacent tool)/φ150(not adjacent tool) |
| Max.tool weight | 8kg |
| Tool changing time(tool-to-tool) | 1.8sec |
| Accuracy | |
| Positioning accuracy | ±0.008/±0.006/±0.006mm |
| X/Y/Z axis repeatability | ±0.004/±0.004/±0.004 mm |
| Net Weight | 5800 kg |
| Overall Dimension | 2840×2301×2105 |
The VMC850 wholesale price 4 axis vertical machine center with metal working is suitable for mould, automobile, motorcycle, aviation, aerospace, instrumentation, textile light industry and electronics and machinery manufacturing and other industries, small and medium-sized housing cover, plate, shell and plate parts processing industry.It is applicable to the vertical machining center of machining and mould manufacturing. It can adapt to the machining requirements of machining, drilling, tapping, boring and so on.
1. The VMC850 wholesale price 4 axis vertical machine center with metal working tool processing center adopts high rigidity and high precision spindle:
(1) the spindle motor is driven by a high torque profile, not skidding, and can greatly reduce transmission noise and heat generation.
(2) the main shaft adopts the precision Japan NSK bearing, high speed and high precision.
2. Adopt the high precision and high strength ball screw of silver P3 in Taiwan.Imported high precision lock nut, ball screw after the pre-tension, greatly increases the driving rigidity and eliminate the hot deformation effects of the exercise, thus to ensure the positioning precision of the machine tool and repeat positioning accuracy.
3. The VMC850 vertical machine center X and Y axis USES the original German rexroth roller to overload guide rail, the width of line rail is 35mm, and the rail slide seat is enlarged and processed.Roller overload line rail can meet the requirement of fast speed and high precision of customers. It can also make strong cutting and increase the service life of tool guide rail.

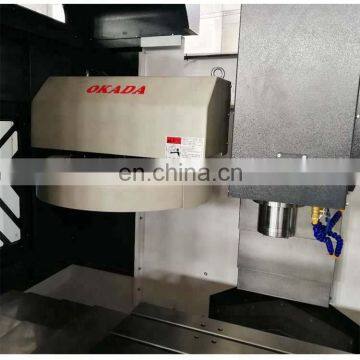

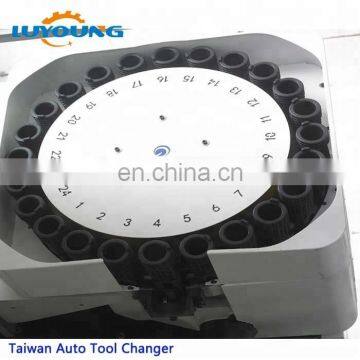

4. Adopt the original Taiwan okada disc cutter depot BT40 to meet the automation requirements and reduce the failure rate of the machine tool.
5. The cnc vertical lathe machine center is equipped with a sealed guide shield, effective protection of guide rail and screw, and prolong its service life.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our packing is standard sea export plywood box, which can guarantee the quality of the goods and also reduce the loss.
The mode of transportation is by sea.
You can also pack and transport according to your requirements
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1. Factory price.Spend the least money on the best machines.
2.Low failure rate.All the accessories use the famous brands at home and abroad;More than 20 years' experience in this field,strictly control the quality.
3. Supprt oversea service.Our engineer have more exprience for oversea service,supply good service.
4.Export more than 40 countries and receive good feedback from our customer.
5.Trade Assurance.All of the order could placed by Trade Assurance, keep your money safe.
1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
6.VMC850 New price automated high quality cnc milling machine products can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
