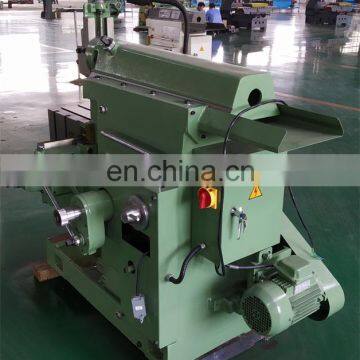

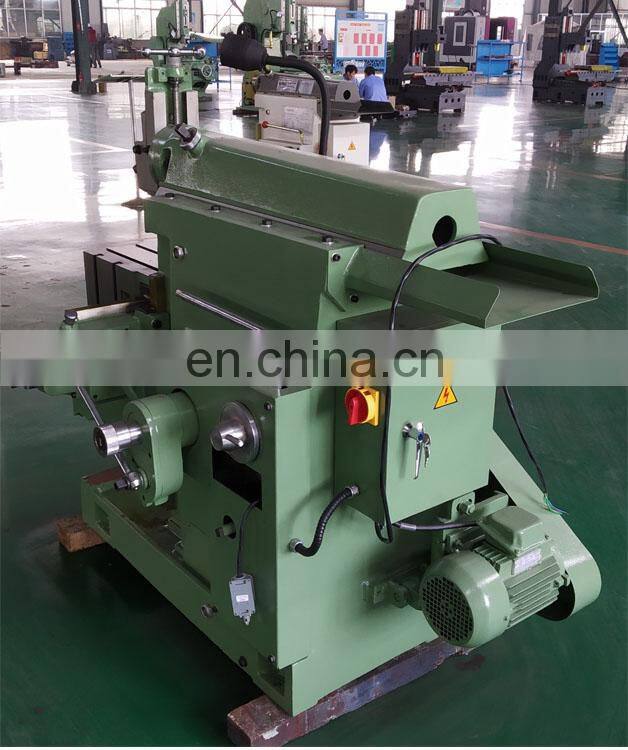

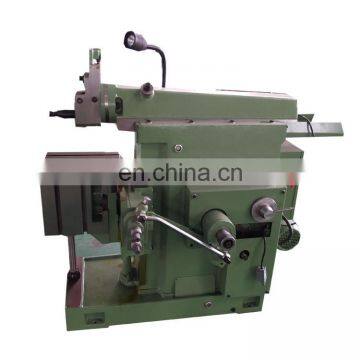

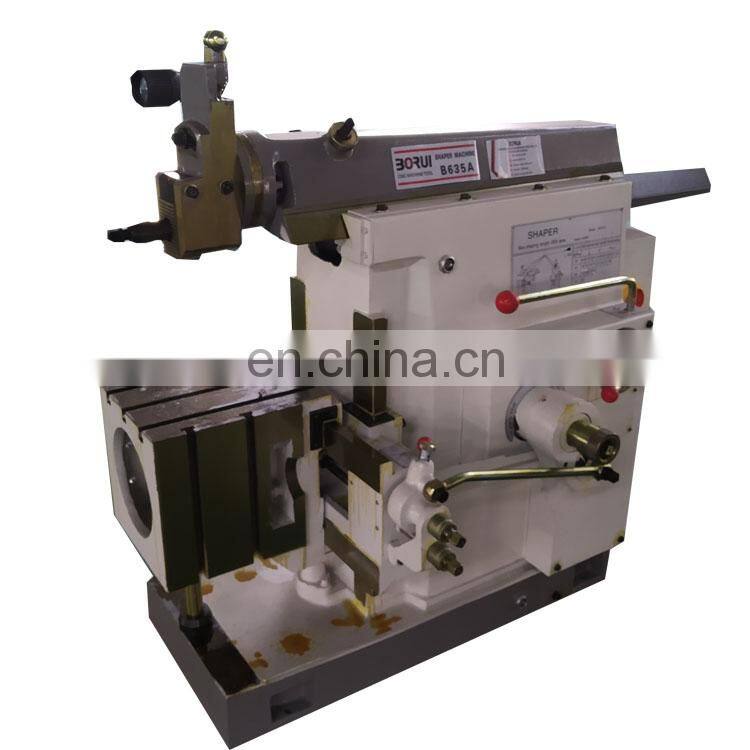

B635A small High rigidity horizontal shaper machine
B635A |
B635A |
|
Maximum cutting length(mm) |
350mm |
|
Maximum distance from ram bottom to table surface(mm) |
330mm |
|
Maximum table horizontal travel(mm) |
400mm |
|
Maximum table vertical travel(mm) |
270mm |
|
Leading surface of the planer to bed out of the maximum distance |
550mm |
|
The maximum displacement of the ram |
170mm |
|
Maximum turning angle of the worktable(no vice) |
+90o |
|
Maximum turning angle of the worktable(vice) |
+55o |
|
The turret Maximum vertical travel |
110mm |
|
Number of ram strokes per minute |
32, 50, 80, 125, times min |
|
|
The ram back and forth a table feed amount |
Wheeled round a tooth (vertical) |
0.18mm |
Wheeled round a tooth (horizontal) |
0.21mm |
|
Wheeled round 4 tooth (vertical) |
0.73mm |
|
Wheeled round 4 tooth (horizontal) |
0.84mm |
|
Electric |
1.5kw 1400r/min |
|
Carton size |
1530*930*1370mm |
|
Net weight |
1000kg/1200kg |
|
B635A small High rigidity horizontal shaper machine
1. Optimized principle design, machine appearance, easy to operate.
2. Vertical, horizontal guide surface with rectangular guide, better stability.
3. The use of advanced ultra-audio quenching process, so that the machine life longer.
4. Suitable for planing various small and medium parts of the plane, T-slot and molding surface, can be used for single and batch production.
1. small High rigidity horizontal shaper machine Shaper workbench can about rotational angle worktable moving structure with lateral and lifting; to planing inclined plane, thereby expanding the scope of use.
2 feed system of shaper with a cam mechanism, adjust the feed quantity. Change the amount of knife, very convenient.
3. Shaper in knife system overload safety device is installed, when due to careless handling or by external influence and cutting overload when, take the knife itself slipping, nondestructive parts which guarantees the machine to normal operation.
4. The sliding pillow and bed rails and with speed gear pair and the main rail sliding surface, lubrication oil pump has played for circulating lubrication.
5 Shaper with parking brake mechanism, so the speed of transformation. When starting machin tools and parking, the power supply can not be cut off.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
1. The warranty period of our products is one year. If there is any damage in the warranty period, we will send it to you for free.We provide 24-hour online technical service and contact us at any time.
2. 365 days without false service, uninterrupted supply, pre-sales consultation, after-sales service and other technical support
We also offer free technical training and overseas services.
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1.Our company has 20 years of experience in CNC lathes.Our company produces more than 1000 CNC machine tools per year, more than 40 countries export, and get good evaluation and affirmation.The high quality assurance of our lathe has good rigidity and stability.
2.electrical components from famous brand, provided by the Japanese and Taiwanese brands, its mechanical precision reach or exceed the international standard. Our CNC lathe is durable, safe and reliable, life for more than 10 years.
3. After 20 years of improvement, we have formed a complete production to maintain high quality and control costs. We will provide high quality prices to help you establish advantages in your local market.
4.We have a professional technical service team that provides the best service for you. Overseas services can provide 24-hour online sales and free after-sales service.
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
How can I contact you?
Through cell phone number and QQ, there is also email contact.
