CK61100 cnc lathe machine horizontal with 2 axis tool holder
- 60 Set / Sets per Month
- Qingdao or shanghai
- T/T Credit Card
- CK0640 cnc lathes chinese turning with bar feeder mini machine
- CK6130 horizontal cnc cutting machine cnc controller for lathe
- ck6132 cnc lathe low cost machine flat bed lathe
- CK6160 cnc metal equipment manufacturers big lathe machine
- CK6140A cnc machine working horizontal chinese metal cnc lathe
- CK6432 low cost cnc production horizontal turning lathe machine
Product Details
Brand Name: | Lu Young | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description
CK61100 cnc lathe machine horizontal with 2 axis tool holder
CK61100 | |
Max. swing over bed (mm) | Φ1100 |
Max. swing dia. over cross slide(mm) | Φ820 |
cessing length(mm) | 1500 |
Form | Three gears No grade to change frequency |
Number of spindle speed | No grade |
Range of spindle speed(r/min) | 6-500 rpm |
The spindle terminal structure | C11 |
Diameter of spindle bore (mm) | φ130 |
The taper of spindle front-end | (Metric)120 1:20 |
Power of main motor (KW) | 15KW |
Max.travel of tool post (mm) | X:530 Z:1700 |
Fast moving feed speed (mm/min) | X:4000 Z:5000 |
Resetting accuracy(mm) | X:0.012 Z:0.016 |
Processing accuracy(mm) | IT6-IT7 |
Surface roughness | Ra1.6 |
Sleeve diameter of tailstock (mm) | φ100 |
Sleeve travel of tailstock (mm) | 250 |
Cone hole taper of tailstock’s sleeve | MT6 |
Standard configuration | Four-station vertical electrical knife rest |
Alternative configuration | Horizontal Six-station electrical knife rest |
Restting accuracy (mm) | 0.01 |
Length of section of knife handle (mm) | 30×30 |
Length*width*height | 3700×1820×1810 |
Net weight (Kg) | 6000 |
CK61100 cnc lathe machine horizontal with 2 axis tool holder is a high-precision, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face, end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the heavy duty big chuck cnc lathe
The feature of CK61100 cnc lathe machine horizontal with 2 axis tool holder
1. heavy duty CNC lathe machine high precision, the system set the minimum unit 0.001mm, X-axis repeat positioning accuracy of 0.010mm, Z-axis repeat positioning accuracy of 0.012mm.
2. heavy duty horizontal education CNC lathe machine high precision, High hardness, good rigidity, high audio quenching, machine guide rails and saddle rails are using special materials, hard rail, high frequency quenching, super hard wear and tear, durable, good processing accuracy to maintain good.
3. High stability, high-strength cast iron machine, adding copper and chromium special materials, bed rail quenching depth of 4mm hardness of 52 °or more, effectively improve the machine wear resistance and stability.
4. Centralized automatic lubrication guide, screw, etc., with a flexible movement to reduce the heat distortion, precision and stability characteristics.
5. Low machine noise, the machine gear with precision grinding, effectively improve the gear hardness, reducing machine noise.
6. Tool holder with high positioning accuracy, high precision CNC turret, tool change knife, no contact to send the message, against the sales, the use of international advanced three-pole tooth fine positioning, thread lifting tightening. Optional six-station or eight-station horizontal electric knife, turret with high positioning accuracy, high strength, good seismic performance and so on.

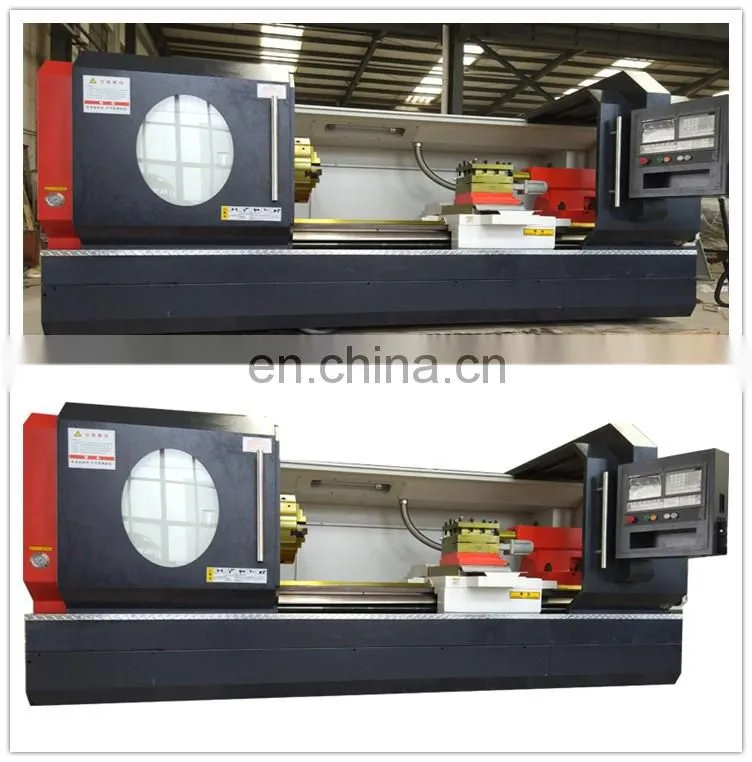

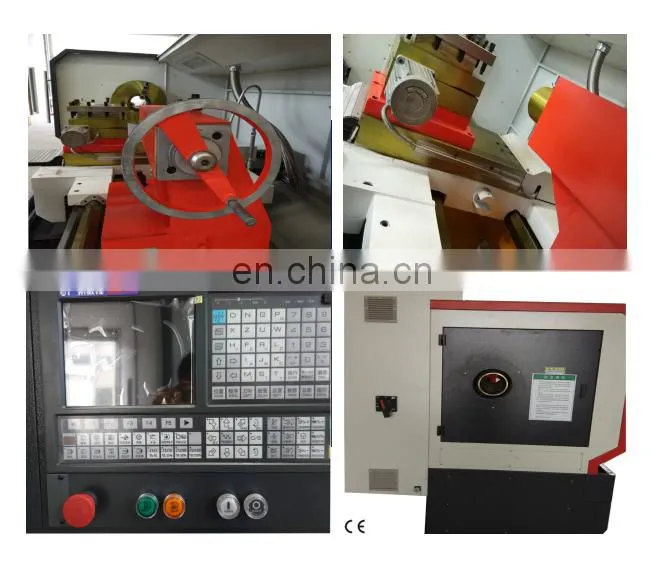

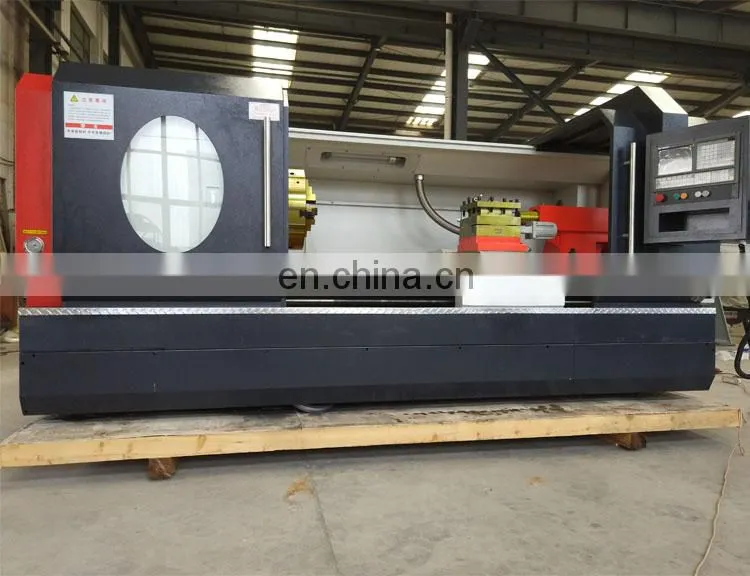

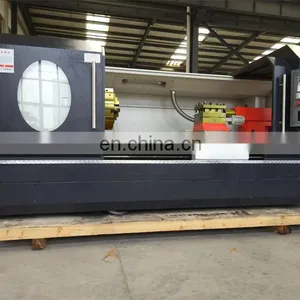

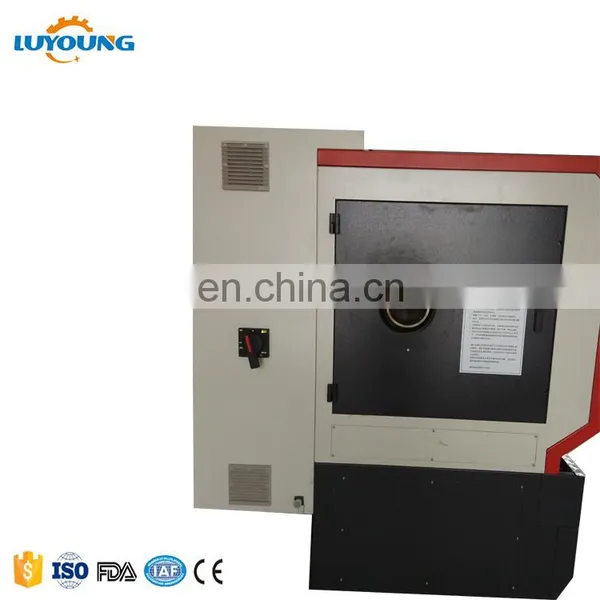

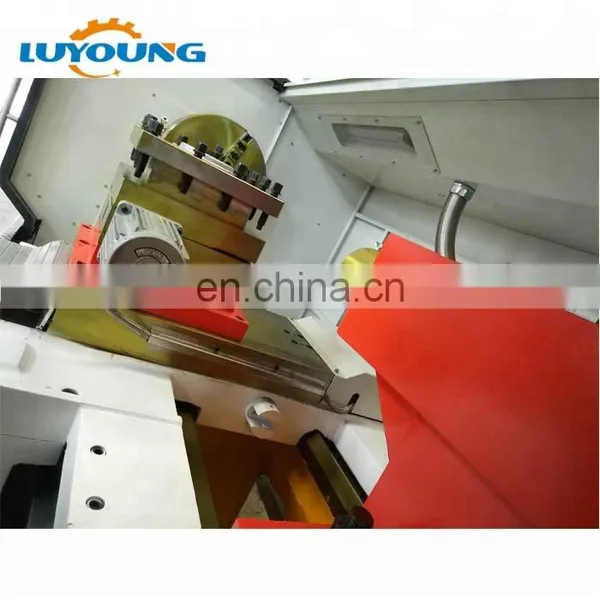

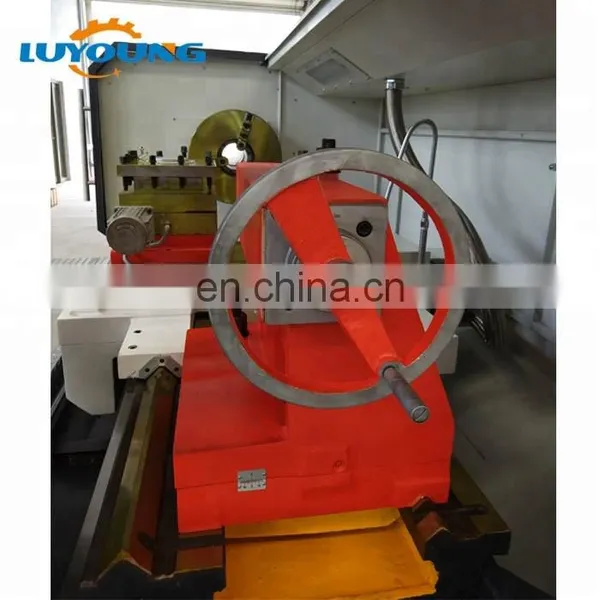

Product details

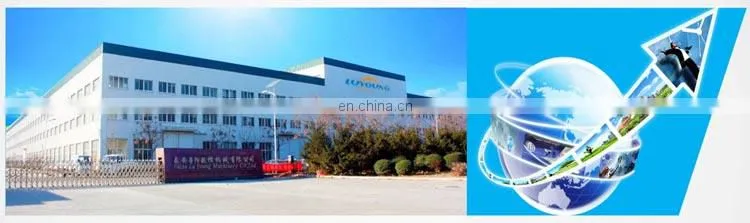

Our Workshop
Company profile
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
Feedback from our customer Annual sales
Growing company strength, also more and more customers choose our products, the company produces the CNC lathe, CNC milling machine, processing center, annual sales of constant growth, up 20% from 2016 in 2017.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers

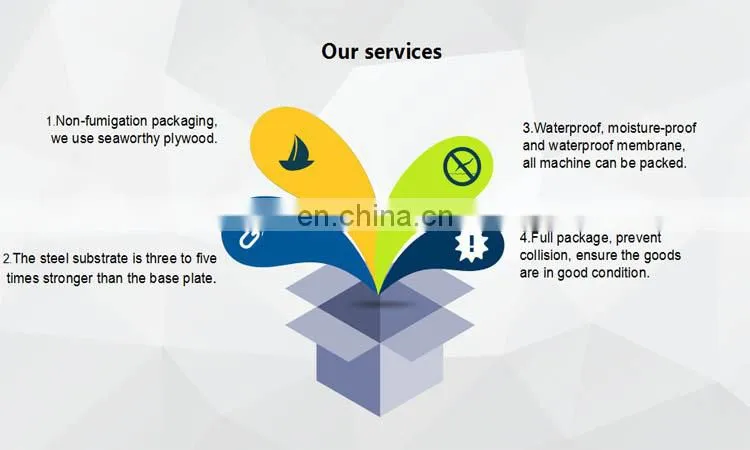

1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1.Our company has 20 years of experience in CNC lathes.Our company produces more than 1000 CNC machine tools per year, more than 40 countries export, and get good evaluation and affirmation.The high quality assurance of our lathe has good rigidity and stability.
2.electrical components from famous brand, provided by the Japanese and Taiwanese brands, its mechanical precision reach or exceed the international standard. Our CNC lathe is durable, safe and reliable, life for more than 10 years.
3. After 20 years of improvement, we have formed a complete production to maintain high quality and control costs. We will provide high quality prices to help you establish advantages in your local market.
4.We have a professional technical service team that provides the best service for you. Overseas services can provide 24-hour online sales and free after-sales service.
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
Are you (cnc lathe machine ,milling machine, vertical machine center) manufacturer or trader?
A: Certainly we are manufacturer. Welcome to visit us to check it!
How long will your delivery date be?
A: our delivery date is one month.30 days
CK61100 cnc lathe machine horizontal with 2 axis tool holder products can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
How can I contact you?
Through cell phone number and QQ, there is also email contact.
