Product Details
Brand Name: | Luyoung | Place of Origin: | Shandong, China | Model Number: | CK6150B |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

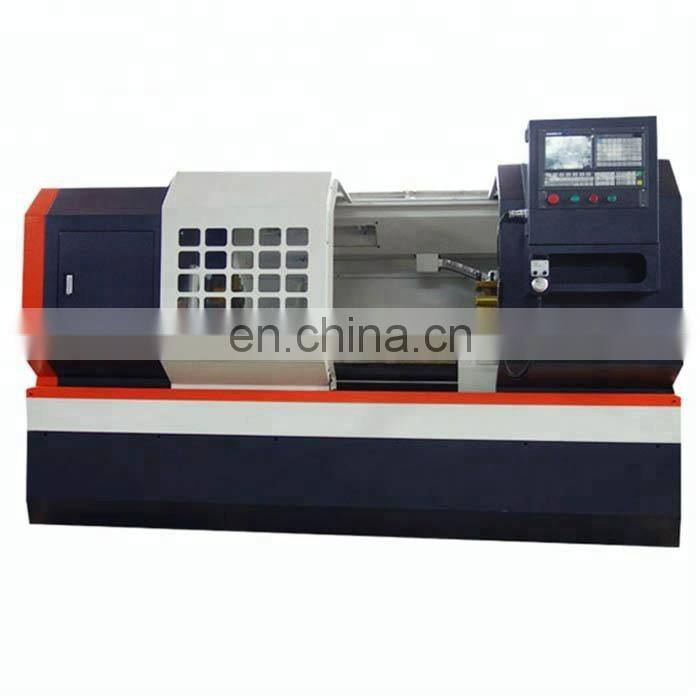

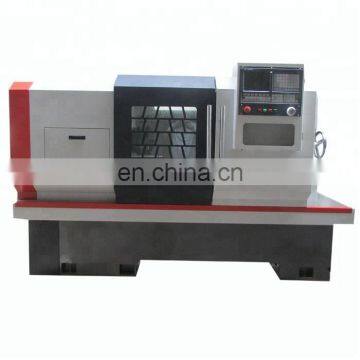

CK6150B production cnc turning lathe machine
Specification:
Item | CK6150B |
Max. swing dia. over bed | Φ500mm |
Max. swing dia. over cross slide | Φ280mm |
Processing length | 1000mm |
Width of the bed | 400mm |
Dia. of spindle | Φ82mm |
Spindle taper | M5 |
spindle nose | Type of spindle head A2-8 |
Spindle speed | 14-1600rpm |
Spindle speed step | Three gear speed manual change for 4 step, |
chuck size | 250mm |
Tool holder | 4 station tool holder |
Tool bar section | 25X25mm |
Main motor power | 7.5KW |
X/Z axis position accuracy | 0.02/0.025mm |
X/Z axis repeatability | 0.01/0.012mm |
X/Z axis travel | 300/1050mm |
X/Z axis fast feeding speed | 8/10 M/MIN |
Tailstock sleeve travel | 150mm |
Tailstock taper | MT5 |
Dimension | |
weight | 2600kg |
CK6150B production cnc turning lathe machine
1.High precision of the machine tool,low noise, high precision and good stability.
2.CK6150B production cnc turning lathe machine can be used to peel various rotating surfaces such as cylindrical surface, tapered surface, special surface, etc., and can be used for cutting grooves, threading, boring, hinge processing, high efficiency and strong applicability.
3.The bed guide rail is refined by ultrasonic quenching, high hardness and good rigidity.
4.The ball screw is used in the whole inner loop wire rod, with the diagonal contact ball bearing support and pretension.The guide rail and screw are used for automatic lubrication, which has the characteristics of flexible movement, reducing heat deformation and stability.
5.The electric four-position tool holder is positioned with precise tooth disk, and the positioning accuracy is high.
6.The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
7.Easy to operate, especially suitable for complex parts or machining of high-precision mass parts. CK6150B production cnc turning lathe machine is also the first choice for numerical control teaching.
Taian Lu Young Machinery Co., Ltd is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 50000sqm workshops and offices, we have more than 20 years experiences in cnc machine research and production.Our products all pass CE Certification,and our factory pass ISO9001Quality Certification.Our machines have been exported more than 40 countries and have been well received by our customers.we welcome all customers and friends come to visitour factory! Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on.
We have 20 years of accumulated experience in CNC lathe and CNC milling machine,so our products has been exported more than 40 countries. We have professional engineers who are responsible for every product we export. Because of our high degree of professionalism , good quality, factory price and the best service,more and more customers choose us, so our export volume of products increased by 20 percent compared with last year.
1.Company strength.We have 20 years experiences for cnc machine profuction.
2.Friendly price.We supply friendly factory price to help you establish your advantage in your local market
3.Training for free. We can supply training for you in our factory for free.Oversea service also is OK.
4.Relationship.We will establish long-term relationship with our clients.
The packaging and shipping of CK6150B production cnc turning lathe machine:
On the mechanical packaging, we use the fumigation-free plywood.Fumigation-free wooden keel support bar is adopted by the export of LVL material, wood is made from multi-layer plywood custom-made, multi-layer plywood and LVL material are after high temperature sterilization and glue them into a wooden . The wooden box itself does not have any log, so it does not need to be fumigated to be exported directly.The goods are well packed in good condition and can prevent the breakage and leakage of the contents during the shipping process.We will adopt Marine transportation to prevent the turbulence and vibration of the transportation process from causing damage to the goods and ensure that the goods are safe and sound when delivered.
1.Professional technogoly service team.we have professional technogoly service team , we supply one by one solution design for your request.
2.Training for free and oversea service.we can supply training for your in our factory for free.Oversea service also is OK.
3.7*24 hours online sales.We supply 7*24 hours online sales and after sales service for free.And we welcome customers to visit our workshop and products at any time.
4.Replacement parts for free.We supply replacement parts for free if the machine is proved defective within 12 months.
1. What’s the term of payment ?
As usual, Our term of payment is:
30% downpayment by T/T (Telegraphic transfer ) in advance.
70% by T/T before shipment.
Besides, We can also accept term of payment by irrevocable letter of credit at sight. D/P or D/A.
2. What’s the quality warranty ?
We will supply standard parts and accessories with our machines when shipment. Within one year after receiving our machines, In the right operation, If there are any damaged parts or accessories, We will replace them by air-mail or express mail immediately free of charge.
3. What’s the delivery time ?
We will supply goods to you within 1 months after getting your 30% downpayment by T/T according to the different products.
4. What’s the charge of installing and commissioning ?
For some machines, It need our technician to go to your local site and help you install and commission machines. At the same time, Our technician will train your workers. It will take 7-15 days for different machines. The return air-tickets, accommodation, food, salary ( USD60.00/day for every technician ),etc will be born by the end-user.
