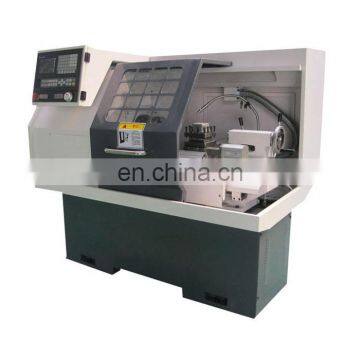

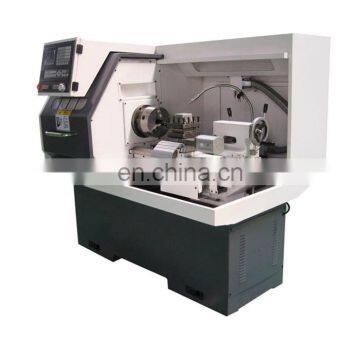

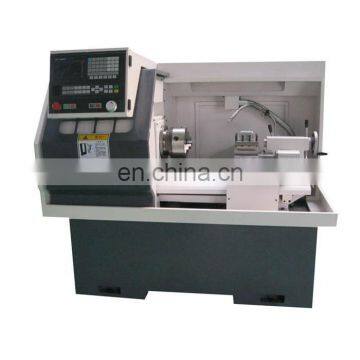

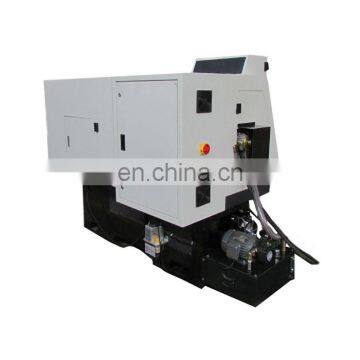

ck6132 high speed auto metal turning lathe cnc machining
| The ck6132 high speed auto metal turning lathe cnc machining uses the design of mechanical and electrical integration, generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine. |
Specification of : ck6132 high speed auto metal turning lathe cnc machining
| ck6132 high speed auto metal turning lathe cnc machining | |
| Max. swing dia. over bed | 360mm |
| Max. swing dia. over cross slide | 150mm |
| Max. processing length | 450mm |
| Dia. of spindle | 40mm |
| Spindle taper | MT5 |
| Spindle speed | 150-2500mm |
| Tool holder | 4 station or gang tool |
| Tool bar section | 20X20 mm |
| Main motor power | 4kw |
| X/Z axis travel/ stoke | 310/450 |
| X/Z axis fast feeding speed | 6/8 M/MIN |
| Tailstock sleeve travel | 100mm |
| Tailstock taper | MT3 |
| Dimension | 1820mm×1100 mm×1550mm |
| weight | 1200kg |
| Standard configuration: | Optional configuration: | |

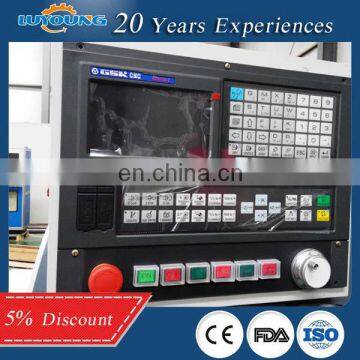

| GSK928 CNC Controller system | Siemens,Fanuc cnc controller system | |
| Servo motor for X,Z axis, Servo driven | pneumatic chuck,hydraulic chuck | |
| Gang type tool holder | pneumatic tailstock,hydraulic tailstock | |
| Pneumatic collet | 6 staion tool turret,8staiton tool turret | |
| Auto lubrication system | Auto feeder system | |
| lighting system | Chip conveyor | |
Hot selling flat bed high precision CNC lathe machine for metal
|
CK0640 mini CNC lathe machine CK6432 small CNC lathe machine |
|
CK6130 small CNC lathe machine CK6132 small CNC lathe machine |
|
CK6136 middle lathe machine CK6140 middle lathe machine |
|
CK6150heavy duty CNC lathe machine CK6180 heavy duty CNC lathe machine |
Compared with the traditional lathe,the processing performance of ck6132 high speed auto metal turning lathe cnc machining
1.Machining accuracy of higher parts. Due to the rigidity of the lathe, the manufacturing precision and the high precision of the knife, and it can be timely and accurate manual compensation, it can even compensate for automatic. So it can process high-precision parts.
2.Processing parts with small surface roughness, as it has a function of constant linear speed cutting.
3.Machining complex shape parts. CNC lathes have the function of circular interpolation, it can also be used to describe the curve, but also can process the list curve.
4.Processing with some special types of threaded parts. CNC lathes have the function of cutting thread. The general use of hard alloy blade, and can use a higher speed, so the turning out of the thread high precision, smooth surface.
5.Processing ultra-precision, ultra-low surface roughness parts.Disk, video recorder head, laser printer multi-faceted reflector, copier rotary drum, camera and other optical equipment, lenses and molds, and contact lenses, etc., they are suitable for processing in high-precision, high-performance CNC lathes.
Why choose our ck6132 high speed auto metal turning lathe cnc machining ?
1.Strong strength,The company has 20 y ears of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
The products have exported more than 40 countries around the world, please look who choose us:
1.Warranty for one year. In the warranty period, if there is a damaged parts, we will send it to you for free.
2.Provide 24 hours of online technical service, you can contact us any time.
3.Provide free training, you can choose to train online or come to the factory.
4.Provide paid overseas services, including commissioning machines and training
Best serviec from Lu Young
1.Help you choose the most suitable machine for you, to ensure that reduce costs and improve work efficiency.
2.If our equipment can not meet your requirements, we can according to your request t re-design, production the machine.
3.All orders can use TRADE ASSURANCE, please rest assured with us.
4.We offer free training, available online training or on-site training to ensure that you can learn to use the equipment.o
5.We offer 7 x 24 hour online service and lifelong technical guidance.
6.Free technical support, including machine brochures, machine inspection certificate, precision inspection book, machine foundation diagram , standard machine tools .
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1.Does the ck6132 high speed auto metal turning lathe cnc machining can be customized?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs |
2.How long is the warranty period of the cnc lathe machine?
|
Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
6.How to contact with you?
| My mobile/whatsapp: +86 18660853235; QQ:3494630853 |
|
|
