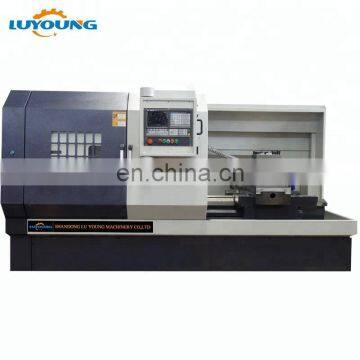

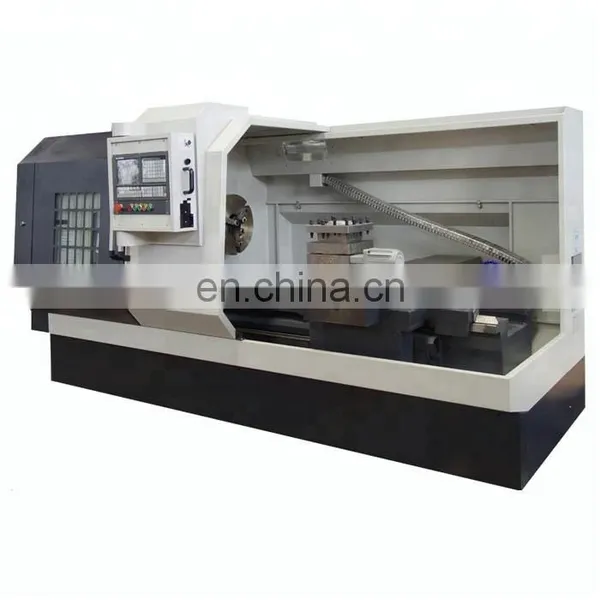

CK6180 cnc lathe horizontal heavy duty machine
specification |
Model number |
The maximum rotary diameter of the bed |
Φ800mm |
Maximum machining diameter |
Φ800mm |
The maximum machining diameter on the tool holder |
Φ480mm |
Maximum machining length |
1000mm |
Two top distance |
1000mm |
Diameter of spindle hole |
Φ105mm |
Spindle motor power |
11kw |
Spindle speed |
10-100rpm |
The sleeve diameter |
Φ95 |
Sleeve trip |
250mm |
Tail socket hole |
Morse 5 |
30×30mm |
|
X/Z positioning accuracy |
0.03/0.04mm |
X/Z repeated positioning accuracy |
0.01/0.015mm |
Machine size |
3200×1100×1600 |
Machine weight |
3700kg |
Product introduction
CK6180 cnc lathe horizontal heavy duty machine whole casting lathe bed, the head of a bed and lathe bed base adopts resin sand casting, artificial aging treatment, the whole machine has good stability, guide super audio quenching processing. Machine tool structural maturity, high precision, high efficiency, good seismic performance, aesthetically pleasing, safety equipment, reliable and good agreeableness.The CNC system is modular, easy to debug and easy to maintain.X, z-axis adopt high power servo motor, the performance is advanced, the reliability is strong.The machine is especially suitable for the machining of conical, circular curved surface, sine surface and quadratic curve.
Product features
Characteristics of nc lathe CK6180:
1.CK6180 cnc lathe horizontal heavy duty machine has a beautiful appearance, reasonable structure, wide use and convenient operation.
2. The heavy duty cnc lathe machine spindle adopts high precision rolling bearing support, and the rotary precision is high.The drag plate longitudinal adopts high precision ball screw drive, the dynamic performance is good, the positioning precision is high.
3. Machine tool guideway material is made of wear resistant cast iron and after super audio quenching, hardness HRC45 ℃ above, long-term stability can ensure the machining accuracy.
4. Considering the vibration of the car, the high strength base is designed, and the bed is raised with a wide drag plate, so it is especially suitable for strong turning.
5. Form of workpiece mounting: 1. Three-jaw chuck holder.2. Spring clamping holder for user selection
6. The automatic feeding rack can be selected according to the user's requirements.

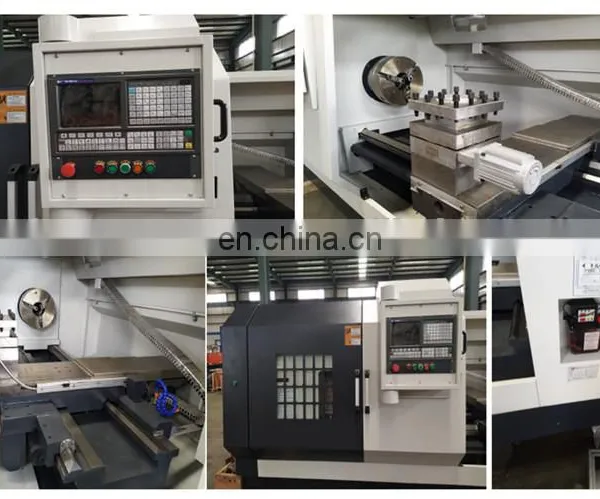

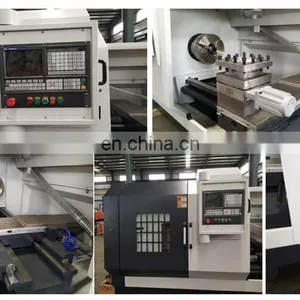

Basic configuration
The number 928TEA CNC system
Spindle frequency inverter speed control
High precision ball screw
Automatic centralized lubrication system
Save manual three-jaw chuck
Four station electric tool holder
floodlight
The cooling system
Separated type pick up box
Semi-enclosed protective cover
Product overview
Ck6180 cnc lathe horizontal heavy duty machine is a economic and practical type of universal machine tools, mature product structure, quality stable and reliable performance, widely used in automobile, petroleum, military industry and so on many kinds of mechanical processing industry.This series of machine tool variety specification is complete, can realize axial class, set class, dish class inside and outside surface, conical surface, arc, thread, boring hole, hinge hole processing, also can realize noncircular curve processing.High efficiency and good consistency in machine tool, especially suitable for many kinds of small and medium batch parts.It is easy to program and easy to operate, and it can be selected according to the user's requirements.
The operation state of CAK6180 CNC lathes shows that the electrical system should be operated with the indicator lamp, indicating that the electrical components should have status indication and fault indication, and have obvious safe operation identification.Operation of agreeableness, electrical system should reflect the humanized design, such as 6180 the operation of the CNC lathe parts adapted to human average height, distance, reflect the characteristics of the operation is convenient, comfortable, convenient for observation, especially touched by abrupt stop button at any time, ensure emergency rapid operation action;The color of CNC lathe is not only standard, but also beautiful and obvious.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1. The warranty period of our products is one year. If there is any damage in the warranty period, we will send it to you for free.We provide 24-hour online technical service and contact us at any time.
2. 365 days without false service, uninterrupted supply, pre-sales consultation, after-sales service and other technical support
We also offer free technical training and overseas services.
1. One year warranty for CNC machine tools, the number of products (GSK) warranty for three years, machine tools, from the date of final acceptance of our company to three packages of service products, the quality guarantee period is 12 months.
2. After the failure of the machine tool, after receiving the user information, it can accurately determine the cause of the failure and the handling measures, and immediately give the reply;We will be online 24 hours.We offer free training and overseas service.
3. After the warranty period, our company will provide maintenance services to users according to our standard of charge, and will be responsible for the cost of some services and services.
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
3. We have reliable quality, strict control of quality control, high quality products and high efficiency services. We have received the approval of customers, and our price is excellent.
4 have perfect service, equipped with professional service team, perfect after-sales service team, quickly solve the problem for you.
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
CK6180 cnc lathe horizontal heavy duty machine products can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
How can I contact you?
Through cell phone number and QQ, there is also email contact.
