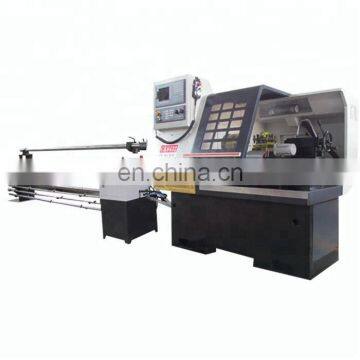

CK6432 small ecomonilc cnc auto lathe tool
| em | CK6432A |
| Max. swing dia. over bed | Φ360mm |
| Max. swing dia. over cross slide | Φ150mm |
| Processing length | 450mm/700mm |
| Dia. of spindle | Φ60mm |
| Spindle speed | 150-2500rpm |
| Taper of spindle bore) | MT6 |
| Tool holder | 4 station |
| Tool bar section | 20x20 mm |
| Main motor power | 4kw |
| X/Z axis torque | 4/4N.M |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 100mm |
| Tailstock taper | MT4 |
| Dimension | 1660/1940×1400×1700mm |
| Gross weight | 1250/1450kg |
Ck6432 small ecomonilc cnc auto lathe tool is a high-performance numerical control product designed by our company. The whole machine is equipped with the principle of all designed for the user with the features of complete functions, high processing efficiency, good precision and stability and high degree of automation. The machine adopts an independent spindle structure, The guide rail adopts the independent spindle structure, the guide rail adopts the linear linear guide structure, which ensures the high precision of processing and the long service life of the equipment. According to demand, users can be more familiar with CNC system.
1.Machining accuracy of higher parts. Due to the rigidity of the lathe, the manufacturing precision and the high precision of the knife, and it can be timely and accurate manual compensation, it can even compensate for automatic. So it can process high-precision parts.
2.Processing parts with small surface roughness, as it has a function of constant linear speed cutting.
3.Machining complex shape parts. CNC lathes have the function of circular interpolation, it can also be used to describe the curve, but also can process the list curve.
4.Processing with some special types of threaded parts. CNC lathes have the function of cutting thread. The general use of hard alloy blade, and can use a higher speed, so the turning out of the thread high precision, smooth surface.
5.Processing ultra-precision, ultra-low surface roughness parts.Disk, video recorder head, laser printer multi-faceted reflector, copier rotary drum, camera and other optical equipment, lenses and molds, and contact lenses, etc., they are suitable for processing in high-precision, high-performance CNC lathes.
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.1.Non-fumigation packaging, we use seaworthy plywood.
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
3. We have reliable quality, strict control of quality control, high quality products and high efficiency services. We have received the approval of customers, and our price is excellent.
4 have perfect service, equipped with professional service team, perfect after-sales service team, quickly solve the problem for you.
