Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > CK6140 High Quality China Flat Bed Cnc Lathe Machine Price
US$ 9,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lu Young
Place of Origin:
Shandong, China
Model Number:
CK6140A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Siemens CNC Lathe Machinery Metal Lathe Machine Tool Equipment CK6150AUS$ 12,000 - 20,000MOQ: 1 Set -
CK6150 High Precision Bench Flat Bed Lathe Fanuc Cnc Machine Price ListUS$ 9,000 - 15,000MOQ: 1 Set
-
CK6150 Automatic Low Cost Flat Bed Type Cnc Lathe Machine From ChinaUS$ 9,000 - 15,000MOQ: 1 Set
-
CK6180 Heavy Duty Horizontal Flat Bed Type Cnc Lathe Machine From China With Servo MotorUS$ 17,000 - 35,000MOQ: 1 Set
-
CK6140 Specification CNC Metal Turning Lathe MachineUS$ 8,000 - 12,000MOQ: 1 Set
Brand Name
Lu Young
Place of Origin
Shandong, China
Model Number
CK6140A
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
CK6140 High Quality China Flat Bed cnc Lathe Machine Price
Product Description
| Meddle CNC Lathe Machine CK6140 | ||||
| Item | CK6140A | CK6140B | ||
| Max. swing dia. over bed | Φ400mm | Φ400mm | ||
| Max. swing dia. over cross slide | Φ225mm | Φ245mm | ||
| Max. processing length(mm) | 750 | 1000 | 750 | 1000 |
| Dia. of spindle hole | Φ60mm | Φ52mm | ||
| Spindle speed | 150-2500rpm | 150~500rpm (low) 320~1600rpm (high) | ||
| spindle taper | MT6 | |||
| Tool holder | 4 station electric tool post(optional 6/8staion electric turret) | |||
| Tool bar section | 20X20 | 20X20 | ||
| Main motor power | 5.5KW | 5.5KW | ||
| X/Z axis fast feeding speed | 6/8 M/MIN | 6/8 M/MIN | ||
| X/Z axis position accuracy(mm) | 0.01/0.015 | 0.01/0.015 | ||
| X/Z-axis repeatability(mm) | 0.012/0.013 | 0.012/0.013 | ||
| Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | |||
| Tailstock sleeve dia. | 60 | 60 | 60 | 60 |
| Tailstock sleeve travel | 120mm | 120mm | ||
| Tailstock taper | MT4 | |||
| Dimension | 2120X1400X1700 | 2050x1400x1650 | ||
| 2370X1400X1700 | 2300X1400X1650 | |||
| Weight(kg) | 1800 | 1950 | 1850 | 2050 |
| Standard configuration: | Optinal configuration: | |||
| GSK928 CNC Controller | Siemens,Fanuc cnc controller system | |||
| Servo motor for X,Z axis, Servo driven | pneumatic chuck,hydraulic chuck | |||
| 3 Jaw Manual Chuck | pneumatic tailstock,hydraulic tailstock | |||
| 4 station electric tool post | 6 staion tool turret,8staiton tool turret | |||
| Auto lubrication system | Auto feeder system | |||
| lighting system | Chip conveyor | |||
| cooling system | ||||

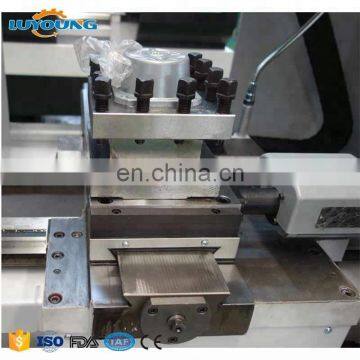

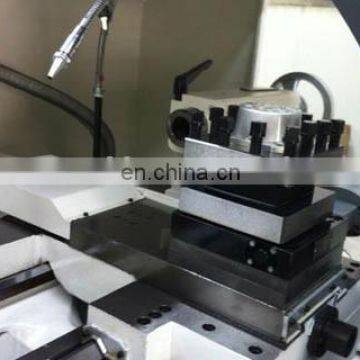

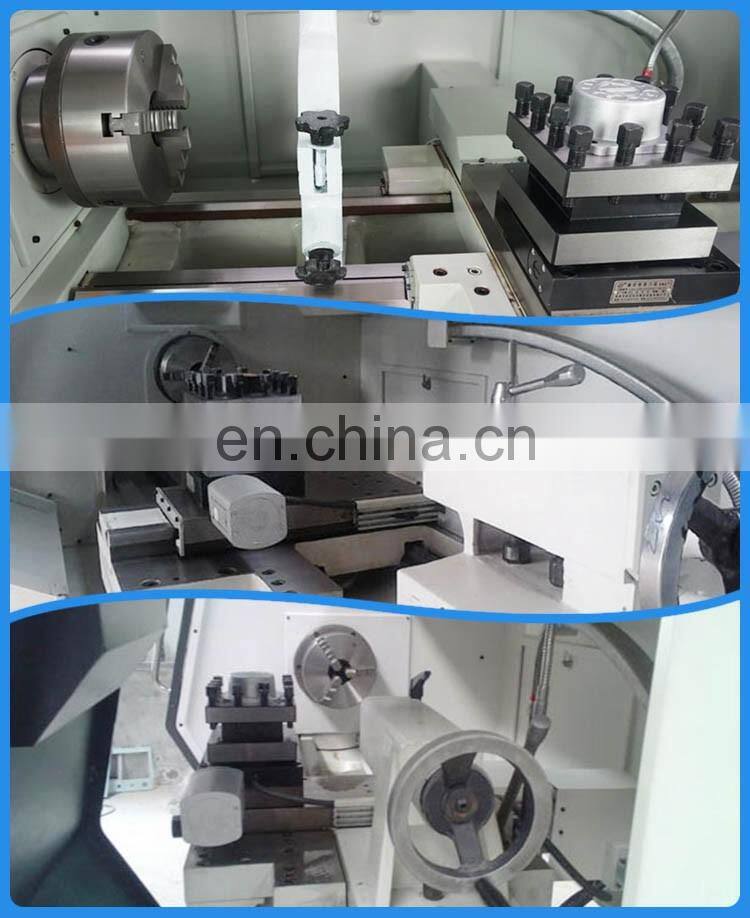

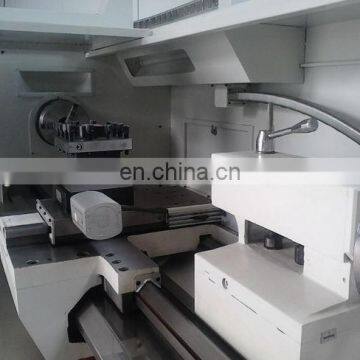

| Detail photo: | ||||
