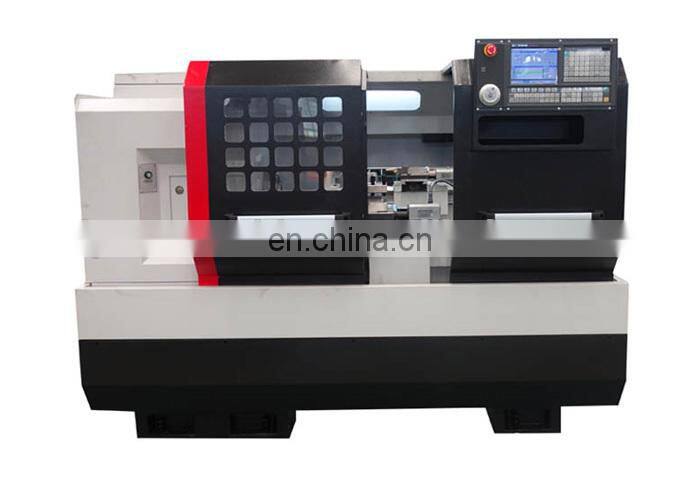

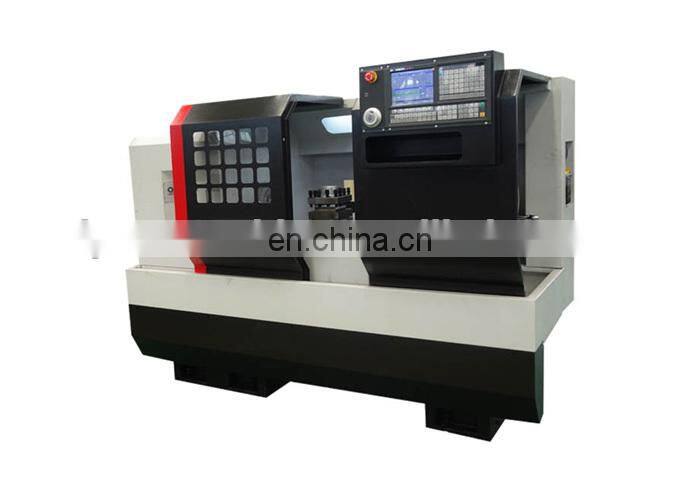

CK6140 Specification CNC metal turning lathe machine

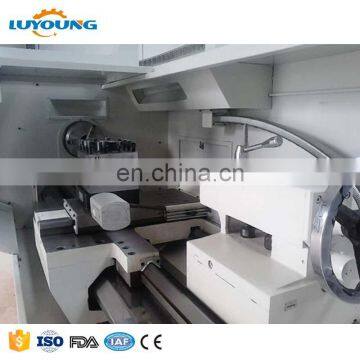

CK6140 Specification CNC metal turning lathe machine mechanical and electrical integration design,generous appearance beautiful, reasonable structure, easy to operate. Machine tool rails with wear-resistant cast iron,castings high temperature customization, repeated artificial aging treatment, the use of ultra-audio quenching, hardness above HRC50 ℃, long-term stability to ensure the accuracy of machine tools, Z-center screw, so that cutting force uniform ,Improve accuracy. High-quality cast iron cast bed foot so that the machine is more stable, more accurate.
Specification of CK6140 Specification CNC metal turning lathe machine
Meddle CNC Lathe Machine ck6140 | |||||
Item | CK6140A | CK6140B | |||
Max.swing dia. over bed | Φ400mm | Φ400mm | |||
Max. swing dia .over cross slide | Φ225mm | Φ245mm | |||
Max .processing length(mm) | 750 | 1000 | 750 | 1000 | |
Dia. Id spindle hole | Φ60mm | Φ52mm | |||
Spindle speed | 150-2500rpm | 150-500rpm(low) 320-1600rmp(high) | |||
Spindle taper | MT6 | ||||

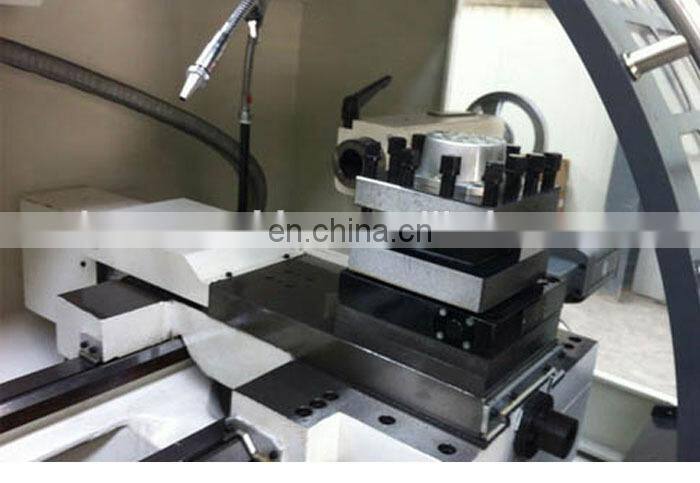

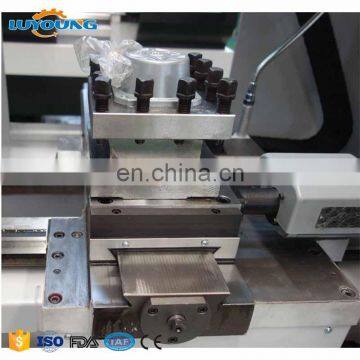

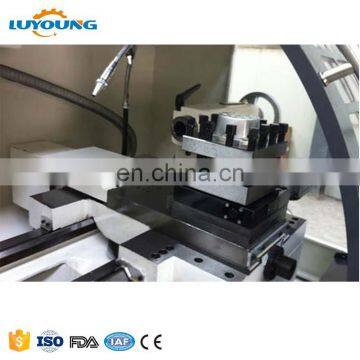

Tool holder | 4 station electric tool post(optional 6/8 station electric turret) | ||||
Tool bar section | 20*20 | 20*20 | |||
Main motor power | 5.5kw | 5.5kw | |||
X/Z axis fast feeding speed | 6/8 M/Min | 6/8M/Min | |||
X/Z axis position accuracy(mm) | 0.01/0.015 | 0.01/0.015 | |||
X/Z-axis repeatability | 0.012/0.013 | 0.012/0.013 | |||
Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | ||||
Tailstock sleeve dia. | 60 | 60 | 60 | 60 | |
Tailstock sleeve travel | 120mm | 120mm | |||
Tailstock taper | MT4 | ||||
Dimension | 2120*1400*1700 | 2050*1400*1650 | |||
2370*1400*1700 | 2300*1400*1650 | ||||
Weight(kg) | 1800 | 1950 | 1850 | 2050 | |
Standard configuration | Optional configuration |
GSK928 CNC controller | Siemens,Fanuac GSK controll system |
Servo motor for X,Z axis ,servo driven | Pneumatic chuck , hydraulic chuck |
3 Jaw Manual Chuck | Pneumatic tailstock , hydraulic tailstock |

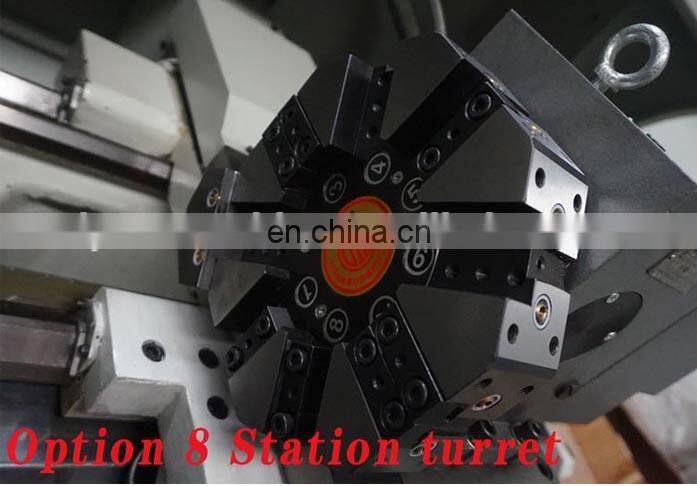

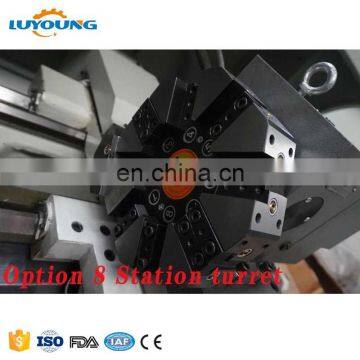

4 Station electric tool post | 6 station tool turret , 8 station tool turret |
Auto lubrication system | Auto feeder system |
Lighting system | Chip conveyor |
Cooling system |
Hot selling flat bed high precision CNC lathe machine for metal
CK0640 mini CNC lathe machine CK6432 small CNC lathe machine |
CK6130 small CNC lathe machine CK6132 small CNC lathe machine |
CK6136 middle lathe machine CK6140 middle lathe machine |
CK6150heavy duty CNC lathe machine CK6180 heavy duty CNC lathe machine |
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.

The products have exported more than 40 countries around the world, please look who choose us:

7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit
.
1.How to get the best quotation?
Tell me the model ,quantity and your requirements, then we will give you our best price to you.
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.
3.How about the MOQ(Minimum Order Quantity)?
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money.
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free.
