Supply YQ32 Top Quality hydraulic workshop press machine
Competitive Advantage:
1. CE, ISO Certification.
2. We can supply Steel horse brand or OEM for clients.
3. We can supply product line solution according to clients’ requirements.
4. Independent electrical control with PLC and TPC.
5. Adopted Rexroth Hydraulic valve system/Siemens Motor to ensure that the hydraulic system is not leaking.
6. The pressure, stroke, and time of pressure maintaining can be regulated.
7. High quality and performance with good price.
8. Safe and stable operation.
9. Support 7*24 remote service or locate service.
10. Supply maintenance service all life.
Applications:

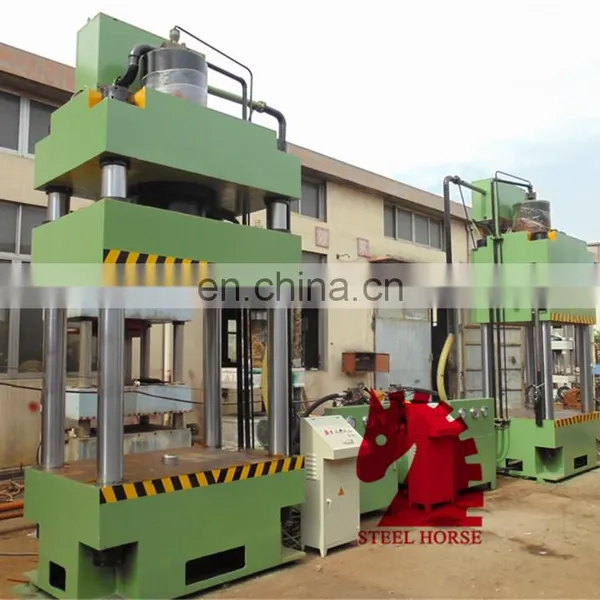

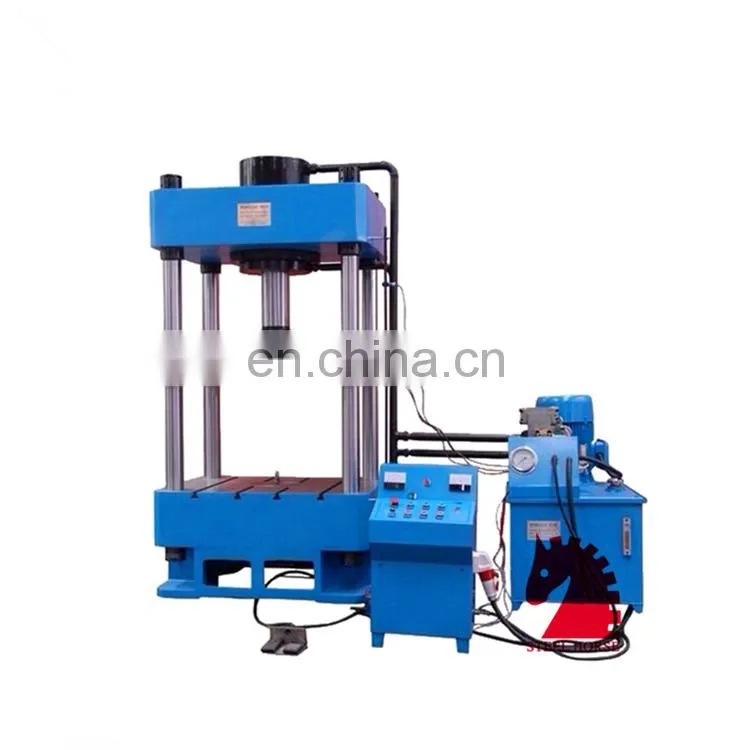

YQ32 Series Four-column Guide Molding Hydraulic Press is a kind of multifunctional machine which has high speed.
It mainly applies to the felds of machine tool, engineering machinery, bearings, washing machine, automobile parts,motor components and powder metallurgy.
It is suitable for the molding of plastic products, such as DMC and BMC.
Quick Detail:

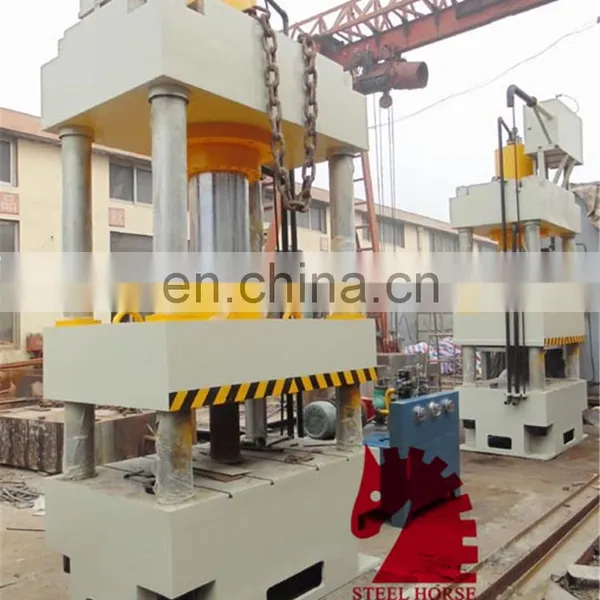

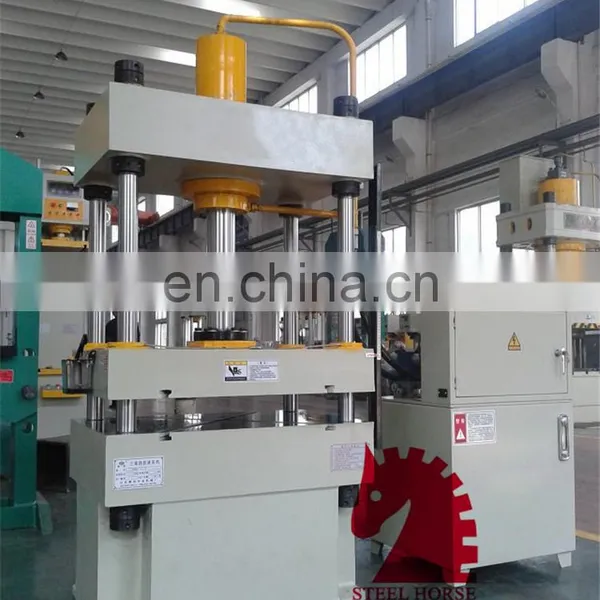

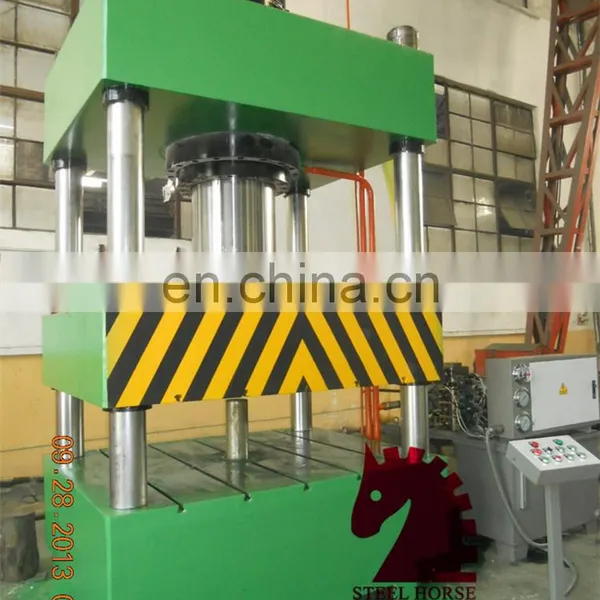

1. Three-beam, 4-column structure hydraulic press machine
2. Press machine can be customized with one cylinder, two cylinders, three cylinders and four cylinders.
3. Cold or heat hydraulic oil press machine
4. Three operation model, manual, semi-autoand auto; equipped hands operation button and emergency stop button
5. Apply todeep drawing, winding, stamping and pressing working process
6. Equipped Mitsubishi PLC and CNC control system
7. Apply to industry of steel parts, plastics moulding, powder parts compacting, and etc. .

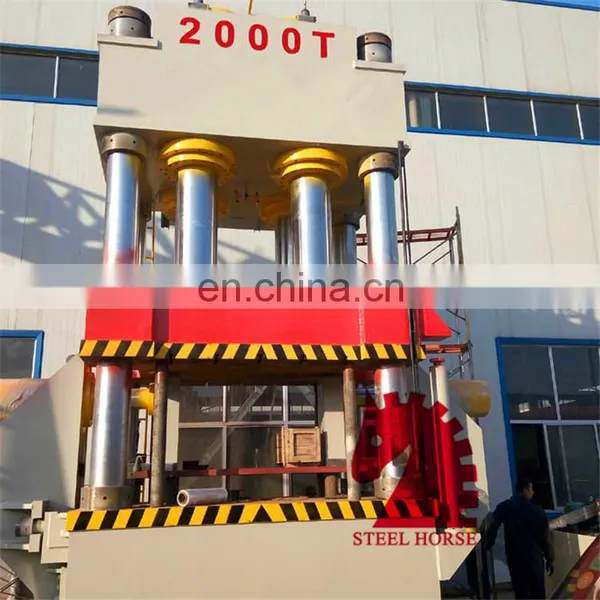

8. Hydraulic press model are from 100 ton, 160 ton, 200 ton,315 ton,500 ton, 630 ton, 1000 to 2000 ton.
9. Working speed, idle speed, and return speed can be adjustable
| Type | Unit | 45T | 63T | 100T | 160T | 200T | 315T | 400T | 500T | |
| Nominal Force | KN | 450 | 630 | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | |
|
The maximun working pressure of the fluid |
Mpa | 25 | 24.3 | 25.8 | 25.5 | 24.4 | 24.6 | 24.7 | 25 | |
| The maximum stroke of the slipper | mm | 350 | 500 | 500 | 500 | 700 | 800 | 800 | 900 | |
|
Maximum distance from the bottom plane of the slider to the worktable |
mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1400 | 1500 | |
| The size of the working platform | length | mm | 400 | 500 | 580 | 800 | 900 | 1260 | 1200 | 1400 |
| width | mm | 400 | 500 | 710 | 800 | 900 | 1260 | 1260 | 1400 | |
| Liftout stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 300 | 300 | |
| Slippe speed | down | mm/s | 40 | 50 | 100 | 100 | 100 | 100 | 100 | 100 |
| working | mm/s | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 10 | |||
| return | mm/s | 60 | 60 | 60 | 60 | 70 | 70 | 70 | 80 | |
| Machine size | length | mm | 1380 | 780 | 1800 | 1000 | 1200 | 1500 | 1560 | 4100 |
| width | mm | 100 | 500 | 1020 | 800 | 900 | 1200 | 1200 | 2420 | |
| height | mm | 2360 | 2430 | 3500 | 3350 | 3690 | 3900 | 4050 | 5380 | |
| The power for motors | Kw | 4 | 5.5 | 5.5 | 11 | 11 | 18.5 | 22 | 37 | |
| Total weight | T | 2.8 | 3.5 | 5 | 8.5 | 12 | 15 | 22 | 30 | |
