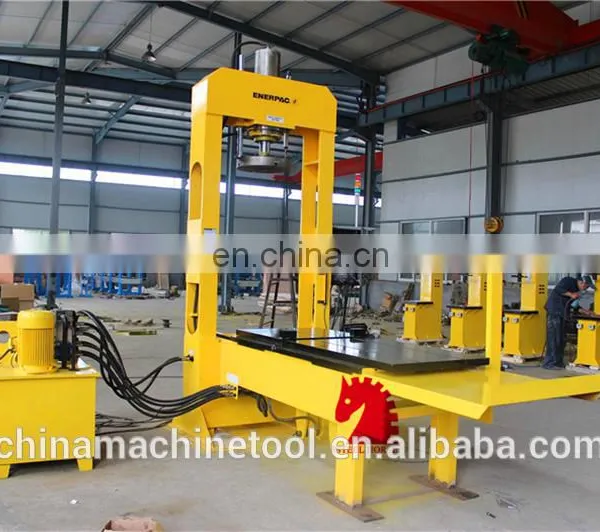

HP Factory supply automatic H type small hydraulic press machine
This series of hydraulic press can be used as shafts and other similar parts of the calibration process. Also can be used for shaft and sleeve parts of the press fit and a simple of the original drawing, forming and blanking industries.
The series of hydraulic linkage with hands and feet to manipulate, easy to operate. Hydraulic system use an integrated cartridge valve, compact structure, flexible and reliable action. Power system using double-pump speed, power consumption is small, low noisy.
Feature
1. computer optimized structure design,three beam and four pillar structure, simple,econimical and practical.
2. Hydraulic control system adopt cartridge valve intergrated system,reliable,long life and small hydraulic impact,reducing the link pipe and leak points.
3. Independent electrical controlling ing reliable,easy maintanance.
4. Adopt thr button centralized control,with adjustment for manual and semi-automatic operation.
5. Through operator panel to choose from,can be achieved given away two constant pressure forming process,and have features such as security during rolling.
6. Slider working pressure load and slow down quickly work into the travel range can be adjusted according to process requirments.
OPTIONAL INSTALLATION
1. Blanking damping installation

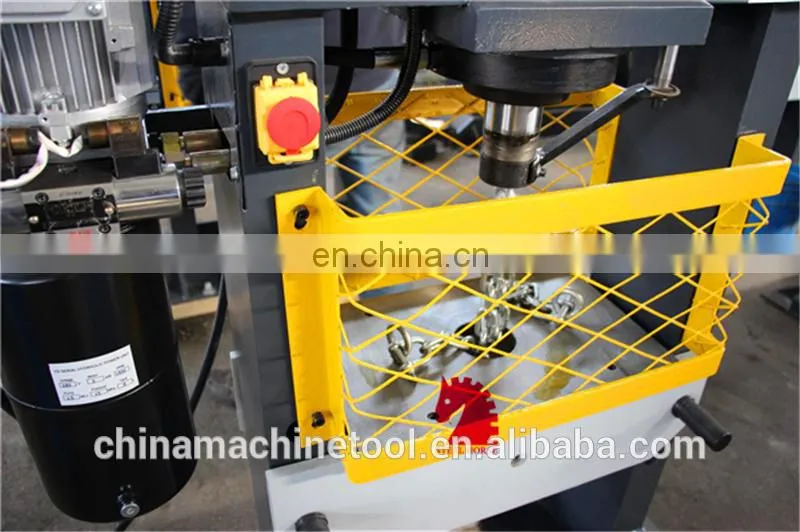

2. screen safety protection device
3. Touch display screen in industrial
4. Rapid clamp mold installation
5. Floating guideway and rolling bracket for changing mold
6. Slider locking installation
7. Removable table
8. Oil cooling installation
9. Ramming installtion
Model |
HP-30 |
HP-50 |
HP-63 |
HP-100 |
HP-150 |
Capacity (KN) |
300 |
500 |
630 |
1000 |
1500 |
Pressure (MPa) |
25 |
25 |
30 |
30 |
30 |
Travel (mm) |
200+270 |
220+405 |
220+405 |
250+405 |
250+405 |
Table size (mm) |
300*400 |
480*360 |
400*500 |
440*980 |
440*980 |
Dimension(mm) |
1160*550*1600 |
1500*650*1950 |
1500*650*1950 |
1730*730*2250 |
1730*730*2250 |
Weight(Kg) |
420 |
980 |
1020 |
1220 |
1350 |
Model |
HP-200 |
HP-300 |
HP-400 |
HP-500 |
HP-600 |
Capacity (KN) |
2000 |
3000 |
4000 |
5000 |
6000 |
Pressure (MPa) |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
Travel (mm) |
300+405 |
300+405 |
300+405 |
300+405 |
300+405 |
Table size (mm) |
980*500 |
700*1200 |
800*1200 |
900*1200 |
1000*1200 |
Dimension(mm) |
1940*950*2350 |
2100*950*2700 |
2300*1000*2900 |
2300*1000*2900 |
2300*1200*2900 |
Weight(Kg) |
2200 |
4200 |
5500 |
6500 |
9500 |
