CNC Milling Machine VMC5030
A. Standard Configuration and Specification
KND system ( you also can choose Siemens and FANUC control)
Umbrella type tool changer, 6 tools
Taiwan BT30 spindle unit
High precision ball screw
Fully-guarded type machine
self-lubrication, coolant system, lighting system
Items |
Details |
Unit |
VMC5030 |
Table |
Size |
mm |
630×280 |
Travel of 3 axis |
mm |
500/280/400 |
|
Max, table load |
kg |
300 |
|
T-slot |
Size |
mm |
3-14-80 |
Spindle |
Spindle taper |
|
BT30 |
Spindle nose to Column distance |
mm |
395 |
|
Spindle nose to table distance |
mm |
100-500 |
|
Max speed |
rpm |
8000 |
|
Motor power |
KW |
2.2 |
|
Spindle drive |
|
Belt transmission |
|
Accuracy |
Positioning accuracy |
mm |
0.015 |
Repeatability |
mm |
0.0075 |
|
Feeding speed |
Rapid traverse speed of X/Y/Z |
m/min |
12/12/6 |
Cutting feed of X/Y/Z |
m/min |
6/6/3 |
|
Magazine |
Capacity |
tools |
6 |
Max tool size |
mm |
120 |
|
Max tool weight |
kg |
6 |
|
General Parameters |
Weight |
Kg |
2100 |
Dimension |
mm |
1900*1800*1900 |
|
Power |
|
3 phase 380V, |

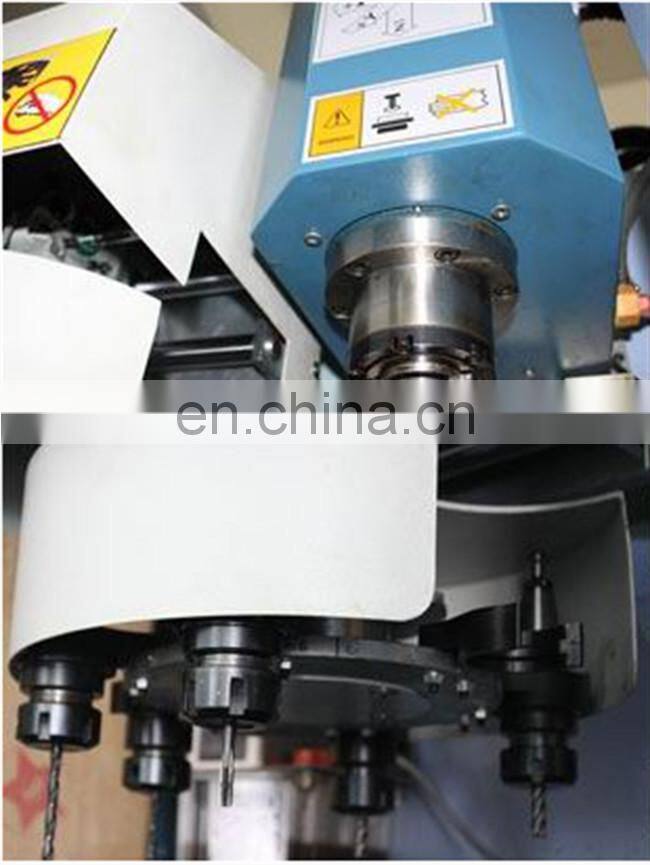

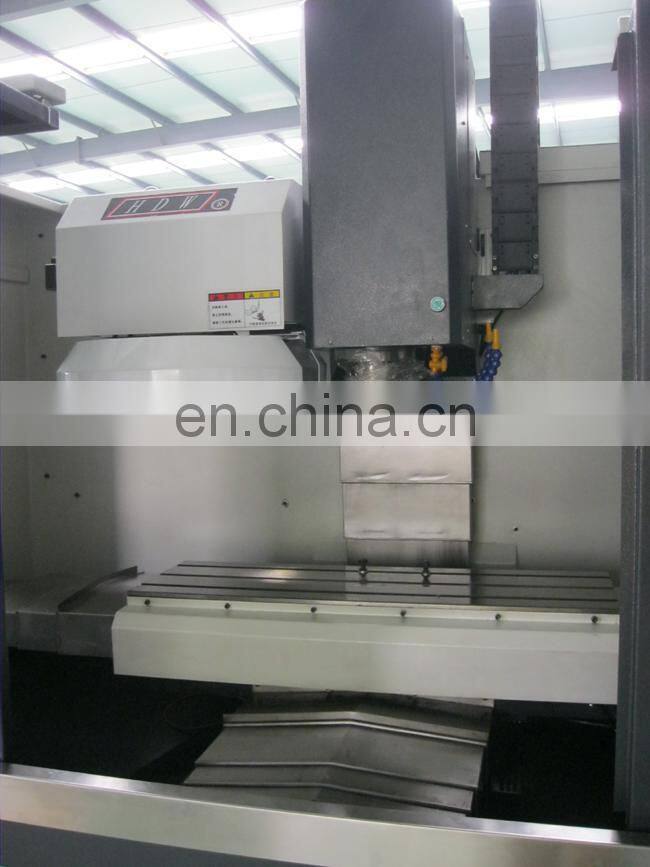

B. Details Display about CNC Milling Machine

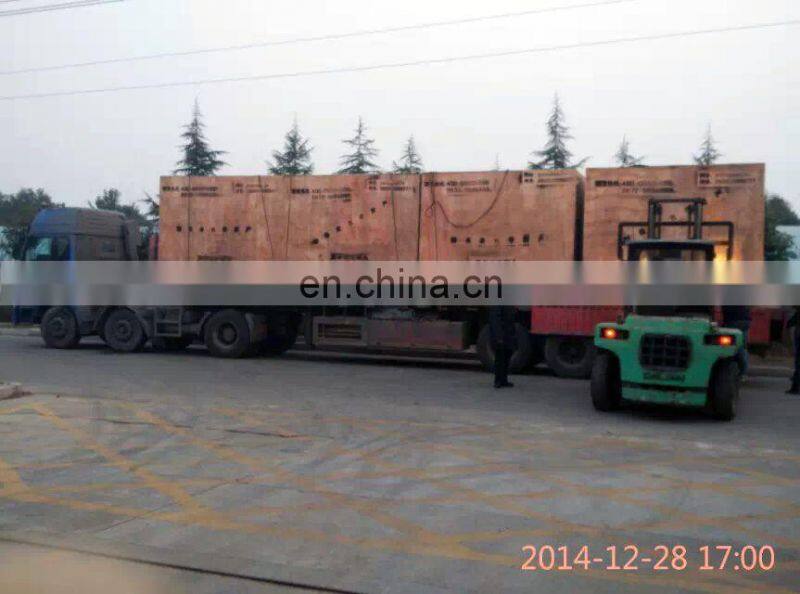

C. Workshop Scene and Standard Wooden Package for Milling Machine
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Make you satisfied is our business!
- The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
- Over 300 clients from more than 40 countries could tell you we are your realiable parter.
- We are professional cnc machine factory,our price could beat any competitors in china market .
- We supply professional solution to you based on your own process one by one.
- We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
- We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
- 7*24 hours Email or phone service.
