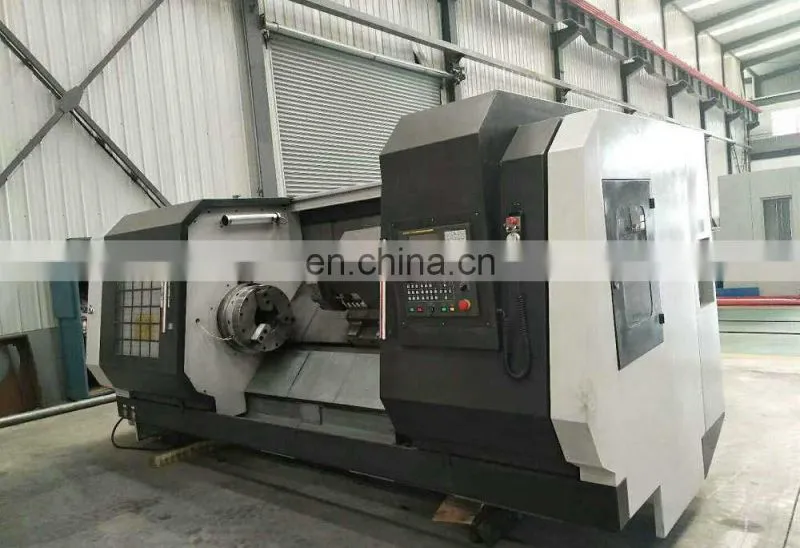

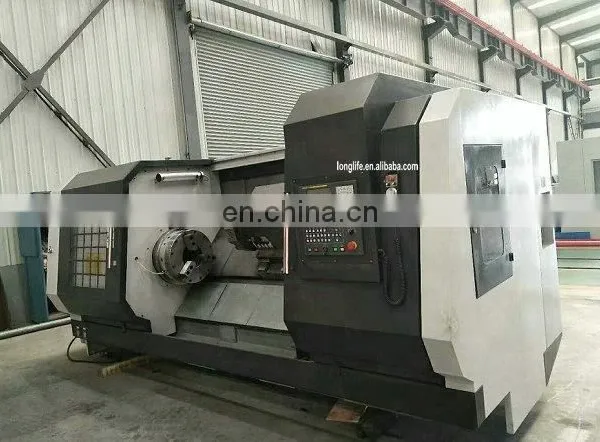

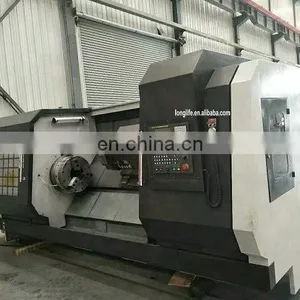

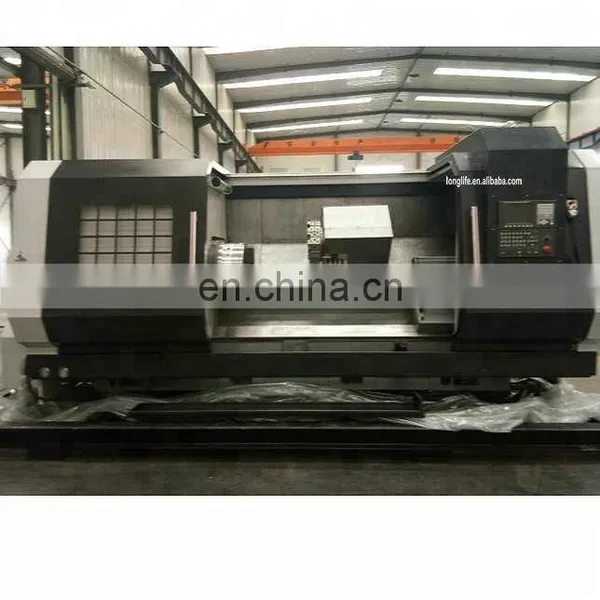

QK1422x2000 slant bed cnc pipe threading lathe
QK1320(Ø200mm) Flat Bed CNC Pipe Lathe
QK1313(Ø130mm) Flat Bed CNC Pipe Lathe
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
640 |
Max. length of workpiece to be machined |
mm |
920 |
Center distance |
mm |
2000 |
Max. swing over crossslide |
mm |
460 |
Spindle bore diametder |
mm |
225 |
Range of pipes to be machined |
mm |
60~220 |
Spindle speed steps |
|
stepless |
Spindle speed range |
rpm |
20~500 |
Main motor power(servo motor) |
kW |
22 |
X-axis servo motor(βis22/2000) |
kW |
2.5 |
Torque of X-axis servo motor |
|
20N.m/2000rpm |
Z-axis servo motor(βis22/2000) |
kW |
2.5 |
Torque of X-axis servo motor |
|
20N.m/2000rpm |
Center height |
mm |
1060 |
X axis max. travel |
mm |
350 |
Z axis max. travel |
mm |
1140 |
X axis rapid travel speed |
m/min |
4 |
m/min |
6 |
|
Tailstock sleeve diameter |
mm |
140 |
Tailstock sleeve taper |
|
MT #6 |
Sleeve travel |
mm |
200 |
Cross travel of tailstock |
mm |
±15 |
Water tank |
L |
90 |
Coolant pump power |
W |
370 |
Flow |
L/min |
25 |
Overall dimensions(L×W×H) |
mm |
5885x1950x2065 |
Gross/wet weight |
t |
12.5 |
S.N |
Name |
Remark |
1 |
3 jaw chuck |
2 sets |
2 |
hydraulic turret | 1 set |
3 |
tailstock |
1 set |
4 |
pipe stoper |
1 set |
5 |
tool kit |
1 set |
6 |
documents in English | 1 set |
