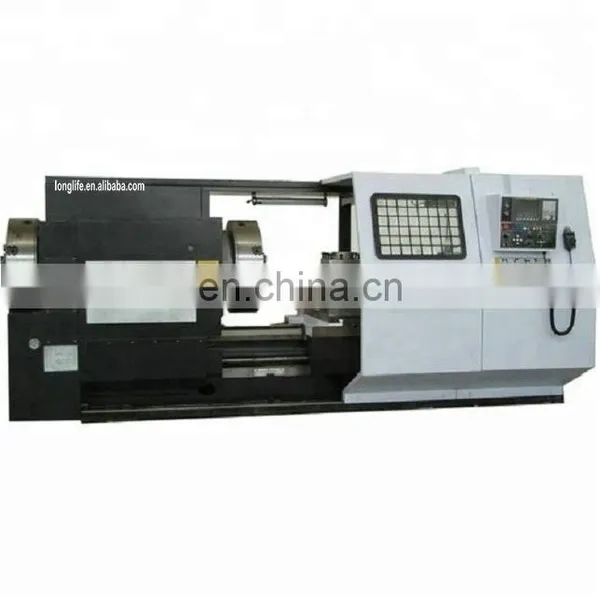

QK1350x1500 cnc oil pipe thread turning lathe
Item |
Unit |
Parameter |
Max. swing diameter over bed |
mm |
1200 |
Max. swing diameter over carriage |
mm |
710 |
Spindle bore diameter |
mm |
520 |
Pipes to be machined |
mm |
330~510 |
Spindle speed |
rpm |
8~190/3 shifts |
Center distance |
mm |
1500 |
Max. cross travel |
mm |
500 |
Max. longitudinal travel |
mm |
1250 |
Rapid feed rate |
mm/min |
4000 |
Chuck size |
mm |
1000 |
Main motor power |
kW |
22 |
Machine size |
mm |
5000×2200×2200 |
Machine weight |
kgs |
15000 |
No |
Item |
Remark |
1 |
4-jaw chuck |
2 sets |
2 |
Morse dead center |
1 pc |
3 |
Sizing block |
6 pcs |
4 |
Chuck wrench |
1 pc |
5 |
Tool post wrench |
1 pc |
6 |
Open-end wrench |
1pc/each |
7 |
Hex key wrench |
1pc/each |
8 |
Foundation bolts |
6 pcs |
9 |
Compact disk |
1 pc |
10 |
Communication wire |
1 pc |
11 |
Lighting system |
yes |
12 |
Cooling system |
yes |
13 |
Hand - held electronic pulse wheel |
yes |
14 |
CNC manual |
1 set |
15 |
Instruction manual |
1 set |
16 |
Certificate of conformity |
1 set |
17 |
Packing list |
1 set |
the surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. the slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
There are two types of speed change: Manual and step less.
Set up self lubrication system, and easy to maintain.
Pls send inquiry to me for optioanl accessories and other further information about such cnc pipe threding lathe machines.
