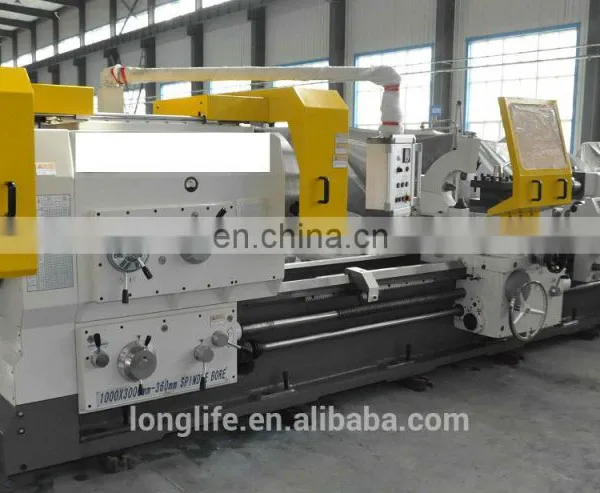

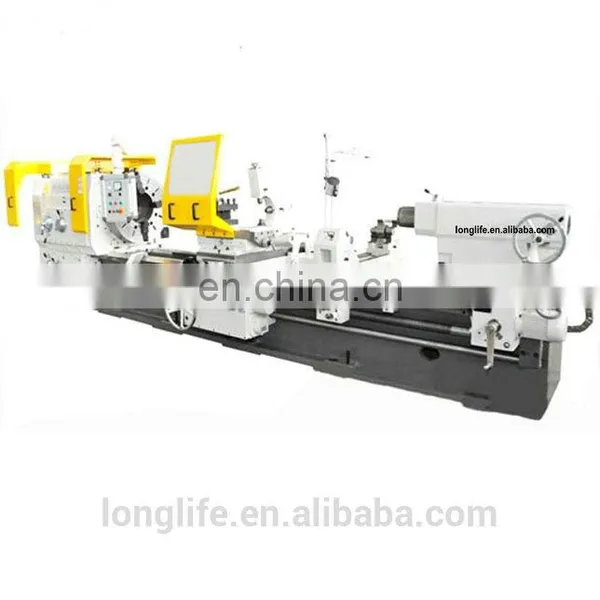

CW6636x2000 oil country lathe machine
mainly used for processing inner and outer pipe thread, metric thread and inch thread,
and can also undertake various turning works such as turning inner and outer cylindrical surface, conical surface and other revolution and end surface as general lathes.
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
1000 |
Max. swing over carriage |
mm |
640 |
Distance between two centers |
mm |
2000 |
Width of bed |
mm |
755 |
Diameter of spindle inner hole |
mm |
360 |
Range of spindle speed |
r.p.m. |
6.3 ~315 with 18 steps |
Min. clamped diameter of chuck |
mm |
240 |
Main motor power |
kW |
22 |
Kind of metric thread and pitch range |
mm |
1~120/ 44 kinds |
Kind of Whitworth thread and range |
|
30 ~ 1.125 teeth/in 37 kinds |
Kind of modular thread and range |
mm |
0.5 ~ 60/46 kinds |
Kind of radial thread and range |
D.P. |
0.5 ~60/46 kinds |
Toolpost |
|
With 4 way |
Tool section ( H×W ) |
mm |
45×45 |
Max. travel of tool post |
mm |
300 |
Max. travel of cross slide |
mm |
520 |
Rapid traverse of tool post longitudinal |
mm/min |
3740 |
Cross |
mm/min |
1870 |
Up tool post |
mm/min |
935 |
Diameter of tailstock sleeve |
mm |
160 |
Travel of tailstock sleeve |
mm |
300 |
Taper for taper hole of tailstock sleeve |
|
Metric No. 80 |
Machining length of taper scale |
mm |
300(Taper turning±1:4) |
S.N |
Name |
Size |
Note |
1 |
4-jaw manual chuck with steel body |
dia. of 800 mm |
2 sets |
2 |
Steady rest (fixed steady) |
range 50 to 470 mm with bearing type |
1 set |
3 |
Cooling system |
|
1 set |
4 |
Lighting device |
|
1 set |
5 |
Dead center |
|
1 piece |
6 |
Center sleeve |
|
1piece |
7 |
Set of machine operating tools |
|
1 set |
