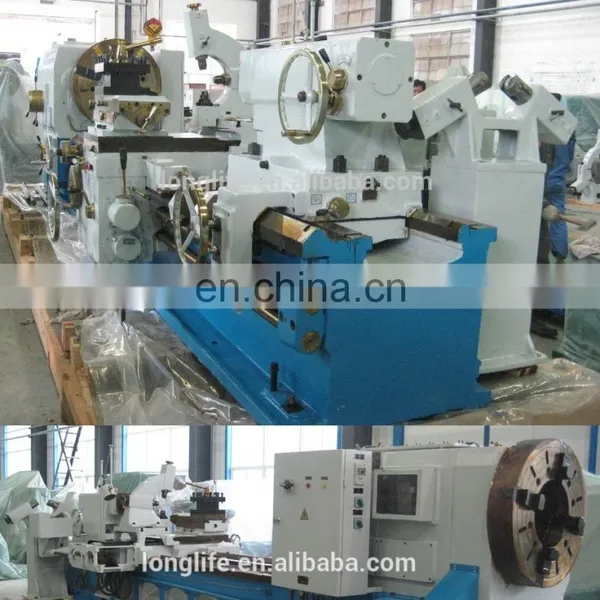

CW6663x3000 pipe thread cutting lathe machine
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
1400 |
Max. swing over carriage |
mm |
1100 |
Distance between two centers |
mm |
3000 |
Diameter of spindle inner hole |
mm |
635 |
Range of spindle speed |
r.p.m. |
5 ~250 |
Chuck diameter |
mm |
1250 |
Main motor power |
kW |
30 |
Kind of metric thread and pitch range |
mm |
1~120/ 44 kinds |
Kind of Whitworth thread and range |
|
30 ~ 1.125 teeth/in 37 kinds |
Kind of modular thread and range |
mm |
0.5 ~ 60/46 kinds |
Kind of radial thread and range |
D.P. |
0.5 ~60/46 kinds |
Tool section ( H×W ) |
mm |
45×45 |
Rapid traverse of tool post longitudinal |
mm/min |
1870 |
Cross |
mm/min |
935 |
Diameter of tailstock sleeve |
mm |
160 |
Travel of tailstock sleeve |
mm |
300 |
Machining length of taper scale |
mm |
300(Taper turning±1:4) |
S.N |
Name |
Size |
Note |
1 |
4-jaw manual chuck with steel body |
|
2 sets |
2 |
Steady rest (fixed steady) |
|
1 set |
3 |
Cooling system |
|
1 set |
4 |
Lighting device |
|
1 set |
5 |
Dead center |
|
1 piece |
6 |
Center sleeve |
|
1piece |
7 |
Set of machine operating tools |
|
1 set |
Such heavy duty lathe machines have following features:
1. This machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on.
Also and can also undertake various turning works such as turning inner and outer cylindrical surface, conical surface and other revolution and end surface as general lathes.
2. can also be used for drilling, boring trepanning etc.
3. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.
4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
5. mainly used for:
5.1. I.D. & O.D. cylindrical turning,
5.2. end face turning,
5.3. I.D. & O.D. cone turning,
5.4. grooving,
Pls send inquiry to me for optioanl accessories and other further information about such pipe thread cutting lathe machines.
