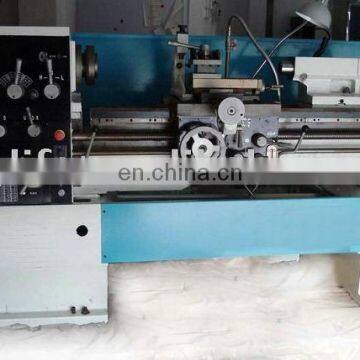

CDL6146x1500 conventional bench lathe machine
CDS6266(Ø660mm) Conventional Horizontal Lathe Machine
Standard: spindle head is C6, Spindle hole: Φ48 mm
Spindle head is D6, spindle hole: Φ52 mm;
Guide rail width:300mm;
Guide rail hardness:HRC50, Depth1.5mm;
Hardened and ground guide ways;
Maximum load capacity between two centers: 300kg
Standard: the lathe is equipped with left-handed wheel;
Right-handed wheel shall be informed specially when placing order;
Three boxes are all self inside lubricating;
Machine tool bed box are non-clutch;
CE Certificated are not provided;
1. I.D. & O.D. cylindrical turning,
2. end face turning,
3. I.D. & O.D. cone turning,
4. grooving,
5. threading;
Specifications |
Unit |
Parameter |
Max swing over bed |
mm |
460 |
Max swing over carriage |
mm |
230 |
Center distance |
mm |
1500 |
Max swing in gap(optional) |
mm |
735 |
Width of bed |
mm |
300 |
Spindle nose |
|
D8 |
Spindle bore |
mm |
82 |
Taper of spindle bore |
|
1:20(F 90) |
Spindle speeds |
rpm |
16~1600 (12 speed) |
Range of inch threads |
TPI |
2~56 |
Range of metric threads |
mm |
0.5~14 |
Range of module threads |
mm |
0.5~14 |
Range of Di metrical pitch thread |
D.P |
2~56 |
Longitudinal feed |
mm/rev |
0.06~0.82 (0.002"~0.032"/r) |
Cross feed |
mm/rev |
0.017~0.242 (0.007"~0.0095"/r) |
Lead screw diameter |
mm |
36 |
Pitch of lead screw |
mm |
6 |
Taper of tailstock quill |
|
M4 |
Travel of tailstock quill |
mm |
150 |
Diameter of tailstock quill |
mm |
60 |
Power of main motor |
kW |
5.5 |
Power of coolant motor |
W |
90 |
Net weight |
kg |
|
Gross weight |
kg |
|
Packing size |
mm |
|
S.N |
Name |
Size |
1 |
3-jaw chuck |
Φ250mm (For CDL6146) |
2 |
Steady rest |
Φ80~Φ200mm (For CDL6146) |
3 |
Follow rest |
Φ20~Φ90mm (For CDL6146) |
4 |
Catch plate |
Φ250mm |
5 |
Dead center |
2 sets |
6 |
Center sleeve |
1 set |
7 |
Wrench Tool |
1 set |
8 |
Oil gun |
1 set |
9 |
Foundation bolt |
1 set |
10 |
Instruction Manual |
1 set |
11 |
Certificate of Conformity |
1 set |
12 |
Packing List |
1 set |
13 |
Manual for Spare Parts |
1 set |
Pls send inquiry to me for optioanl accessories and other further information about such conventional bench lathe machines.
Payment Term:
1. 30% down payment, 70% by T/T before shipment;
2. 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
1. 1 Set;
2. ≥2 sets, there will be much discounts.
Warranty:
1. Normally, 12 months for parts as of delivery of the machines;
Shipment:
1. For machine itself, by sea or train(inland countries).
2. For documents, by international express. eg DHL, TNT or EMS.
