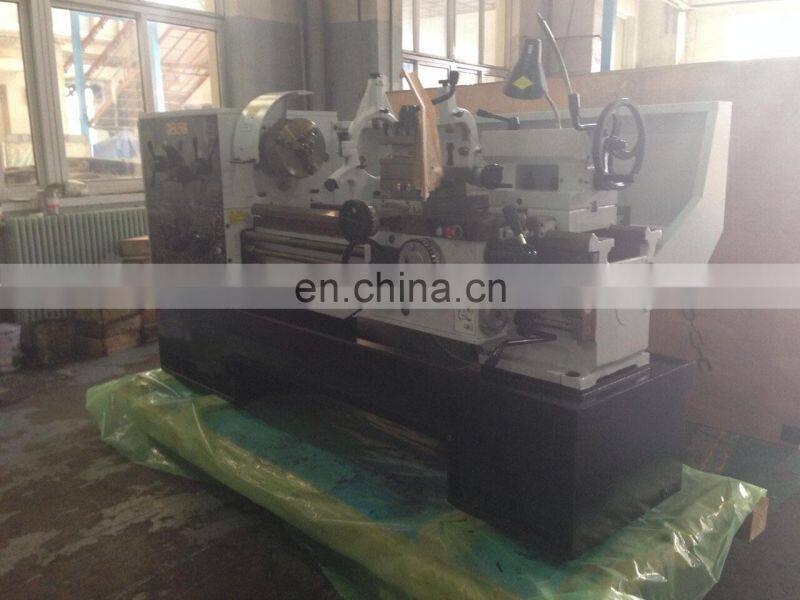

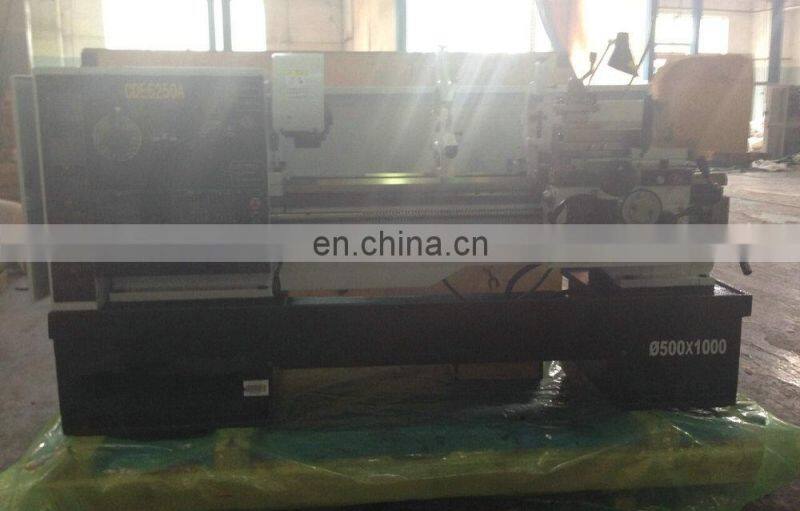

CDE6150x2000 gap bed lathe machine
CDS6256(Ø560mm) Conventional Horizontal Lathe Machine
Such gap bed lathe machine are mainly for:
It can machine inner circle, outer circle, and end and head surface, taper surface.
Gap lathe can process the deformation parts.
Function is including the drilling and reaming. Metric, inch, diametrical pitch, module thread.
Specifications |
Unit |
CDE6150x2000 lathe machine |
Max. swing over bed |
mm |
500 |
Max. swing over carriage |
mm |
290 |
Max. swing over gap(optional) |
mm |
760 |
Width of guide way |
mm |
394 |
Dia. of spindle bore |
mm |
52 |
Distance between centers |
mm |
2000 |
Taper of center sleeve |
|
Morse No.6 |
Spindle speed |
rpm |
11~1400 /22speeds |
Longitudinal feed |
mm/rev |
0.035-2.842 |
Cross feed |
mm/rev |
0.009-0.804 |
Metric thread |
mm |
0.5-240(66) |
Inch thread |
tpi |
80-1/4(49) |
Module thread |
mm |
0.25-120(57) |
Diametrical pitch thread |
DP |
160-7-16 (50) |
Section of tool shank |
mm |
25×25 |
Travel of top slide |
mm |
150 |
Max. travel of cross slide |
mm |
348 |
Pitch of longitudinal lead screw |
mm |
12 |
Travel of tailstock center sleeve |
mm |
150 |
Diameter of tailstock center sleeve |
mm |
75 |
Taper of tailstock center sleeve |
Morse |
Morse No.5 |
Main motor power |
kW |
7.5kW(50Hz) /5.5kW(60Hz) |
Such gap bed lathe machine has following features:
- Spindle nose: C6-type (No D-type spindle nose)
- Chucktype: Direct-coupled;
- New improved direct-coupled 3-jaw, 4-jaw chuck;
- The bed is made of high-grade cast iron, the guide way is super audio frequency quenching.
- Guide rail width: 394mm;
- Guide rail hardness: HRC50,Depth 1.5mm
- Max load capacity between two centers: 500kg;
- Provide left and right wheel,
- Apron with rapid shift handle in longitudinal and cross direction;
- Special indication is required iftailstock sleeve is with a scale;
- Mechanical clutch is used for such lathe. No foot brake, No electrical cabinet;
- Direct-coupled chuck;
