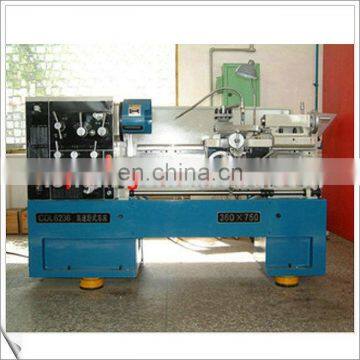

Help CenterCDL61 Series Metal Lathe Machine/tornos Metal
Related Products
-
CDL6146 Series Metal Lathe Machine/tornos MetalUS$ 4,000 - 7,000MOQ: 1 Set -
CDL6146x750 Conventional Lathe Machine PriceUS$ 4,000 - 7,000MOQ: 1 Set
-
CDL6246x750 Conventional Lathe Machine PriceUS$ 4,000 - 8,000MOQ: 1 Set
-
CDL6246x1000 Horizontal Lathe Machine PriceUS$ 4,000 - 8,000MOQ: 1 Set
-
CDL6246x1500 Gap Bed Lathe Machine PriceUS$ 4,000 - 8,000MOQ: 1 Set
1. Standard: spindle head is C6, Spindle hole: Φ48 mm
2. Spindle head is D6, spindle hole: Φ52 mm;
3. Guide rail width:300mm;
4. Guide rail hardness:HRC50, Depth1.5mm;
5. Hardened and ground guide ways;
6. Maximum load capacity between two centers: 300kg
7. Standard: the lathe is equipped with left-handed wheel;
8. Right-handed wheel shall be informed specially when placing order;
9. Three boxes are all self inside lubricating;
10. Machine tool bed box are non-clutch;
11. CE Certificated are not provided;
Item |
CDL6136 |
CDL6141 |
CDL6146 |
CDL6151 |
|
specification | |||||
Max swing over bed |
360mm |
410mm |
460mm |
510mm |
|
Max swing over carriage |
180mm |
230mm |
270mm |
320mm |
|
Center distance |
750mm 1000mm 1500mm |
||||
Max swing in gap(optional) |
590mm |
640mm |
675mm |
735mm |
|
Width of bed |
300mm |
||||
Head stock | |||||
Spindle nose |
C6/D6 |
D6 |
D8 |
||
Spindle bore |
48mm |
52mm |
82mm |
||
Taper of spindle bore |
M6 |
1:20(F 90) |
|||
Spindle speeds |
32-2000rpm (12 speed) |
16-1600rpm (12 speed) |
|||
Thread | |||||
Range of inch threads |
2-56TPI |
||||
Range of metric threads |
0.5-14mm |
||||
Range of module threads |
0.5-14mm |
||||
Range of Di metrical pitch thread |
2-56 D.P |
||||
Longitudinal feed |
0.06-0.82mm/rev(0.002"-0.032"/r) |
||||
Cross feed |
0.017-0.242mm/rev(0.007"-0.0095"/r) |
||||
Lead screw diameter |
36mm |
||||
Pitch of lead screw |
6mm |
||||
Tailstock | |||||
Taper of tailstock quill |
M4 |
||||
Travel of tailstock quill |
150mm |
||||
Diameter of tailstock quill |
60mm |
||||
Motor | |||||
Power of main motor |
3/4.5kW(4/6HP) |
5.5kW |
|||
Power of coolant motor |
90W(0.125HP) |
90W |
|||
Net weight |
1228kg 1353kg 1593kg |
1630 2010 2220kg |
1660 2040 2250kg |
||
Gross weight |
1378kg 1553kg 1893kg |
1780 2555 2720kg |
1810 2585 2750kg |
||
Packing dimensions |
Center.D. |
WOODEN CASES |
STEEL PALLET |
||
750mm |
2230×1090×2000mm |
2070×1100×1780mm |
|||
1000mm |
2480×1090×2000mm |
2300×1100×1780mm |
|||
1500mm |
2980×1090×2000mm |
28570×1100×1780mm |
|||
Pls send inquiry to me for optioanl accessories and other further information about such lathe machines.
