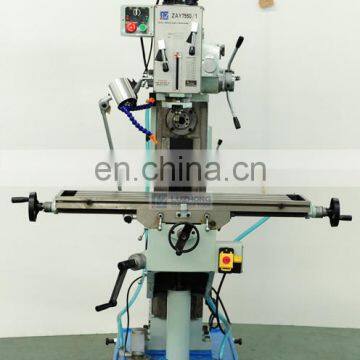

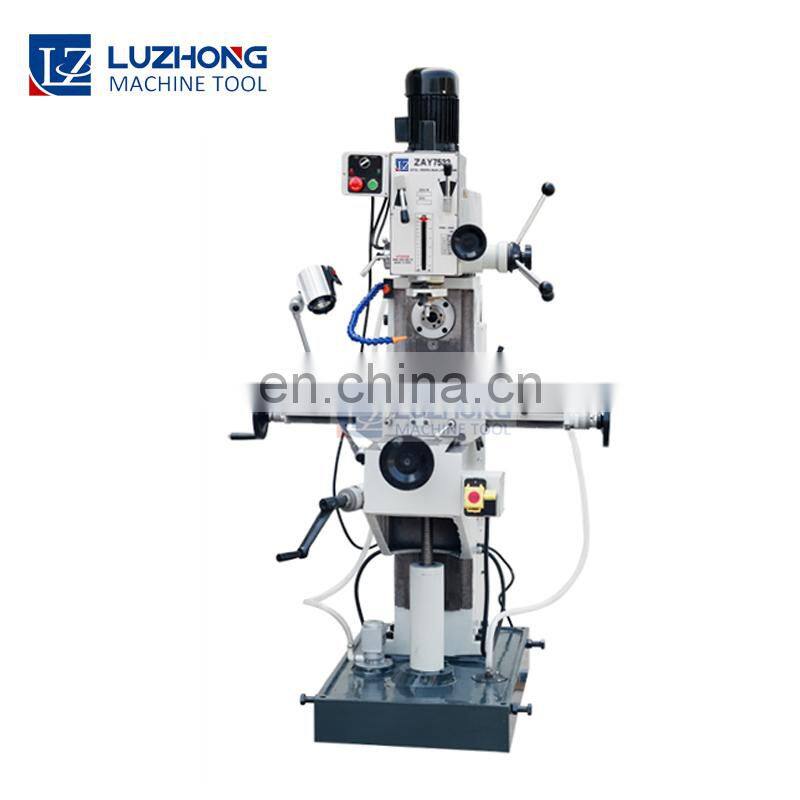

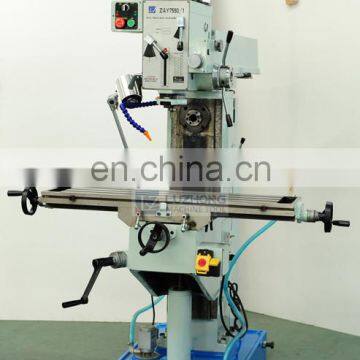

Vertical ZAY7532/1 ZAY7540-1 ZAY7550-1 Portable Drilling and milling machine
The main performance characteristics:
Vertical milling head can be moved forward or backward
Vertical milling head can swivel 90 vertically and 360 horizontally.
Adjustable atops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical Specifications:
ITEM |
ZAY7532/1 |
ZAY7540/1 |
ZAY7550/1 |
Max.drilling capacity |
32mm |
40mm |
50mm |
Max.milling capacity(end/face) |
25/100mm |
32/100mm |
32/100mm |
Swivel angle of headstock(perpendicular) |
±90° |
±90° |
±90° |
spindle taper(end/face) |
M.T.3 M.T.4 |
M.T.4 |
M.T.4 |
Distance from spindle nose to worktable surface |
80-480mm |
80-480mm |
80-480mm |
spindle travel |
130mm |
130mm |
130mm |
beam travel |
500mm |
500mm |
500mm |
step of spindle speed(end/face) |
612 |
612 |
612 |
Range of spindle speed(end/face) 50HZ |
90-1600 /38-1280 (r/min) |
90-1600 /38-1280 (r/min) |
90-1600 /38-1280 (r/min) |
60HZ (4 poles) |
110-1920 /45-1540 (r/min) |
110-1920 /45-1540 (r/min) |
110-1920 /45-1540 (r/min) |
Step of spindle auto-feeding(end/face) |
3 |
3 |
3 |
Range of spindle auto-feeding(end/face) |
0.12 0.18 0.25 |
0.12 0.18 0.25 |
0.12 0.18 0.25 |
Worktable size |
800×240mm |
800×240mm |
1000×240mm |
Forward and afterward travel of worktable |
300mm |
300mm |
300mm |
Left anf right travel of worktable |
585mm |
585mm |
785mm |
Vertical travel of worktable |
400mm |
400mm |
400mm |
Min.distance from spindle axis to column |
290mm |
290mm |
290mm |
Power(end/face) |
0.75KW(1HP)/1.5KW |
1.1KW(1.5HP)/1.5KW |
1.5KW(2HP)/1.5KW |
Cooling pump power |
0.04KW |
0.04KW |
0.04KW |
Net weight/Gross weight |
930kg/1030kg |
933kg/1033kg |
950kg/1050kg |
Packing size |
1020×1350×1850mm |
1020×1350×1850mm |
1220×1350×1850mm |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history . Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
