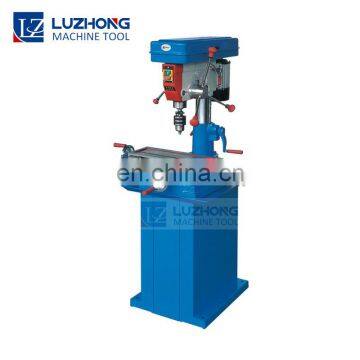

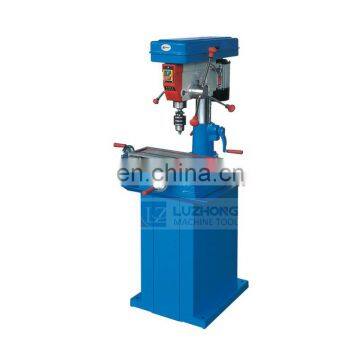

Vertical ZX7016 Drilling and milling machine With Lowest Price
The main performance characteristics:
Reinforced type gear, transmission torque large
B1 type optional2-speed motor, spindle speed range widely.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
Specifications |
ZX7016 |
Max. Drilling capacity (mm) |
16 |
Max. face mill capacity (mm) |
40 |
Diameter of vertical milling (mm) |
10 |
Spindle travel (mm) |
80 |
Distance spindle axis to column generating line (mm) |
182 |
Max. Distance spindle nose to table (mm) |
360 |
Spindle taper |
MT2 |
Spindle speeds range (r/min) |
320~3300 |
Spindle speeds series |
12 |
Dimension of worktable surface (mm) |
420×152 |
Table travel (mm) |
230×120 |
Overall height (mm) |
900 |
Main motor (W) |
550 |
G.W/N.W(Kg) |
100/75 |
Packing dimension (cm) |
65×58×77 |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history . Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
