Milling Machine X5050 Used Plano Milling Machine
- 100 Set / Sets per Month
- Any port in China Milling Machine X5050 Used Plano Milling Machine
- T/T Credit Card
- X6232 Universal Swivel Rotary Head Milling Machine price
- X6432 Hmt Manual Rotary Head Hobby Milling Machine for Metal
- X6432 X6436 Universal DRO Gear Swivel Head Milling Machine with Totary Table
- China Metal X715 Bed Type Universal Milling Machine for sale
- China Swivel Head X716 Bed Type Universal Milling Machine for sale
- China Vertical Turret Milling Machine X6332C Milling Machine for sale
Product Details
Brand Name: | Luzhong Machine | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description

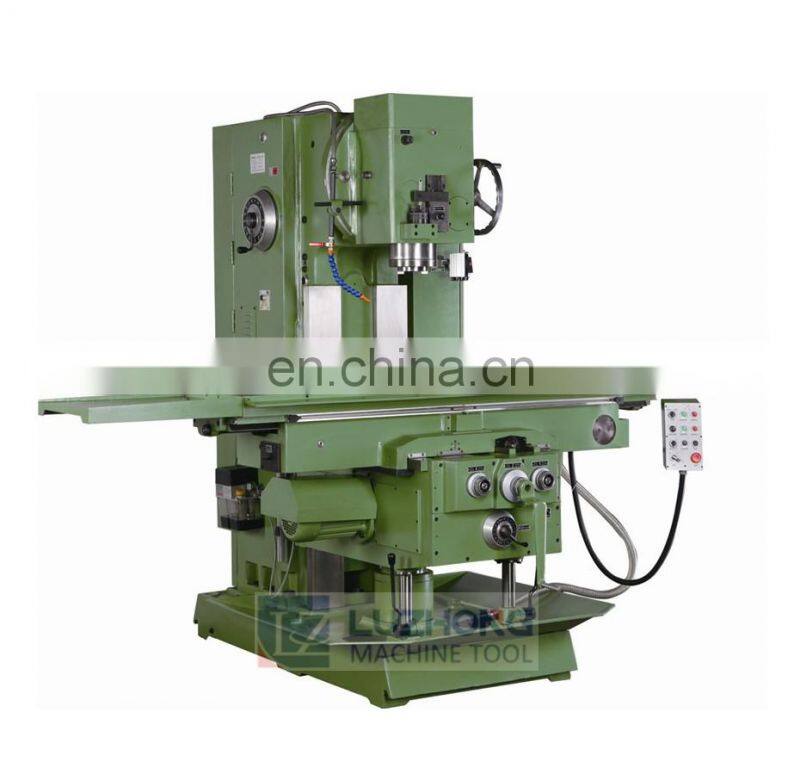

Milling Machine X5050 Used Plano Milling Machine
The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:
Specifications | Units | X5050 |
Table size | mm | 2000x500 |
T-type slot numbers / width /space | mm | 5-18-80 |
Max. load of table | kg | 1500 |
Longitudinal travel (manual/auto) | mm | 1530/1520 |
Transverse travel(manual/auto) | mm | 360/345 |
Vertical travel (manual/auto) | mm | 630/610 |
Cutting feed speed | mm/min | X.Y:16-800. Z:5-250 |
Rapid feed speed | mm/min | X.Y:3000..Z:1000 |
Spindle travel | mm | 90 |
Distance between spindle nose and table surface | mm | 95-725 |
Max. swivel angle of table |
| ±45° |
Spindle speed step | steps | 18 |
Spindle speed range | rpm | 45-1800 |
Spindle motor power | KW | 15 |
Overall dimensions | mm | 2250x3200x2340 |
Machine weight | Kg | 5200 |
Vertical Milling Machine | Swivel Head Milling Machine | Turret Milling Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
